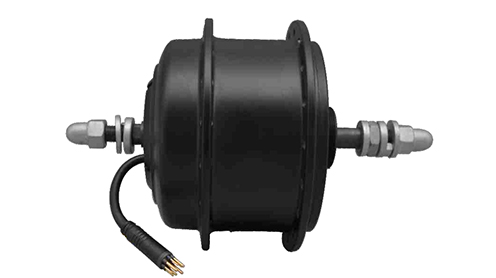

DGW10R-Rear Drive Motor-City Bike
This kind of motor is a small size brushless motor rear, the small electric hub motor is strong enough to ride on rough mountain, and the classification of waterproof is IPX5.
Main parameter of DGW10R-Rear Drive Motor-City Bike
|
specification |
parameter |
|
Driving position |
Rear |
|
Wheel size |
16in-28in |
|
Spoke |
36holes 12G/13G |
|
Rated power |
180W~250W |
|
Rated voltage |
24V~36V |
|
Max.torque |
≥35N.m |
|
Efficiency |
≥80％ |
|
Cable side |
Left |
|
Number of magnet |
16 |
|
Reduction gear ratio |
1: 6.28 |
|
Installation dimension |
135mm |
|
Inside speed sensor |
1~6 |
|
Hall sensor |
With/Without |
|
Free wheel |
Screw 6-7S |
|
Brake |
V-brake |
|
Classification of waterproof |
IPX5 |
|
Weight |
2.2Kg |
Drawing of DGW10R-Rear Drive Motor-City Bike
As a china motor dc 500w factory, we can offer sorts of electric hub motor china for sale, if you are interested, please leave us a message.
