Desand Cyclone and Germ Cyclone
Desand Cyclone

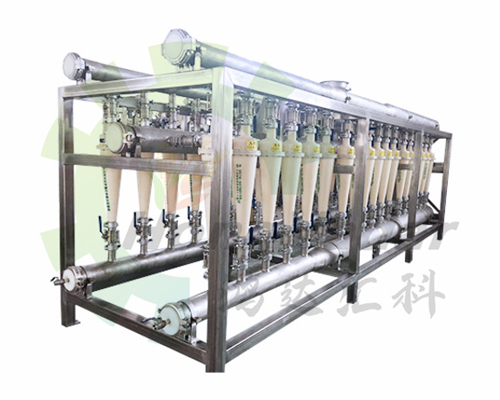

HVD-CY-DS series desand cyclone is mainly used in starch production to remove sediment, metal particles, and other impurities in starch milk. The desanding hydrocyclone is also suitable for removing heavy phase impurities in other fluids. There are two kinds of cyclone particle separator bodies: stainless steel & ceramic and high-strength wear resistant plastic. Advanced design, easy installation, and high efficiency of sand removal.
Desand Cyclone Working Principle
Under the pressure of 0.5MPa, the starch milk enters along the tangent direction of the desander and generates centrifugal force due to the rotary movement. Due to the different specific gravity of the material, the heavy phase impurities such as sand are thrown to the periphery and discharged along the inner wall from the bottom. And the starch milk overflows through its upper overflow pipe into the next process.
Desand Cyclone Technical Parameters
HVD-CY-DS series desand cyclone
Model |
Capacity, m3/h |
Feed pres., MPa |
Desand efficiency, % |
Remarks |
HVD-CY-DS1 |
30-35 |
0.5 |
≥97 |
2+1 cyclones |
HVD-CY-DS2 |
60-70 |
4+2 cyclones |
||
HVD-CY-DS3 |
90-100 |
6+2 cyclones |
||
HVD-CY-DS4 |
120-130 |
8+2 cyclones |
||
HVD-CY-DS5 |
150-160 |
10+2 cyclones |
Degerm Cyclone
HVD-CY-GM series germ cyclone separator use is mainly about separating the germ after the corn is coarsely broken. As one of the two types of cyclone separator, this equipment is static with simple structure, advanced design, easy installation, and large production capacity range.
Germ Cyclone Working Principle
The crushed material enters from the tangent direction through the feeding inlet under a certain pressure. Due to the different specific gravity of the germ and the corn slurry, under the action of centrifugal force, the free germ discharge through the overflow outlet, and the corn slurry is discharged from the lower part.
Germ Cyclone Technical Parameters
HVD-CY-GM series germ cyclone
Model |
Single cyclone capacity, t/h |
Feed pres., MPa |
HVD-CY-GM12.5 |
1.5-2.0 |
0.5 |
HVD-CY-GM15 |
2.0-3.0 |
0.6 |
HVD-CY-GM22.5 |
8.0-10.0 |
0.7 |
HongVadar relies on professional design, strict production management, the fine processing procedure, provides high efficiency and energy-saving equipment system for the customer. The manufacturing factory has passed the international ISO9001 quality system certification, and with the design and manufacturing capacity of pressure vessels. Customers can choose international ISO, EU CE, and other standards for equipment design and production according to their needs.
Desand Cyclone and Germ Cyclone Parameters
Desand Cyclone Technical Parameters
HVD-CY-DS series desand cyclone
Model |
Capacity, m3/h |
Feed pres., MPa |
Desand efficiency, % |
Remars |
HVD-CY-DS1 |
30-35 |
0.5 |
≥97 |
2+1 cyclones |
HVD-CY-DS2 |
60-70 |
4+2 cyclones |
||
HVD-CY-DS3 |
90-100 |
6+2 cyclones |
||
HVD-CY-DS4 |
120-130 |
8+2 cyclones |
||
HVD-CY-DS5 |
150-160 |
10+2 cyclones |
Germ Cyclone Technical Parameters
HVD-CY-GM series germ cyclone
Model |
Single cyclone capacity, t/h |
Feed pres., MPa |
HVD-CY-GM12.5 |
1.5-2.0 |
0.5 |
HVD-CY-GM15 |
2.0-3.0 |
0.6 |
HVD-CY-GM22.5 |
8.0-10.0 |
0.7 |
Beijing Hongvadar Engineering Technology Co. Is a professional corn processing plant, we provide single cyclone separator, liquid cyclone, stainless steel cyclone separator, hydrocyclone for sale and etc. Want to know hydrocyclone price and cyclone separator use, contact us.
