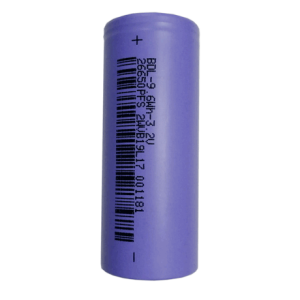

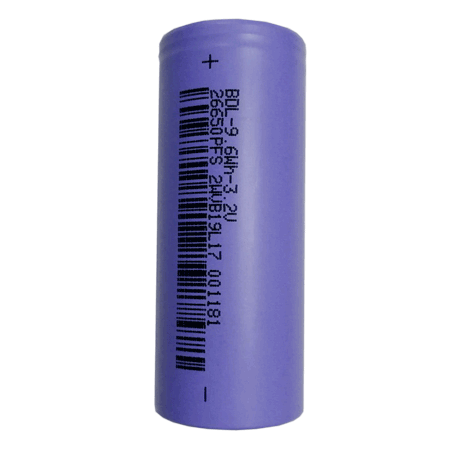

Cylindrical Cell (NMC, LiFePO4)
Quantité : 100W Prix : Customized products,
Ace Battery Co., Ltd. focuses on development, production, sales of lithium-ion and LiFePO4 battery packs, serving diversified markets such as ESS, UPS, medical, material handling, power tools, and industrial cleaning, li ion battery, cylindrical cell battery, prismatic cell and golf cart lithium battery, etc. As a reliable lithium battery factory China, the company has passed IATF16949, ISO9001, ISO14001, UL1973, CE, CB, IEC, UN38.3 certification. With high-quality of different types of lithium batteries and strong system integration capabilities.
ACE offers cylindrical lithium cells (lifepo4,nmc, rechargeable) like 26650, 21700 cylindrical cells and 18650 cylindrical cell, with different li-ion types, diversified capacity levels and discharge rates such as 1200mah 18650 battery, 18650 battery 9900mah, 18650 battery 3600mah, 18650 battery4000mah, 1500mah, 2000 mah, 2600mah, 2800mah, 3000mah, 3200mah, 3400mah, 3500mah, 4200mah, 4800mah, 5000mah, 6000mah, 6800mah, 9800mah,etc.
As an excellent li ion battery company, ACE provides lfp cylindrical cells at a cheap price (like lithium ion battery 18650), which are applicable for power tools, E-mobility, consumer, medical and ESS products, etc.
As well, the battery cells (such as 18650 lithium ion battery, 21700 lithium ion cells) for sale are high quality, lightweight, and bulk.
Features of Cylindrical Lithium Ion Cell
Safety, High Capacity, Long Cycle Life, Wide temperature range, UL1642, IEC62133, UN38.3 Approved
Li-ion (NCM) Cylindrical Cell List
|
PN# |
H18650CC |
H18650CQ |
N18650CNP |
N18650CK |
N18650CP |
N21700CB |
|
|
Typical Capacity(Ah) @0.2C |
2.2 |
2.55 |
2.5 |
3 |
3.3 |
4.8 |
|
|
Nominal Voltage(V) |
3.6 |
3.6 |
3.6 |
3.6 |
3.6 |
3.6 |
|
|
Energy Density |
172Wh/Kg |
207Wh/Kg |
191Wh/Kg |
222Wh/Kg |
251Wh/Kg |
253Wh/kg |
|
|
Weight (g) |
45 |
48 |
47 |
47 |
48 |
70 |
|
|
Internal Resistance(mΩ) |
35 |
30 |
16 |
35 |
35 |
30 |
|
|
Discharge |
Standard |
0.5C |
0.5C |
0.5C |
0.5C |
0.5C |
0.5C |
|
Max. |
5C |
4C |
12C |
3C |
3C |
3C |
|
|
End Voltage(V) |
2.75 |
2.75 |
2.5 |
2.5 |
2.5 |
2.5 |
|
|
Charge |
Standard |
0.5C |
0.5C |
0.5C |
0.5C |
0.5C |
0.5C |
|
Max. |
1C |
1C |
2C |
1C |
1C |
1C |
|
|
End Voltage(V) |
4.2 |
4.2 |
4.2 |
4.2 |
4.2 |
4.2 |
|
|
Temperature |
Charge |
0~45℃ |
0~45℃ |
0~45℃ |
0~45℃ |
0~45℃ |
0~45℃ |
|
Discharge |
-20~60℃ |
-20~60℃ |
-20~60℃ |
-20~60℃ |
-20~60℃ |
-20~60℃ |
|
|
Cycle Life (to 80% BOL capacity) |
1000 cycles |
1000 cycles |
500 cycles |
1000 cycles |
1000 cycles |
1000 cycles |
|
Lithium Iron Phosphate(LiFePO4) Cell List.
|
PN# |
P26650HP |
26650PFS |
26650MP2 |
26650FS2A |
26650FS3 |
|
|
Typical Capacity(Ah) @0.2C |
2.5 |
3 |
3 |
3.4 |
3.6 |
|
|
Nominal Voltage(V) |
3.2 |
3.2 |
3.2 |
3.2 |
3.2 |
|
|
Energy Density |
103Wh/Kg |
110Wh/Kg |
123Wh/Kg |
123Wh/Kg |
129Wh/Kg |
|
|
Weight (g) |
78 |
87 |
78 |
88 |
89 |
|
|
Internal Resistance(mΩ) |
8 |
15 |
20 |
20 |
20 |
|
|
Discharge |
Standard |
1C |
1C |
0.5C |
0.5C |
0.5C |
|
Max. |
15C |
10C |
3C |
3C |
3C |
|
|
End Voltage(V) |
2 |
2 |
2 |
2 |
2 |
|
|
Charge |
Standard |
1C |
1C |
0.5C |
0.5C |
0.5C |
|
Max. |
5C |
2C |
2C |
1C |
1C |
|
|
End Voltage(V) |
3.6 |
3.6 |
3.6 |
3.6 |
3.6 |
|
|
Temperature |
Charge |
0~45℃ |
0~45℃ |
0~45℃ |
0~45℃ |
0~45℃ |
|
Discharge |
-20~60℃ |
-20~60℃ |
-20~60℃ |
-20~60℃ |
-20~60℃ |
|
|
Cycle Life (to 80% BOL capacity) |
2000 cycles |
2000 cycles |
2000 cycles |
2000 cycles |
2000 cycles |
|
