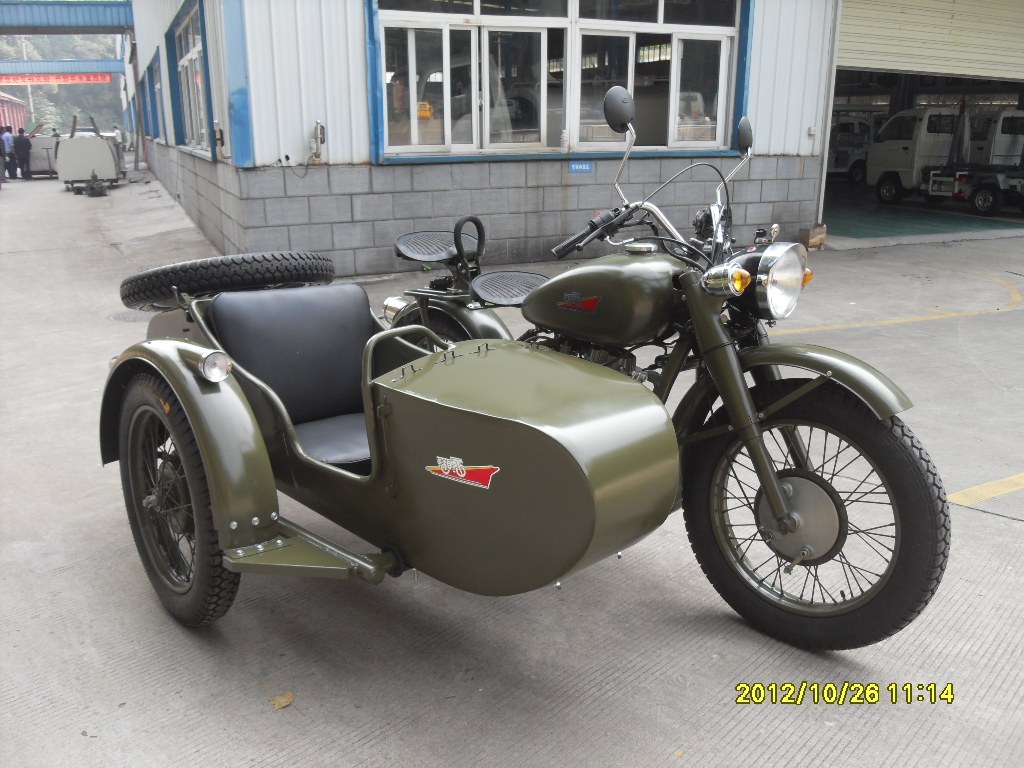

Customized Army Yellow 250cc Motorcycle Sidecar
Quantité : 100 Prix : USD4900
ITEM DESCRIPTION
1. Model Number: CJ250
2. Material: Iron, painted
3. Style: Classic military theme
4. Color: Army yellow
5. Engine: 250cc
6. Customization: Is welcomed, we can do patterns on car body
7. Available Colors: Any color
8. MOQ: 1 piece
9. Optional capacity: We can change the engine with 250cc, 300cc, 350cc, 750cc
10. Optional Equipment: Two ammo cans, blackout lamp, gun rack, disc brack, BWM-R71 fuel tank, spare fuel tank, small tool box
REMARK
1. Because of different monitors and brightness, there may exists tiny color difference.
2. Items will be insured from damage during transport from our factory to the destination port. If you want the items shipped to your house, please contact us.
3. We are not responsible for any duties, taxes, or additional charges that may be charged by Customs for any International deliveries.
4. There are two optional packing methods.
1) Wooden box packing
Cargo is Packed with un-fumigated wooden box.
SHIPMENT
We ship the item by sea generally, if you have other ideas please cantact us. Customized items will be shipped in 15 work days on payment received. Please make sure the shipping address is correct. We are not responsible for wrong address.
For detailed shipping costs, please contact us.
Packing Detail
Rolled with a plastic paper into a cube steel shelf, and then covered by steel net.
Weight after packing: 460kg/piece
Size after packing: 2200×1600 × 1270mm3
Technical Data
|
Model Category |
250CC |
|
|
1 Performance criterion |
Brake distance |
≤8m |
|
Top speed |
≥85KM/H |
|
|
MIN steady speed |
≤25KM/H |
|
|
Gradeability; |
≥15° |
|
|
Economic speed |
50KmH |
|
|
Economic speed fuel consumption |
≤2.6L/100Km |
|
|
2 Vehicle size and quality parameters |
Dimensions (mm) |
2230 ×1590 ×1000 |
|
Wheelbase(mm) |
1492 |
|
|
Fore-and-side wheelbase(mm) |
1147 |
|
|
Tread(mm) |
1175 |
|
|
Min ground clearance (mm) |
140 |
|
|
Dry weight (kg) |
320 |
|
|
Max payload(kg) |
220 |
|
|
3 The engine and the ignition system |
Engine |
250CC |
|
Type |
Four stroke air cooling vertical single cylinder |
|
|
Total displacement(ml) |
249.9 |
|
|
Cylinder diameter*stroke(mm) |
68×68 |
|
|
Compression ratio |
10.3: 1 |
|
|
Max power and its corresponding speed |
12.5KW/6500±500r/min |
|
|
Max torque and its corresponding rotary |
22N. M/5000r±500r/min |
|
|
Gear position primary |
3.89 (74/19) |
|
|
No1 Gear position |
3.000(36/12) |
|
|
No. 2 Gear position |
1.880(32/17) |
|
|
No. 3 Gear position |
1.400(28/20) |
|
|
No. 4 Gear position |
1.130(26/23) |
|
|
No. 5 Gear position |
0.960(24/25) |
|
|
Rear drive ratio |
1.350(27/20) |
|
|
Starting mode |
Kick &Electric |
|
|
Way of ignition |
C. D. I non-contact ignition |
|
|
Spark plug type |
CR7E |
|
|
Spark plug clearence (mm) |
0.6~0.7 |
|
|
Valve clearence |
Cold state: The intake valve 0.10 mm, exhaust 0.15 mm |
|
|
4 Drive system |
||
|
Cluth |
Manual Wet Multi-Plate |
|
|
Tyre size (inch) |
3.75-19 |
|
|
Tyre pressure(kpa) |
Front wheel 250±20kpa, rear wheel 335±20kpa, side wheel 350±20kpa |
|
|
Brake pattern |
The front brake: Drum handbraking rear brake: Drum footbraking |
|
|
Kind of drive |
Shaft drive transision |
|
|
5 Electrical system |
Rated voltage |
12V |
|
Storage battery |
6QA28 |
|
|
Generator type |
Flywheel rotor |
|
|
Starting relay |
JN3-12 |
|
|
Headlamp |
12V60/55W |
|
|
Cornering lamp |
12V20W |
|
|
Taillight |
12V20/8W |
|
|
Electric hom |
12V, ≤3A |
|
|
6 Others |
Engine shape dimension |
505×395×415 |
|
Engine weight |
42Kg±1Kg |
|
|
Oil pump type |
Internal meshing rotor |
|
|
Lubrication type |
Combined force-feed and splash lubrication |
|
|
Exhaust contaminant |
CO≤4.5, HC≤1200ppm |
|
|
Ignition advance angle |
Before BDC 29°(≤4500r/min) |
|
