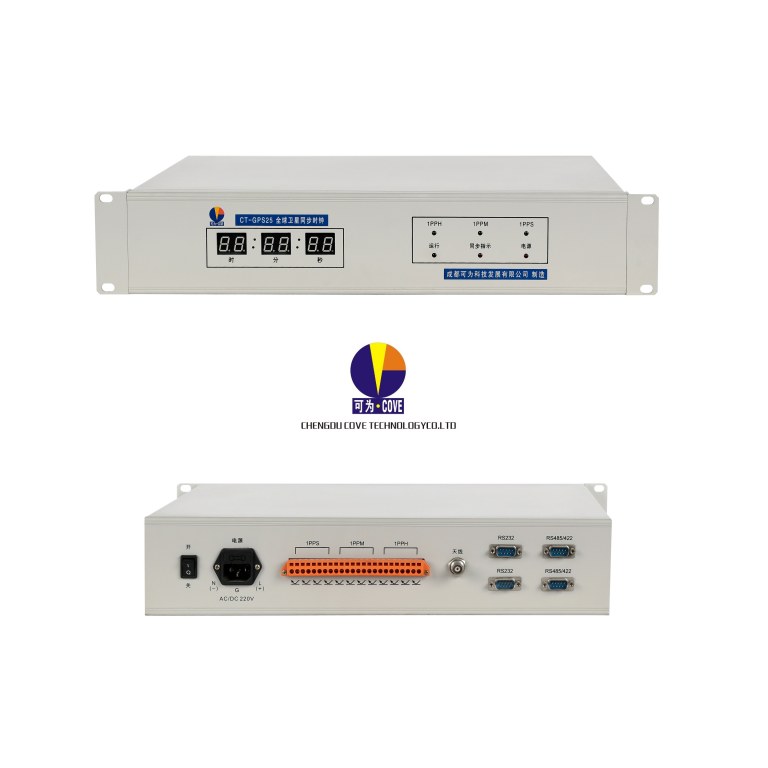

CT-GPS25 Series GPS Clock
The CT-GPS 25 GPS clock is designed to provide the most precise time to the network mainly in the traditional power utilities substations and some other applicable automation devices. It was the first product we released after our establishment in 2000. Also it was the most popular one since then. Depending on the internal receiver configuration, it is capable of referencing the world's largest global navigation satellite system-GPS network..
• GPS input source
• High timing accuracy, microseconds pulse outputs
• Reliable signals receiver built-in
• High performance 1PPS/1PPM/1PPH output
• Multiple serial output and interactive mode
• Compact 19"/ 2U rack mount
• GPS Antenna included
CT-GPS 25 GPS Clock
|
|
Output signals |
4×1PPS, 4×1PPM, 4×1PPH |
2×RS 232, 2×RS 485/422 (Optional 4800 or 9600 Baud) |
|
Mechanical |
|
Size (W×H×D): |
19” ×2U×305 mm or 19” ×2U×360 mm |
Weight: |
3.5Kg |
Performances |
|
Timing Accuracy: |
±1 μs |
Location Accuracy: |
0.1' |
Acquisition:
|
Cold start < 15mins Restart from outage < 20s Restart at the same location < 2mins Restart in a new place < 7mins |
Power Supply |
|
Voltage: |
220V±20% DC or 220V±15% AC |
Frequency: |
47 to 60 Hz |
Power consumption: |
≤15 Watts |
Environmental Conditions |
|
Operating Temperature: |
0~40 °C |
Storage Temperature: |
-20 to +55°C |
Humidity: |
to 95% non-condensing |
SCOPE OF SUPPLY
• 1×CT-GPS 25 GPS clock
• 1×GPS antenna in waterproof housing with 30m low loss coax cable
• 1×Power cable
• 2×Operating instruction handbook
• Certification
Other types you may be interested
Output Signals Diff. from Each Type
Type |
RS 232 (No.) |
RS485/422 (No.) |
1PPS (No.) |
1PPM (No.) |
1PPH (No.) |
Fail alarm |
CT-GPS 25 |
2 |
2 |
4 |
4 |
4 |
N/A |
CT-GPS 25L |
8 |
4 |
24 (1~8, 9~16,17~24 ,3 Sets) Each set being configurable |
N/A |
||
CT-GPS 25X |
8 |
4 |
24 (1~8, 9~16,17~24 ,3 Sets) Each set being configurable |
Available |
||
CT-GPS 25S |
1 |
1 |
4 |
0 |
0 |
N/A |
CT-GPS 25Y |
2 |
2 |
44(1~4, 5~8,... ,41~44 ,11 Sets) Each set being configurable |
N/A |
Note that, if all the GPS clocks couldn't satisfy please feel free to contact us. We are very pleased to provide custom-made ones especially for you.
Lifetime support, either by email or phone.
