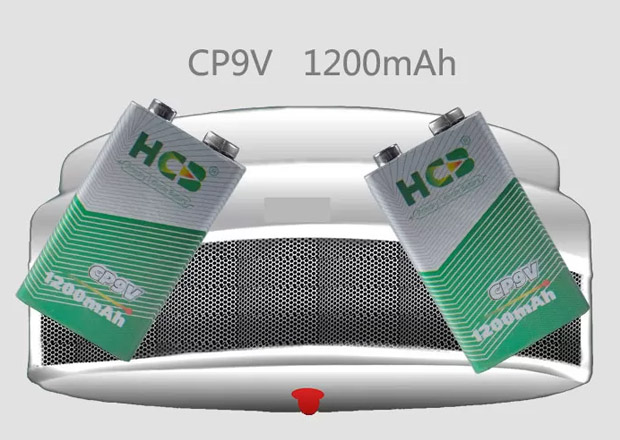

CP9V Lithium Pouch Cell
Quantité : Two millio Prix : $0.1- $100
450Wh/Kg CP9V 3CP502440 1200mAh Soft Cell Non-Rechargeable Lithium Batteries For Smoke Detectors, RFID Devices Smoke Alarm Security, Smart Metering, Medical Devices, GPS Tracking.
Details of CP9V Lithium Pouch Cell
Product Details of CP9V Lithium Pouch Cell
Place of Origin |
China |
Brand Name |
HCB |
Certification |
RoHS/UN/CE/UL |
Model Number |
CP9V |
Payment & Shipping Terms Details of CP9V Lithium Pouch Cell
Minimum Order Quantity |
1K pcs |
Price |
negotiable |
Packaging Details |
Special design for Air/Sea/Courier transportation |
Delivery Time |
10 - 35 workdays |
Payment Terms |
T/T, L/C |
Supply Ability |
two million units per month |
Advantage of CP9V Lithium Pouch Cell
High voltage response, stable during most of the lifetime of the application
Energy density up to 830Wh/L
Wide operating temperature range (-40℃~+70℃)
Low self-discharge rate (less than 1% per year after 1 year of storage at +25℃)
Specification of CP9V Lithium Pouch Cell
References Data |
Electrical characteristics |
|
Open circuit voltage (at 23±2°C) |
≥9.30V |
|
Nominal capacity |
1200mAh |
|
(At +25°C, the battery is discharged at continuous current 1mA until the voltage reaches cut-off voltage 6.0V. The capacity can vary at a different temperature, discharge current or cut-off voltage.) |
||
Maximum continuous current |
300mA |
|
(At +25°C, 6.0V cut-off, battery discharged for a minimum of 50% of rated capacity.) |
||
Maximum pulse discharge current |
500mA |
|
(At +25°C, 6.0V cut-off, battery discharged for minimum 50% of rated capacity with max pulse for 3 seconds after 27 seconds break. The discharged capacity may vary according to the pulse characteristics, the temperature, and the cell's previous history. Fitting the cell with a capacitor may be recommended in severe conditions, consult HCB. ) |
||
Storage (recommended) |
≤+30°C |
|
(For more severe conditions, consult HCB) |
≤75%RH |
|
Operating temperature range |
-40°C~+70°C |
|
(Operation above ambient temperature may lead to reduced capacity and lower voltage readings at the beginning of pulses. Consult HCB.) |
||
Physical characteristics |
Typical weight |
39.0g |
Li metal content |
1.52g |
Use Warning of CP9V Lithium Pouch Cell
Do not charge. When this battery is charged, gas is generated inside and raises internal pressure, resulting in fire, heat generation, leakage, or bursting.
Do not dispose of in fire, disassemble or heat in any way. It will damage the insulation materials and the safety vent resulting in fire, heat generation, leakage, or bursting.
Insert batteries properly. Keep polarities in the correct position aligning + and - correctly for ALL batteries to avoid leakage or bursting.
Do not short-circuit. If the + and - come into contact with metal objects, short-circuiting occurs resulting in heat generation or bursting. When carrying or storing batteries, avoid direct contact with metal objects such as bracelets or key chains by putting them in a separate bag.
Now the price of primary lithium battery is affordable, if you have needs to buy lithium primary battery, please leave us a message.
