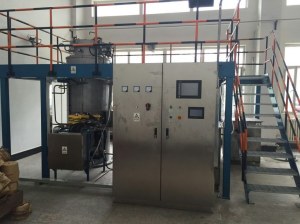

Core Leaching Autoclave
The Ceramic Core Leaching Autoclave is a system for removal of silicon ceramic cores from aerofoils by means of eroding them away via a chemical process.
Specifications
|
Model |
YT-TXF1065 |
YT-TXF750 |
YT-TXF600 |
|
inner material |
316L |
316L |
316L |
|
inner Diameter |
1065mm |
750 mm |
600 mm |
|
Depth |
1800mm |
1200 mm |
1200 mm |
|
maximum working pressure |
10bar |
10 bar |
10 bar |
|
Maximum working temperature |
200℃ |
200℃ |
200℃ |
|
Air supply requirements |
6 bar |
6 bar |
6 bar |
|
Water supply |
1*20 mm bore |
1*20 mm bore |
1*20 mm bore |
|
Control system |
PLC Siemens control |
PLC Siemens control |
PLC Siemens control |
|
Rotary actuators |
KINETROL |
KINETROL |
KINETROL |
Note: We can design the special machines according to the customer's requirements.
