Copper Bonded Copperweld Ground/Earth Rod
Quantité : 50000/mont Prix : 10usd
What is the copper-bonded copperweld steel ground rod? Do you want to buy earth rod?

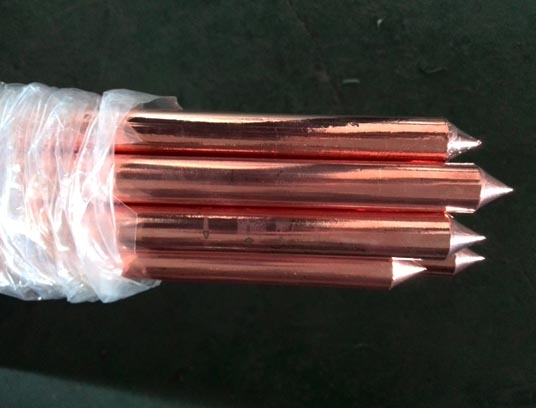

Product Name: Copper coated copperweld steel ground rod
Production process: electroplating / continuous electroforming
Raw materials: Cold draw high quality mild steel
Product type: one pointed, one flat, two threads (requires with a striker, connector, drill)
Thread production process: mainly consists of two processes: turning before electroplating and rolling after electroplating
Tensile strength: 450-600MPA
Copper layer thickness: more than 0.254mm
Super copper thickness: 0.33-1mm
Why choose our Copper-bonded steel ground rod?
1. Factory history 30 years
2. Export history 10years
3. Quality control
4. Technical skill(copper thickness 0.5mm/0.8mm/1mm)
5. OEM service
6. Free sample
Copper-bonded copperweld steel ground rod advantags:
1. Higher tensile strength than pure copper ground rod, can be as high as 600MPA and above
2. Superior corrosion resistance: underground service life of up to 30-50 years
3. Compared with pure copper ground rod, it has excellent electrical conductivity of copper and saves cost.
4. Compared with traditional galvanized ground rods, the conductivity is higher and the corrosion resistance is stronger.
5. The connection to the grounding grid can be made by exothermic welding, integrated and molded, and the grounding resistance is small, making it a permanent maintenance-free grounding device.
Production reference standard: US UL467, national grid production enterprise standard QDW466-2010, etc.
Copper-bonded copperweld steel ground rod application range:
Lightning protection grounding projects in petrochemical plants, oil storage, power plants, substations, communication base stations, airports, network equipment rooms, etc.
Remarks: Copper-bonded copperweld steel copperweld ground rod steel material and copper plating thickness can be customized according to requirements, the company provides OEM service.
Copper-bonded copperweld steel ground rod specification
- Copper layer 0.254mm
|
Model No. |
Diameter and Length |
Unit Weight |
Pack |
|
mm |
Kg |
||
|
BSD-GR1312 |
13 x 1220 (1/2in x 4ft) |
1.27 |
10 |
|
BSD-GR1315 |
13 x 1500 (1/2in x 5ft) |
1.56 |
10 |
|
BSD-GR1318 |
13 x 1800 (1/2in x 6ft) |
1.87 |
10 |
|
BSD-GR1324 |
13 x 2400 (1/2in x 8ft) |
2.50 |
10 |
|
BSD-GR1330 |
13 x 3000 (1/2in x 10ft) |
3.13 |
10 |
|
BSD-GR1412 |
14.2 x 1220 (5/8in x 4ft) |
1.53 |
10 |
|
BSD-GR1415 |
14.2 x 1500 (5/8in x 5ft) |
1.91 |
10 |
|
BSD-GR1418 |
14.2 x 1800 (5/8in x 6ft) |
2.31 |
10 |
|
BSD-GR1424 |
14.2 x 2400 (5/8in x 8ft) |
3.05 |
5 |
|
BSD-GR1430 |
14.2 x 3000 (5/8in x 10ft) |
3.83 |
5 |
|
BSD-GR1718 |
17.2 x 1800 (3/4in x 6ft) |
3.37 |
5 |
|
BSD-GR1724 |
17.2 x 2400 (3/4in x 8ft ) |
4.55 |
5 |
|
BSD-GR1730 |
17.2 x 3000 (3/4in x 10ft ) |
5.58 |
3 |
|
BSD-GR2530 |
25 x 3000 (1' x 10ft ) |
9.8 |
3 |
2. Copper layer 0.33-0.5mm
|
Model No. |
Diameter and Length |
Unit Weight |
Pack |
|
mm |
Kg |
||
|
BSD-GR1312 |
13 x 1220 (1/2in x 4ft) |
1.275 |
10 |
|
BSD-GR1315 |
13 x 1500 (1/2in x 5ft) |
1.565 |
10 |
|
BSD-GR1318 |
13 x 1800 (1/2in x 6ft) |
1.88 |
10 |
|
BSD-GR1324 |
13 x 2400 (1/2in x 8ft) |
2.51 |
10 |
|
BSD-GR1330 |
13 x 3000 (1/2in x 10ft) |
3.14 |
10 |
|
BSD-GR1412 |
14.2 x 1220 (5/8in x 4ft) |
1.54 |
10 |
|
BSD-GR1415 |
14.2 x 1500 (5/8in x 5ft) |
1.92 |
10 |
|
BSD-GR1418 |
14.2 x 1800 (5/8in x 6ft) |
2.33 |
10 |
|
BSD-GR1424 |
14.2 x 2400 (5/8in x 8ft) |
3.07 |
5 |
|
BSD-GR1430 |
14.2 x 3000 (5/8in x 10ft) |
3.87 |
5 |
|
BSD-GR1718 |
17.2 x 1800 (3/4in x 6ft) |
3.39 |
5 |
|
BSD-GR1724 |
17.2 x 2400 (3/4in x 8ft ) |
4.57 |
5 |
|
BSD-GR1730 |
17.2 x 3000 (3/4in x 10ft ) |
5.60 |
3 |
|
BSD-GR2530 |
25 x 3000 (1' x 10ft ) |
9.85 |
3 |
Remark: If you want copper layer more than 0.5mm,please contact us, we off OEM service.
Ningbo Zhenhai Beisuda Petrochemical Equipment Co.,Ltd located in Ningbo, Zhejiang, it is a professional enterprice, who focus on R&D, production, sales of copper clad steel ground rod. We sincerely invite and welcome people from all around the world to invest and create more values together.
