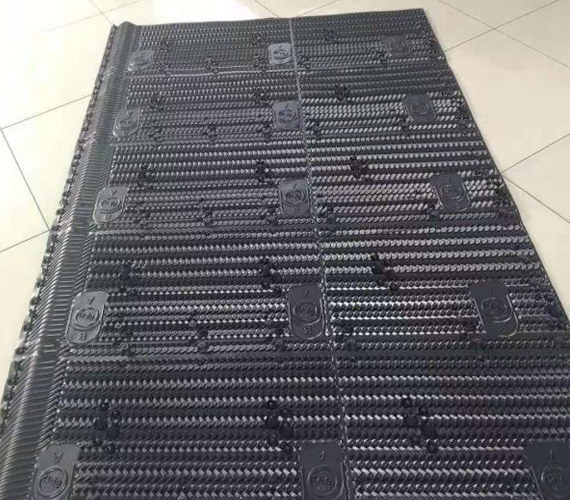

Cooling Tower Filling For BAC
BAC cooling tower filling is one of the most important parts of the heat exchange process of the cooling tower. It is also the main part to improve the efficiency of cooling tower and ensure the economy and safe operation. The surface of specially designed packing is an S-shaped ladder-shaped ripple, with good heat dissipation performance, low ventilation resistance, durability, flame retardant, and other advantages. It is widely used in different types of large, medium, and small cooling towers.
Description of Cooling Tower Filling for BAC
Specification and model: overall dimension: 1330 * 245mm
Spacing: 20 mm
Thickness: 0.3-0.4mm
Applicable temperature: 75 ℃ ~ 35 ℃
Scope of application: square cross flow cooling tower
Parameter Of Cooling Tower Filling for BAC
Module Length (Max) |
mm |
4070 |
Module Width |
mm |
1330 |
Module Depth |
mm |
— |
Flute Height |
mm |
19 |
Flute Corrugation Angle |
degrees |
- |
Surface Area |
m2/m3 |
150 |
Sheet Thickness - Before Forming |
mm |
0.38 |
Sheet Thickness - After Forming |
mm |
0.35 |
Max. application temp. (short time) - PVC |
°C |
60 |
Max. operating temp. (short time) - High temp. |
°C |
80 |
Advantage Of Cooling Tower Filling for BAC
BAC cooling tower filling is easy to install, easy to clean, and easy to transport. The heat dissipation filling is adhesive type, easy to install and easy to clean, and successfully solves the problem of deformation caused by a large amount of attached scale and self-weight, and the scale after deformation is more serious and difficult to clean. The results show that the flame retardant oxygen index of the filler is more than 40. The structure design has the function of diversion.
BAC cooling tower filling has accurate positioning and equal spacing combination (all 15mm), which is convenient to form a large area of flowing water film perpendicular to the surface of the water flow and promote the contact surface of large airflow. The built-in vertical deflector makes the distribution of gas water ratio in the filling uniform and reasonable. The unique and efficient water remover and filling molding are integrated, which can effectively remove the water droplets in the hot and humid air and return to the tower, and the cooling tower is large The loss of floating water is greatly reduced. The floating water loss rate is less than 0.001%.
As a professional cooling tower suppliers, we provide bac cooling tower parts, bac cooling towers, cooling tower for sale, contact us to buy china cooling tower or know more.
