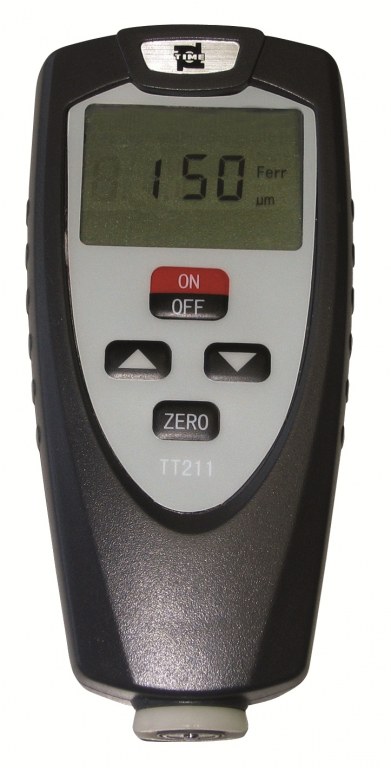

Coating thickness gauge TT211
Quantité : 100 Prix : USD180/pc
Product Introduction
The TT211 coating thickness tester is an economical model integrated with F probe. This thickness testing instrument features easy calibrtion on zero point, high speed data collection and provides single point measurement mode, automatic shutoff function. In addition, the tester realizes metric and imperial conversion, which means users can select mm or inch according to their specific requirement. Moreover, 3 kind of adjustable resolution are available for different applications.
Features
Measuring method: magnetic induction (F)
Economical model with F probe integrated
Single point measurement mode
Easy calibration on zero point
3 kinds of adjustable resolution for different application
High speed data collection
Automatically switch off
Easy conversion between mm and inch
Technical Specification
| Operating principle | Magnetic induction | |
| Measuring range | 0 ~ 1250 μm | |
| 3 adjustable resolution | 1μm, 5μm, 10μm | |
| Measuring accuracy | 1μm | ± (3%H + 1μm) |
| 5μm | ± (3%H + 5μm) | |
| 10μm | ± (3%H + 10μm) | |
| Power supply | Battery 1.5 Standard AAA type (2pcs) | |
| Operation temperature | 0 ºC~ 40 ºC (32 ºF ~ 104 ºF) | |
| Humidity | 20% RH ~ 90% RH | |
| Dimension | 110mm x 50mm x 23mm | |
| Weight | 100g | |
Standard delivery
Main unit
Substrate
Battery
Waist pack for main unit
Instruction manual
TIME certificate
Warranty card
