CNC Machine Tool Setter System
Tool setter for CNC machining centers is an important operation procedure in CNC machining, and its accuracy will directly affect the processing precision of spare parts and efficiency. Pioneer CNC machine tool setters are used for fast and automatic tool setting and tool breakage detection. The automatic cnc mill tool setter can work in harsh conditions in machine tools. Its tool setter probe can improve the accuracy of your workpieces and the productivity of your manufacturing lines, and avoid defective products. Pioneer offers several series of tool setter systems--Radio tool setter system, optical manual tool setter system, and cable tool setter system.
Types of CNC Automatic Tool Setter System
Optical Tool Setter
OTC200 optical tool setter/presetter is a wireless tool setter, optical coded signals are used to transmit information between the tool setter and the receiver.
Radio Tool Setter
RP610T radio tool setter is a wireless tool setter, radio coded signals are used to transmit information between the tool setter and the receiver.

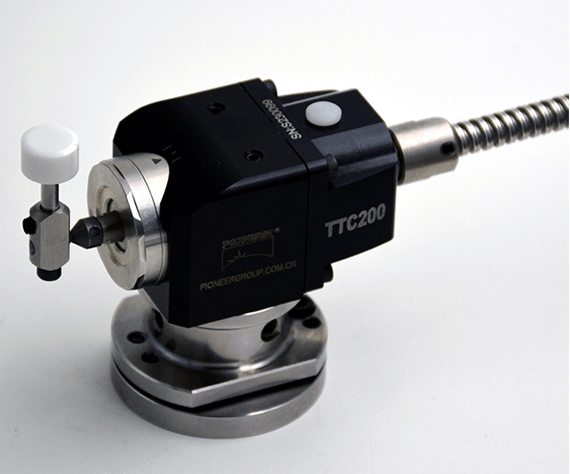

Cable Tool Setter System
The cable tool setter system is suitable for various specifications of machine centers, CNC milling machines, drilling-tapping machine centers, etc. Cable tool setter transmits signal through cable.
Advantages of CNC Machine Tool Setter System
1
Measure, correct tool length and diameter offset value quickly and accurately
2
Reduce the manual operation, reduce labor intensity and the influence of human operation factor to the tool setting precision
3
The influence of temperature change on machining precision is controlled by measuring tool parameters
4
Monitor tool wear and tear, reduce rejection rate
FAQs of Tool Setter for CNC Machining Centers
What does a tool setter do?
You can press a button to let the CNC machine tool setter automatically detect the length of the tool (sometimes even the diameter), and then automatically enter the data into the tool table of the controller. All in all, many machines are now equipped with tool setter for CNC machining. Using the tool setter probe to calibrate can avoid measurement errors and greatly improve the accuracy of CNC machining.
Is the tool setter the ultimate tool?
Yes, but it really depends on whether your workshop needs to optimize the cycle time (the time the machine is running) or the setup time (the time the machine is idle).
Is tool setter an important operation in CNC machining?
CNC machine tool setting is the most basic operation in CNC machining. The accuracy of CNC tool setter will affect the machining accuracy of parts. At the same time, the tool setting efficiency also directly affects the processing efficiency. The essence of the tool setter for CNC machining centers is to determine the exact position of the tool tip of different tools in the machining coordinate system.
What's the purpose of tool setting?
When CNC machine tool setter is used for processing, the accurate length and radius of the tool setter are offset relative to the datum, so as to obtain the accurate position of the tool tip of the tool setter. Therefore, the purpose of tool setter is to determine the exact length and radius of tool, so as to determine the exact position of the tool tip in the workpiece coordinate system during processing.
As one of the most professional cnc tool presetter manufacturers, we provide touch probe, cnc measuring probe, tool setting cnc machine, setting tool cnc, spindle probe and etc. Want to know more? Please contact us.
