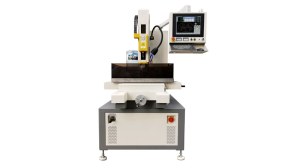

CNC EDM Hole Drilling Machine for Sale

Quantité : 1200sets/y   Prix : USD10000-200000

CNC EDM drill, also known as small hole edm drilling machine, basically, there are three axis control(X, Y, Z), 4-axis control(X, Y, Z and W), 5-axis control(X, Y, Z, W and C), 6-axis control, (Y, Z, W, B, C) and even more. On the cnc edm drill machine, Z axis spindle servo stroke: W axis is the stroke of machine head; C axis rotation in horizontal direction; B is swing in vertical direction. Equipped with automatic electrode or guide changer, edm cnc machine can do automatic machining.

KD-DC430A(B,C) CNC EDM Drillig Machine X×Y=400×300mm

KD-DC435A(B, C) CNC EDM Small Hole Drilling Machine X×Y=450×350mm

KD-DC640A(B, C) CNC EDM Small Hole Drilling EDM Machine X×Y=600×400mm

KD-DC850C CNC EDM Small Hole EDM Machine X×Y=800×500mm - With Casting Body

KD-DC1063C CNC EDM Small Hole EDM Machine X×Y=1000×630mm - With Casting Body

KD-DC1080C CNC EDM Small Hole EDM Machine X×Y=1000×800mm - With Casting Body

KD-DC1280C CNC EDM Small Hole EDM Machine X×Y=1200×800mm - With Casting Body

CNC EDM Small Hole Drilling Machine Highlights

EDM small hole drilling machine can drill deep hole with diameters 0.1mm ~ 3mm for C type, 0.2mm ~ 3mm for B type, 0.3mm ~ 3mm for A type

The speed of the drilling hole is 30mm~60mm depth per minute (it is different for different materials), it is a kind of fast hole drilling EDM CNC tech.

High speed small hole drilling edm can drill wire-cut starting hole, filter hole, jet hole, gas hole, group holes and hole of super depth, etc.

Fast hole edm drilling can drill small holes on the various conductive materials, even semiconductor material, especially stainless steel, chilled steel, copper, aluminum, and hard alloy, etc.

EDM small hole drilling machine can easily erode the drill and screw tap etc. which is broken in the workpiece and not destroy the screw thread of the holes.

The working water can be normal water or saponification fluid and no pollution is brought.

The operation of the EDM drilling machine for sale is easy and convenient.

X, Y, Z three axes digital display with scale.

X, Y, Z three axes control.

Feel free if you want to know about EDM drilling machine price.

CNC EDM Small Hole Drilling Machine Packing List

No.

Item name

Specification

Quantify

1

Inner hexagon spanner

M3 M4 M5 M6 M8

1 piece each

2

Double-head screwdriver

1 piece

3

Shear for electrode

1 piece

4

Guide

Ф0.5×12×42mm

1 piece

5

Guide

Φ1.0×12×42mm

1 piece

6

Electrode

Φ0.5×500mm

100 pieces

7

Electrode

Φ1.0×500mm

100 pieces

8

Electrode seal

Ф0-1.0mm

20 pieces

9

Chuck

4H

1 set

10

Balance bar mount

1 set

11

Tap connector

1 piece

12

Foot block

M16

4 pieces

13

Water tank

1 piece

14

Water barrel

1 piece

15

Water cover

1 set

16

Manual

1 set

17

Packing list

1 set

18

Recycling tank(optional)

110L

1 set

19

Flushing seat(optional)

1 set

Function Pic CNC EDM Hole Drilling Machine for Sale

Consumable Parts CNC EDM Hole Drilling Machine for Sale

We also have types of cnc wire cut edm machine for sale, if you have needs, please contact us.
