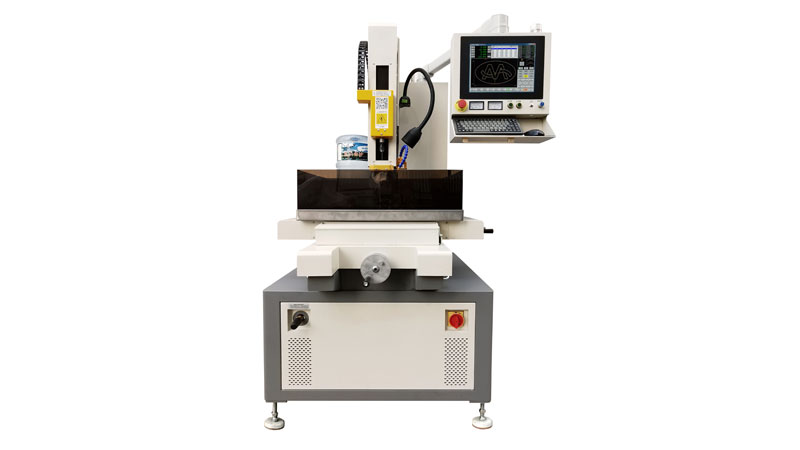

CNC EDM Hole Drilling Machine for Sale
CNC EDM drill, also known as CNC EDM small hole edm drilling machine , basically, there are three axis control(X, Y, Z), 4-axis control(X, Y, Z and W), 5-axis control(X, Y, Z, W and C), 6-axis control, (Y, Z, W, B, C) and even more. On the CNC EDM drill machine, Z axis spindle servo stroke: W axis is the stroke of machine head; C axis rotation in horizontal direction; B is swing in vertical direction. Equipped with automatic electrode or guide changer, CNC EDM drilling machine can do automatic machining.
CNC EDM Small Hole Drilling Machine Highlights
EDM small hole drilling machine can drill deep hole with diameters 0.1mm ~ 3mm for C type, 0.2mm ~ 3mm for B type, 0.3mm ~ 3mm for A type
The speed of the drilling hole is 30mm~60mm depth per minute (it is different for different materials), it is a kind of fast hole drilling EDM CNC tech.
EDM high speed small hole drilling machine can drill wire-cut starting hole, filter hole, jet hole, gas hole, group holes and hole of super depth, etc.
EDM fast hole drilling machine can drill small holes on the various conductive materials, even semiconductor material, especially stainless steel, chilled steel, copper, aluminum, and hard alloy, etc.
EDM small hole drilling machine can easily erode the drill and screw tap etc. which is broken in the workpiece and not destroy the screw thread of the holes.
The working water can be normal water or saponification fluid and no pollution is brought.
The operation of the EDM drilling machine for sale is easy and convenient.
X, Y, Z three axes digital display with scale.
X, Y, Z three axes control.
Feel free if you want to know about EDM drilling machine price.
CNC EDM Small Hole Drilling Machine Packing List
No. |
Item name |
Specification |
Quantify |
1 |
Inner hexagon spanner |
M3 M4 M5 M6 M8 |
1 piece each |
2 |
Double-head screwdriver |
|
1 piece |
3 |
Shear for electrode |
|
1 piece |
4 |
Guide |
Ф0.5×12×42mm |
1 piece |
5 |
Guide |
Φ1.0×12×42mm |
1 piece |
6 |
Electrode |
Φ0.5×500mm |
100 pieces |
7 |
Electrode |
Φ1.0×500mm |
100 pieces |
8 |
Electrode seal |
Ф0-1.0mm |
20 pieces |
9 |
Chuck |
4H |
1 set |
10 |
Balance bar mount |
|
1 set |
11 |
Tap connector |
|
1 piece |
12 |
Foot block |
M16 |
4 pieces |
13 |
Water tank |
|
1 piece |
14 |
Water barrel |
|
1 piece |
15 |
Water cover |
|
1 set |
16 |
Manual |
|
1 set |
17 |
Packing list |
|
1 set |
18 |
Recycling tank(optional) |
110L |
1 set |
19 |
Flushing seat(optional) |
|
1 set |
Function Pic CNC EDM Hole Drilling Machine for Sale
Consumable Parts CNC EDM Hole Drilling Machine for Sale
BIEM is one of the key edm parts supplier in china, we provide cnc sparking machine, high speed small hole drilling edm, spark edm machine, cnc edm die sinker and etc. Want to know more? Please contact us.
