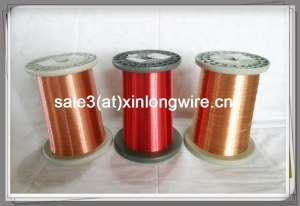

China Factory Sale Good Quality Enameled Wires

Product description

Themal Class

B130/F155/H180/C220 Certigrade

Conductor Type

Enameled copper wire (ECU) 0.04-2.8mm

Enameled aluminum wire (EAL) 0.12-2.8mm

Enameled copper clad aluminum wire (ECCA) 0.12-1.8mm

Paint Film

PEW / UEW (Direct soldering performance) / EIW / AIW

thin paint film, thick paint film, paint film requested by clients

Main Application Of Electric Coated Wire

1)Small transformers, linear motors, relays, solenoids, small motors, clock coils, watch coils, magnetic heads.
2)Automotive sensors and coils as relais and ignition coils.
3)Generators,dry-type or oil-immersed.
4)Anti-explosion motor,air-conditioner compressor,washing machines.
5)Military and space applications.

6)Electrical machinery,transformer , generator
7)Electrical motor windings, exhaust fan
8)Air-conditioner, washing-machine, compressor and so on.

Standards

GB6109 ( Enameled round copper wire)

GB3955 ( Enameled round aluminum wire)

SJ/T 11223-2000 ( Enameled round copper clad aluminum wire)

GB 4074 (Test methods of enameled copper winding wire)

NEMA MW 1000

IEC 60317

JIS 3202

Or standard requested by clients

The Physical and Mechanical Performance Copper Clad Aluminum Wire, Copper Wire , Aluminum Wire

conductor Copper Clad Aluminum Wire Copper Wire Aluminum Wire
Performance
Volume ratio of copper (%) 15 109 0
Specific gravity (g/cm3) 3.63 8.89 2.7
Length ratio in same wire diameter and unit weight 2.5: 1 1: 01 3.29: 1
Conductivity (%IACS) 70 100 62
Electric resistivity(Ωmm2) 0.02462 0.01724 0.0274
Tensile strength (M pa ) 95-135 215-266 68-107
Elongation (%) ≥10 ≥20 ≥8
Winding performance good very good good
Weight good bad very good
Soldering performance very good very good bad
Direct current resistance good very good good

electric coated wire.jpgelectric coated wire.jpgelectric coated wire.jpg

Packaging & Shipping

PLASTIC BOBBIN:

PT-4

PT-10

PT-15

PT-25

TAKE UP WIRE SIZE(MM)

0.12~0.15

0.16~0.21

0.23~0.59

0.6~0.85

CBM/CARTON

0.02

0.0175

0.021

0.0167

SPOOL/CARTON

4

2

1

1

NET WEIGHT(KG/SPOOL)

2

3.8

6

10

electric coated wire

Company Information

Founded in 2000, Bo Luo Xin Long Electrician Data CO., LTD is a professional enameled winding wire manufacturer, located in Bo Luo Coutry, Hui Zhou City, Guang Dong, China. Our products are sold to Malaysia, India, Indonesia, Cuba,Russia, Japan, USA, HK, Pakistan, Germany and so on. Have earn good reputation on this line. More than 20 countries and own over 100 regular customers.

-

Certifications

ISO9001: 2008 Quality Management Systerm

<span data-mce-style="margin: 0px; padding: 0px; border: 0px; font-family: arial, helvetica, sans-

Localisation : Liao Zai Industrial Area, Bo Luo, Hui Zhou City,Guang Dong, China, 516123 Guangdong, China,
Personne à contacter : Sunny Zhang, +86 13528549541
