Charcoal briquette machine

Quantité : 100   Prix : 1,00 €

BBQ Charcoal Briquette Machine-a helper turning your agro-wastes into briquettes as a kind of new energy.Wide market in BBQ and other similar occasions.Invest in our briquette machine will be your wise choice.

Charcoal Briquette Machine Makes Contribution to Environment
Known as BBQ Charcoal Machine, charcoal briquette machine is used to process any kinds of agroforestry wastes into bio-fuel hollow briquettes with various diameters from50mm to 90mm. If you have agro-wastes in your farm, it's wise for you to turn them into briquettes and reuse it. Nowadays more and more people are tend to recycle these wastes and make them to briquette as new eco-friendly energy.

Charcoal Briquette Making Process
Generally speaking, charcoal briquette making flowchart is as follows

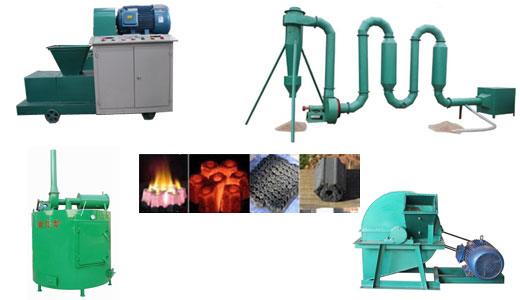

Raw material-crushing-drying-briquette making-carbonizing.
1. Just as referred, there are a wide range of raw materials including agroforestry wastes such as sawdust,crop straw,wood branches,rice hull,bamboo sawdust,peanut shell and sunflower shell,etc.
2. Crusher is suitable for crushing different kinds of straw or wood log with size less than 200mm(diameter). After milled, the output diameter is 3-5mm, which is suitable for further briquetting.
3. For raw materials with high moisture content of above 12%, a drier is necessary to install. Put the wet material into the hopper. The stove(boiler) generates hot air which mixed with wet sawdust and sucked into the by the exhaust blower(fan), the dried sawdust is discharged from the outlet with air lock.
Briquettes before and after carbonization

briquettes before carbonization carbonized briquettes

Finishing this step, we need make sure that the processed materials diameter must be at 3-5 mm and the raw materials moisture is within 8-12%.

4. Making briquette is a process that biomass is compressed under high pressure and high temperature. We need no binder added as the lignin in plant can serve as the glue in briquetting process. After binding and compressing, the biomass is pressed into high density briquette.
5. The last step is carbonization. This process makes the wood briquette into charcoal briquette which is popular among BBQ lovers. Our furnace is of rational structure and only needs small heat consumption. The carbonized charcoal briquettes are high qualified and have longer burning time.
Charcoal Briquette Machine Spare Parts: heating ring, screw propeller, cyclinder,inner sleeve.

screw propeller of the charcoal briquette machine
screw propeller
heating ring of briquette machine
heating ring

charcoal briquette machine cyclinder
cyclinder

briquette machine inner sleeve
inner sleeve

Our final charcoal briquette has diameter of 50mm to 90mm and length of 50mm-100mm.

Charcoal Briquette Machine Parameters

Model ZBJ-60 ZBJ-70 ZBJ-80 ZBJ-90
Main motor power (kw) 18.5 22 22 22
Electric heater power (kw) 1.5*3 2*3 2*3 2*3
Weight (kg) 540 650 1080 1450
Capacity (kg/h) 210-320 350-400 400-450 450-500
Overall dimensions (mm) 1780*750
*1290
1650*600
*1260
1860*800
*1360
1800*800
*1300
Final product diameter (mm) Ø 60 Ø 70 Ø 80 Ø 90

Localisation : Room A510 of SOKEYUFA Building NO.26 Jingliu Road, ZHENGZHOU, Henan Province, 450000 Zhengzhou,
Personne à contacter : Linda Liu, 0086 371 65866393
