Chain Grate Boiler in Sugar house| SZL assembly chain grate boiler

Introduction of Sugar Manufacturing Process

The bagasse produced after extracting the juice from sugar cane is used as fuel to generate steam in factories. Increasingly large amounts of bagasse are being made into paper, insulating board, and hardboard and so on.

Nowadays, harvesting of both cane and sugar beet is done primarily by machine, although in some states it is also done by hand. The harvested cane stalks and beets are loaded mechanically into trucks or railroad cars and taken to mills for processing into raw sugar. Once there, they are cleaned, washed, milled to extract juice, filtered, and purified. The result is a clear, sugar-filled juice.

After being purified, the clear juice undergoes vacuum evaporation to remove most of the water. In this process, four vacuum-boiling cells are arranged in series so that each succeeding cell has a higher vacuum. The vapors from one body can thus boil the juice in the next one, a method called multiple-effect evaporation. Next, the syrupy solution is vacuum-crystallized to form sugar crystals. The remaining liquid is removed using centrifugaling and drying, and the sugar is packaged.

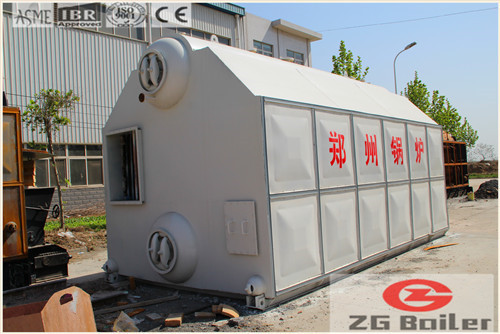

Introduction of SZL assembly chain grate boiler

Coal fired boiler are widely used in sugar manufacturing process, because its high stability and widely adaptability. SZL series shop assemble chain grate boiler is developed by our company independently, based on the features of field assemble boiler arch. SZL series assemble chain grate boilers adopt water-cooled arch technology and membrane water wall technology, which is domestic initiative. With strong overload capacity and wide fuel adaptability, this coal fired boiler can reach world advanced level. Besides, equipped with water-cooling arch and membrane water-cooling wall, this SZL boiler achieves more energy-saving and environmental friendly. Chain Grate Boiler in Sugar house, a smart choice to all sugar manufacturers.

Parameters of SZL assembly chain grate boiler

Type: SZL

Capacity: 4-25t/h

Hot Water: 2.8-14MW

SZL Pressure: 1.0-2.5Mpa

SZL Temperature: 194-226℃

Features of SZL assembly chain grate boiler

* with water wall tube

* applied different kinds of coal

* Inverted “α” arch furnace technology

* adopting membrane water-cooling wall structure

* higher heat transmission coefficient, good air tightness

* six independent air chambers to adjust the air volume and achieve the best combustion effect

Applications of SZL assembly chain grate boiler

This product is widely used in sugar manufacturing, textile, printing and dyeing, paper making, chemical industry, and food industry.

Main Customers:

SZL20-2.5-T Mongolia 20 ton chain grate boiler
