Ceramic Magnets

What Is Ceramic Magnet?

Ceramic (Ferrite) Magnet Is the Cheapest Industry Magnets

Due to relatively low-cost raw materials and an uncomplicated production process, permanent ceramic ferrite magnets are considered the most cost-effective industrial magnet with the highest output. These ceramic neodymium bar magnets, also referred to as ceramic magnets, are presently the most common permanent magnetic material employed. Ferrite magnets are utilized in various applications, from motors and speakers to toys and other consumer and industrial products.

Ceramic (Ferrite) Magnet Is Rust (Corrosion) Resistant Magnet

Do ceramic magnets rust? Ferrite (ceramic) magnets exhibit excellent resistance to rust and corrosion, even when submerged in water. They are highly resistant to the harmful effects of a range of substances, including dilute acids, alkaline solutions, organic solvents, and certain hydroxides. These hard ferrite magnets attributes make them ideal for use in saline environments, as they are not susceptible to corrosion at all. Typically, the surface of ferrite magnets does not require any electroplating treatment or protective coating.

Ferrite Permanent Ceramic Magnet Has Medium Magnetic Strength

The magnetic energy product of ferrite magnets typically ranges from 1.1MGOe to 4.0MGOe. In comparison to rare earth magnets, ferrite magnets possess a relatively weak magnetic force, although their magnetic force is stronger in comparison to various other soft magnetic materials. As such, magnets ferrites are regarded as a permanent magnet material with medium magnetic strength. By utilizing ferrite magnets, significant cost savings can be achieved when a very strong magnetic force is not required.

All Types Ceramic (Ferrite) Magnets For Sale-What We Can Do On Permanent Ferrite Magnets

We can provide a wide range of sizes for ceramic magnets without incurring any mold fees, which include ceramic discs, ceramic blocks (rectangular and square), and ceramic rings. A majority of rectangular and square ceramic blocks can be readily dispatched within a short timeframe. Moreover, we can customize ceramic magnets to match your unique specifications. Please reach out to us by submitting a quotation request or contacting us directly to inform us of your requirements. Our team will ascertain the most cost-effective solution for your project.

Details of Ceramic Magnets

Ceramic magnets (also referred to as ferrite magnets) are sintered permanent magnet materials made from SrO or BaO, and Fe2O3. MEANK ceramic magnets are made of high-quality materials and are reliable and durable. This material can be categorized into anisotropic and isotropic ceramic magnets. The anisotropic ferrite magnet requires magnetization in one direction, while the isotropic type can be magnetized in any direction. Although the magnetic energy product of ferrite magnets ranges from 1.1moe to 4.0moe, making them less magnetically powerful than other permanent magnets, they exhibit strong anti-demagnetization properties and are available at a lower cost.

What Are Ceramic Magnets Used For

Ceramic (ferrite) magnets have excellent oxidation resistance and usually do not need additional protective coatings. They are the lowest cost hard magnets available at present. They are the first choice for all kinds of consumer goods and industrial applications. Common applications of ceramic magnets include:

School Projects

· Security Systems

· Office Organization

· Loud Speakers

· Sweeper Magnets

· Home Decor

· Guitar Pick-Ups

· Crafting Projects

· Retail Displays

· Eddy Current Devices

· Model Making

· Lifting Machinery

· Breaks & Clamps

· DIY Home Projects

· Fridge Magnets

· Motors & Generators

· Science Experiments

· Apparel

· Switches

· Classroom Displays

· Whiteboards

· Relays

· Store Signage

· Promotional Gifts & more

Types Of Permanent Ceramic (Ferrite)Magnets

Ceramic Arc Magnets

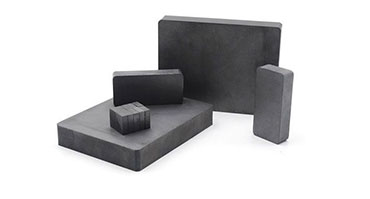

Ceramic Block Magnets

Ceramic Disc Magnets

Ceramic Ring Magnets

Ceramic Cylinder Magnets

Ceramic Channel Magnets

Ferrite (Ceramic) Magnet Material Grades & Magnetic Properties

Material Grade

Br

HcB

HcJ

(BH)max

Work Temp

China Standard

IEC standard

mT

kA/m(min.)

kA/m(min.)

kJ/m(min.)

℃(max.)

Y10T

HF 8/22

200-235

125-160

210-280

6,5-9,5

250

Y20

HF 20/19

320-380

135-190

140-195

18,0-22,0

250

Y22H

HF 20/28

310-360

220-250

280-320

20,0-24,0

250

Y23

HF 22/30

320-370

170-190

190-230

20,0-25,0

250

Y25

HF 24/16

360-400

135-170

140-200

22,5-28,0

250

Y26H

HF 24/23

360-390

220-250

225-255

23,0-28,0

250

Y26H-2

HF 24/35

360-380

263-288

318-350

24,0-28,0

250

Y28

HF 26/16

370-400

175-210

180-220

26,0-30,0

250

Y25H

HF 26/18

360-390

175-215

215-230

24,0-27,0

250

Y28H

HF 26/24

380-400

240-260

250-280

27,0-30,0

250

Y28H-2

HF 26/26

360-380

270-295

380-405

26,0-30,0

250

Y30

HF 28/16

380-385

190-210

200-220

26,0-28,0

250

Y30BH

HF 28/28

380-400

230-275

235-290

27,0-32,0

250

Y30H-2

HF 30/26

395-415

275-300

310-335

28,5-32,5

250

Y32

HF 32/17

400-420

160-190

165-195

30,0-33,5

250

Y33

HF 32/22

410-430

220-250

225-255

31,5-35,0

250

Y33H

HF 32/25

410-430

240-270

250-275

31,5-35,0
