Centerless Diamond Grinding Wheel
Quantité : 3000/month Prix : 10,00 €

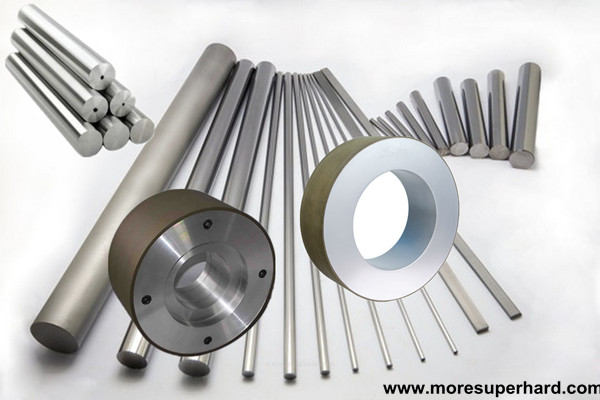

Centerless Diamond Grinding Wheel
Centerless grinding is an OD (outer diameter) grinding process. The centerless grinding wheel is used for peripheral grinding of workpieces .
It is mainly for rough, semi-finish and finish grinding of cemented carbide bars ,PDC cylinders, tungsten carbide, ceramics, magnetic material, stainless steel bar, PCD and PCBN composites.
Centerless wheels for the centerless grinding machines:
Centreless (centerless) grinding can perform excellent roundness of the work piece.The workpiece is supported by a work rest blade and set between a rubber regulating wheel that rotates the workpiece and a rotating grinding wheel.
The mainly centerless grinding machines: Koyo, Crystec, Dedtru, Landis , Okuma, Paragon, Royal Master, Unison, WMV and so on.
Specification of centerless grinding wheels:
|
6A1 |
D（mm） |
H(mm) |
T(mm) |
X（mm） |
|
200 |
75 |
50 |
5、10 |
|
|
305 |
120 |
150 |
5、10 |
|
|
350 |
127 |
125 |
5、10 |
|
|
400 |
203 |
150 |
5、10 |
|
|
455 |
228.6 |
205 |
5、10 |
|
|
500 |
127 |
125、150、200 |
5、10 |
|
|
600 |
305 |
200、400、600、 |
10 |
|
|
Note: Other specification can be produced according to customers' requirement . Email: anna.wang@moresuperhard.com |
||||
