CCS Flat Bar
Prix : 10-30USD
The most superior performance of copper-clad flat steel is the increased grounding surface area, which has improved the electrical conductivity of the horizontal grounding body, thus saving grounding materials.
Copperweld Bar-6 Meter Production Process
Copper-clad flat steel is produced by electroplating process, which realizes the high combination of copper and steel, that is, the 99.99% electrolytic copper molecule is uniformly plated on the surface of the steel core.
CCS Flat Bar-6 Meter Corrosion Resistance
The copper-clad flat steel has excellent anti-corrosion performance. Since the surface of the steel core is uniformly covered by copper and the copper layer is thick, it can be produced according to customers' requirements with the service life more than 20 years.
CCS Flat Bar-6 Meter Better Conductivity
The most superior performance of copper-clad flat steel as the grounding wire is due to the large grounding area of the copper-plated flat steel. Therefore, it has better electrical conductivity and its own resistance is much lower than that of conventional materials.
CCS Flat Bar-6 Meter Wider Range of Application
Copper-clad copperweld flat steel can be used as lightning strip, up lead or down lead, and horizontal grounding wire, which is suitable for soil conditions with different humidity, temperature and PH.
Safe and fast installation

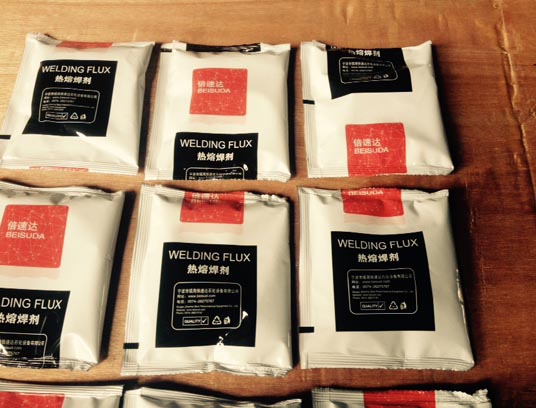

During the construction of copper-clad copperweld flat steel, it is recommended to use hot-melt flux produced by beisuda company to connect, because the permanent joint connection is more firm and the installation is convenient, which has greatly improved the construction efficiency.
Cost Reduction
Because of its relatively wide characteristics, copper-clad copperweld flat steel is used as grounding conductor and since its grounding contact area is large, the conductivity has been effectively enhanced, thus greatly reducing the cost of grounding compared with the traditional pure copper material.
CCS Flat Bar-6 Meter Specification Details
Model No. |
Specifications(mm*mm) |
Copper layer(mm) |
|
BSD-GW-F425 |
25*4 |
0.25 |
0.1 |
BSD-GW-F440 |
4*40 |
0.25 |
0.1 |
BSD-GW-F550 |
5*50 |
0.25 |
0.1 |
BSD-GW-F660 |
6*60 |
0.25 |
0.1 |
BSD-GW-F880 |
8*80 |
0.25 |
0.1 |
Ningbo Zhenhai Beisuda Petrochemical Equipment Co.,Ltd located in Ningbo, Zhejiang, it is a professional earthing cable manufacturers,we provide copper clad steel earth rod,copper clad earth rod,copper clad steel ground rod,copper clad steel grounding conductor,copper clad ground wire,want to know what is an earth rod or more about us ,please contact us.
