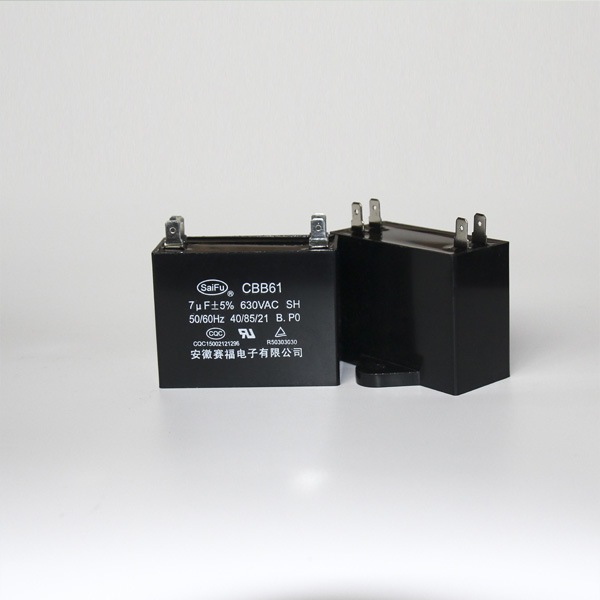

CBB61 Fan Capacitor with 4 Pins
Quantité : 300000pcs/
CBB61 film capacitor is a machine suitable for the starting and running of single-phase motors with a frequency of 50HZ AC power supply, and can also play a role in speed regulation of the motor. It is characterized by plastic shell encapsulation, good appearance consistency; small high frequency loss, suitable for large current; high insulation resistance, good self-healing and long life. It is an important supporting component for electric fans, range hoods, air-conditioning fans, and bread machines.
Specification of CBB61 Fan Capacitor with 4 Pins
|
Reference standards |
GB/T 3667.1（ IEC60252-1） |
|
Climatic category |
40 / 70 / 21, 40 / 85 / 21 |
|
Class of operation |
Class B (10000h) Class C (3000h) |
|
Class of safety protection |
S0 /S3 |
|
Voltage range |
250VAC, 370VAC, 440VAC, 450VAC |
|
Capacitance range |
1～35μF |
|
Capacitance tolerance |
± 5% , ± 10%, ± 15% |
|
Dissipation factor |
20 x10-4 (100Hz,20°C) |
|
Test voltage terminal to terminal UTT |
2Un for 2 seconds |
|
Test voltage terminal to case UTC |
(2Un+1000)VAC or 2000VAC- 50Hz for 60 seconds |
|
Insulation resistance |
≥3000s (100Hz，20°C，1min) |
Structure of CBB61 Fan Capacitor with 4 Pins
The capacitor core is wound by the metalized organic film.
Plastic shell, flame retardant epoxy resin potting, single capacitor core, or multi-capacitor core can be installed in one shell.
The installation components include plastic ears and iron ears.
The lead-out methods include plastic-encapsulated leads, tinned copper pins, quick-connect terminals, soldering lugs, etc.
Dimensions(mm):
|
Specifications |
450VAC |
250VAC |
|
1μF |
37×13×23 |
37×13×23 |
|
1.2μF |
37×13×23 |
37×13×23 |
|
1.5μF |
37×14×25 |
37×13×23 |
|
2μF |
37×16×28 |
37×13×23 |
|
2.5μF |
37×18×28 |
37×14×25 |
|
3μF |
47×18×29 |
37×14×25 |
|
3.5μF |
47×18×34 |
37×16×28 |
|
4μF |
47×18×34 |
37×16×28 |
|
4.5μF |
47×22×34 |
37×16×28 |
|
5μF |
47×22×34 |
37×18×28 |
|
5.5μF |
47×22×34 |
37×18×28 |
|
6μF |
47×22×34 |
47×18×29 |
|
6.5μF |
48×26×38 |
47×18×29 |
|
7μF |
48×26×38 |
47×18×29 |
|
8μF |
48×26×38 |
47×18×34 |
|
10μF |
58×26×44 |
47×22×34 |
|
12μF |
58×26×44 |
47×22×34 |
|
15μF |
58×26×44 |
47×22×34 |
|
16μF |
58×26×44 |
48×26×38 |
|
20μF |
58×35×49 |
48×26×38 |
|
25μF |
58×35×49 |
48×26×38 |
|
30μF |
negotiable |
58×26×44 |
|
35μF |
negotiable |
58×26×44 |
Note: Other specifications、size and terminal outside the table are negotiable.
Features of CBB61 Fan Capacitor with 4 Pins
Widely applied to the starting and running of AC single-phase motors at 50Hz/60Hz frequency power.
Self-healing property.
Good stability and reliability.
As a capacitor company, we can provide kinds of capacitor wholesale, anything you need, please contact us.
