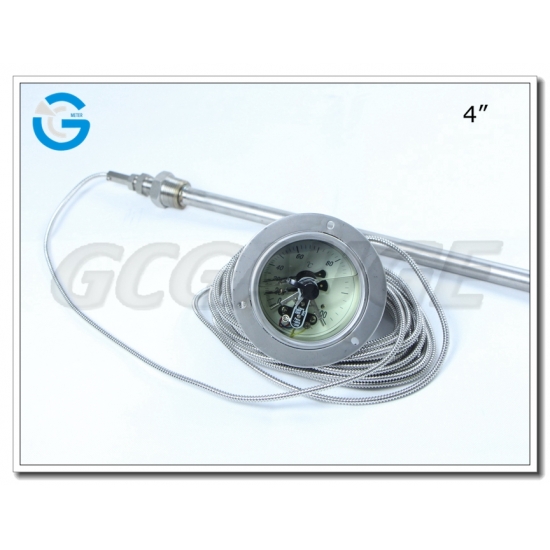

Capillary Type Electric Contact Temperature Pressure Gauges
For capillary type pressure gauge , we have capillary type bimetal thermometers and electric contact temperature GC gauge.
Specifications of Capillary Type Electric Contact Temperature Gauges
|
Dial |
2.5", 4”, 6” |
|
Case |
Stainless steel with flange or U-clamp |
|
Lens |
Common glass or Safety glass,PC |
|
Ranges |
Minimum: 0～0.1Mpa |
|
Maximum: 0-100Mpa |
|
|
Minimum negative pressure: -0.1Mpa |
|
|
Maximum negative pressure: -0.1～2.4Mpa |
|
|
Accuracy Class(Indication) |
2.50% |
|
Operating Temperature |
maximum 75% of full scale value |
|
Quantity of Contacts |
1 or 2, (Φ 100mm, 3 or 4 contacts available) |
|
Maximum Working Voltage |
AC380V or DC220V |
|
Maximum Current |
1A |
|
Contact Power |
30VA |
|
Connection Size |
M20 × 1.5 Customized connection |
|
Protection Class |
IP 65 |
|
Immersion tube |
SS304 or SS316L, max. length 1m |
|
Immersion diameter |
6.35mm, 8mm, 10mm, 12mm |
|
Capillary diameter |
MAX. 50m |
We also have kinds of digital pressure gauge for sale, if you have needs, please leave us a message.
