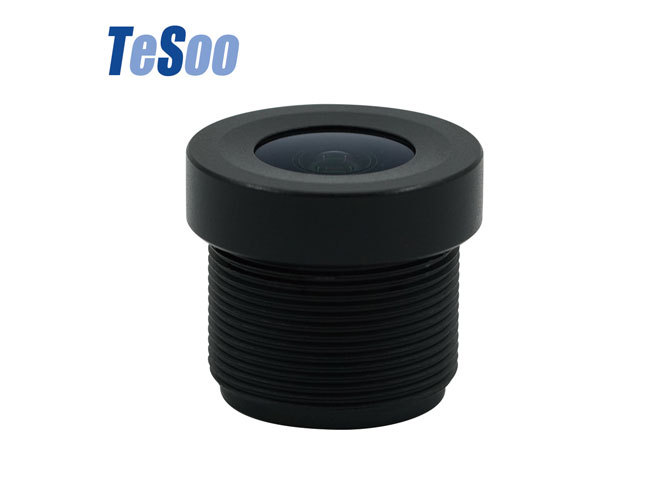

Camera Lens Front View
Tesoo lens front view generally meet the characteristics of wide angle, high relative illumination, high light and other features. The sensor size of camera lens front view is 1/2.3'' to 1/3''. TTL: 15.71-23mm. EFL: 2.20-3.65mm. F.NO: 1.8/2.0/2.2/2.4. Get camera lens front view quote now!
Specifications of Camera Lens Front View
|
PART No. |
TS-2316M-A00 |
|
|
TTL |
15.91mm |
|
|
EFL |
3.65mm |
|
|
F/NO |
2.0 |
|
|
MBFL |
3.68mm |
|
|
SENSOR SIZE |
1/3'' |
1/2.7'' |
|
FOV |
FOV |
|
|
(D) |
108° |
120° |
|
(H) |
88° |
97° |
|
(V) |
48° |
52° |
|
TV-DISTORTION |
＜-16% |
＜-18% |
|
MAX IMAGE CIRCLE |
φ8.20mm |
|
|
Mount |
M12*0.5 |
|
|
CONSTRUCTION |
All Glass +Metal |
|
|
DIAMENSIONS |
φ14*12.23 |
|
|
Operating temp. |
-40 ~ +85℃ |
|
|
Storage temp. |
-40 ~ +90℃ |
|
|
PART No. |
TS-2717O-A00 |
|
|
TTL |
16.81mm |
|
|
EFL |
3.20mm |
|
|
F/NO |
2.2 |
|
|
MBFL |
3.68mm |
|
|
SENSOR SIZE |
1/3'' |
1/2.7'' |
|
FOV |
FOV |
|
|
(D) |
128° |
150° |
|
(H) |
105° |
118° |
|
(V) |
54° |
60° |
|
TV-DISTORTION |
＜-26% |
＜-32% |
|
MAX IMAGE CIRCLE |
φ6.90mm |
|
|
Mount |
M12*0.5 |
|
|
CONSTRUCTION |
All Glass +Metal |
|
|
DIAMENSIONS |
φ14*13.13 |
|
|
Operating temp. |
-40 ~ +85℃ |
|
|
Storage temp. |
-40 ~ +90℃ |
|
|
PART No. |
TS-2716N-A00 |
|
|
TTL |
15.71mm |
|
|
EFL |
3.20mm |
|
|
F/NO |
2.0 |
|
|
MBFL |
3.13mm |
|
|
SENSOR SIZE |
1/3'' |
1/2.7'' |
|
FOV |
FOV |
|
|
(D) |
128° |
146° |
|
(H) |
106° |
117° |
|
(V) |
56° |
60° |
|
TV-DISTORTION |
＜-26% |
＜-30% |
|
MAX IMAGE CIRCLE |
φ6.90mm |
|
|
Mount |
M12*0.5 |
|
|
CONSTRUCTION |
All Glass +Metal |
|
|
DIAMENSIONS |
φ14*12.58 |
|
|
Operating temp. |
-40 ~ +85℃ |
|
|
Storage temp. |
-40 ~ +90℃ |
|
|
PART No. |
TS-2323O-A17 |
|
|
TTL |
23mm |
|
|
EFL |
3.20mm |
|
|
F/NO |
1.8 |
|
|
MBFL |
5.91mm |
|
|
SENSOR SIZE |
1/2.7'' |
1/2.3'' |
|
FOV |
FOV |
|
|
(D) |
124° |
152° |
|
(H) |
107° |
117° |
|
(V) |
59° |
86° |
|
TV-DISTORTION |
＜-25% |
＜-30% |
|
MAX IMAGE CIRCLE |
φ8.20mm |
|
|
Mount |
M12*0.5 |
|
|
CONSTRUCTION |
All Glass +Metal |
|
|
DIAMENSIONS |
φ17*17.09 |
|
|
Operating temp. |
-40 ~ +85℃ |
|
|
Storage temp. |
-40 ~ +90℃ |
|
|
PART No. |
TS-2717R-A00 |
|
|
TTL |
16.60mm |
|
|
EFL |
2.70mm |
|
|
F/NO |
2.4 |
|
|
MBFL |
3.86mm |
|
|
SENSOR SIZE |
1/3'' |
1/2.7'' |
|
FOV |
FOV |
|
|
(D) |
160° |
176° |
|
(H) |
132° |
140° |
|
(V) |
67° |
71° |
|
TV-DISTORTION |
＜-32% |
＜-45% |
|
MAX IMAGE CIRCLE |
φ6.90mm |
|
|
Mount |
M12*0.5 |
|
|
CONSTRUCTION |
All Glass+Metal |
|
|
DIAMENSIONS |
φ14*12.74 |
|
|
Operating temp. |
-40 ~ +85℃ |
|
|
Storage temp. |
-40 ~ +90℃ |
|
|
PART No. |
TS-2518S-A00 |
|
|
TTL |
17.89mm |
|
|
EFL |
2.55mm |
|
|
F/NO |
2.4 |
|
|
MBFL |
3.55mm |
|
|
SENSOR SIZE |
1/2.7'' |
1/2.5'' |
|
FOV |
FOV |
|
|
(D) |
160° |
176° |
|
(H) |
136° |
150° |
|
(V) |
74° |
85° |
|
DISTORTION(F-θ) |
＜-8% |
＜-9.7% |
|
MAX IMAGE CIRCLE |
φ7.70mm |
|
|
Mount |
M12*0.5 |
|
|
CONSTRUCTION |
All Glass +Metal |
|
|
DIAMENSIONS |
φ14*14.34 |
|
|
Operating temp. |
-40 ~ +85℃ |
|
|
Storage temp. |
-40 ~ +90℃ |
|
|
PART No. |
TS-2818S-A00 |
|
|
TTL |
16.64mm |
|
|
EFL |
2.20mm |
|
|
F/NO |
2.0 |
|
|
MBFL |
2.16mm |
|
|
SENSOR SIZE |
1/3'' |
1/2.7'' |
|
FOV |
FOV |
|
|
(D) |
170° |
188° |
|
(H) |
148° |
160° |
|
(V) |
80° |
85° |
|
DISTORTION(F-θ) |
＜-8.2% |
＜-9.8% |
|
MAX IMAGE CIRCLE |
φ6.90mm |
|
|
Mount |
M12*0.5 |
|
|
CONSTRUCTION |
All Glass +Metal |
|
|
DIAMENSIONS |
φ14*14.48 |
|
|
Operating temp. |
-40 ~ +85℃ |
|
|
Storage temp. |
-40 ~ +90℃ |
|
As one of optical lenses manufacturers, we have types automotive lens for sale, if you have needs, please contact us.
