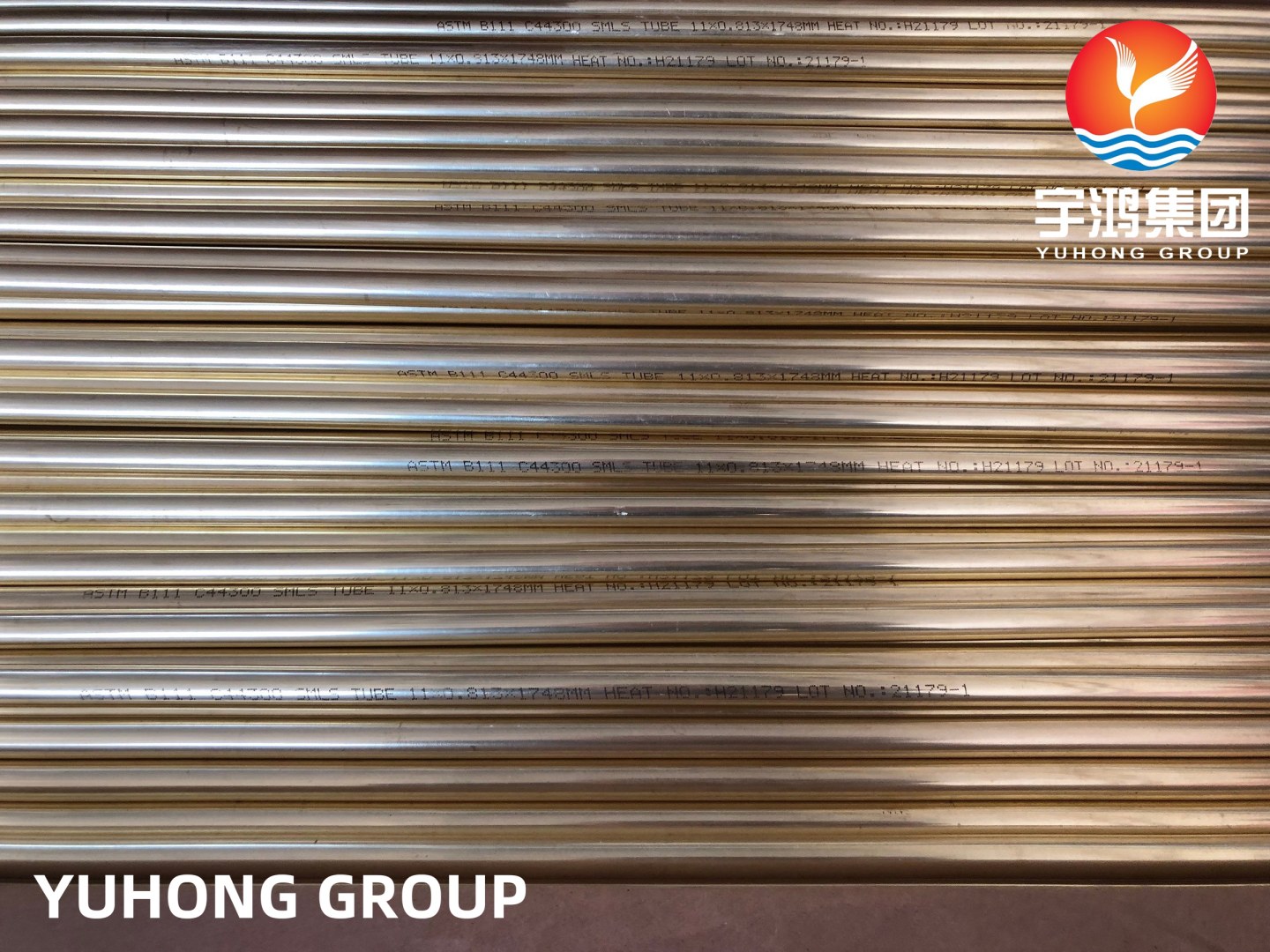

C44300 COPPER ALLOY STEEL TUBE
Quantité : 1000TONS/M Prix : $5-100/kg
ASTM B111 C44300 tube is widely used in the surface condenser, heat exchanger, and evaporators. The C44300 tube offers high strength, excellent corrosion resistance, and good creep resistance at elevated temperatures.
SB111 C44300 TUBE SPECIFICATION
COUNTRY |
STANDARD |
NAME |
ASTM |
ASTM B111 |
Copper and Copper-Alloy Seamless Condenser Tubes and Ferrule Stock |
GB/T |
GB/T8890 |
Seamless Copper Alloy Heat Exchanger Tubes |
BS |
BS2871 |
Copper and Copper Alloys Tubes |
JIS |
JIS H3300 |
Copper and Copper Alloy-Seamless and Tubes |
DIN |
JIS H3300 |
Wrought Copper and Copper Alloy Tubes for Condensers and Heat Exchangers |
SB111 C44300 TUBE CHEMICAL COMPOSITION
Composition |
Elements |
|||||
|
Cu(1) |
Pb |
Sn(2) |
Zn |
Fe |
As |
(1)CU+ Sum of Named Elements 9.69 min. |
||||||
(2)For tubular produts the minimum Sn content may be 0.9% |
||||||
Min (%) |
70 |
|
0.8 |
|
|
0.02 |
Max (%) |
73 |
0.07 |
1.2 |
Rem |
0.06 |
0.06 |
SB111 C44300 TUBE PHYSICAL PROPERTIES
Melting Point- Liquidus°F |
1720 |
Melting Point. Solidus °F |
1650 |
Density lb/coin. at 68°F |
0.308 |
Specific Gravity |
8.53 |
Electrical Conductivity% IACS at 68°F |
25 |
Thermal ConductivityBtu/sq ft/ ft hr/°F at 68°F |
64 |
Coefficient of Thermal Expansion 68-57210 to -6 power per °F (68- 572*F) |
11.2 |
Specific Heat CapacityBtu/lb/F at 68°F |
0.09 |
Modulus of Elasticity in Tensionksi |
16000 |
Modulus of Rigidityksi |
6000 |
SB111 C44300 TUBE HIGHLIGHTS
SB111 C44300 material has the following benefits: Durability – The structure and chemical composition of an SB111 C44300 make it durable. This kind of ASTM B111 tube can last up to 10 years, depending on where you are using them and the frequency of use.
WHAT IS THE DIFFERENCE BETWEEN SB111 C44300 TUBE AND THE SB111 C70600 PIPE?
The main difference between the SB111 C44300 tube and astm b111 c70600 lies in the material composition and their specific applications. Here are the key distinctions:
SB111 c44300 and c70600 Material Composition:relative's mechanical properties provide sufficient strength and resistance to withstand moderate pressures and temperatures.
Cost-Effectiveness: Admiralty Brass is often considered a cost-effective choice due to its availability, relatively low material cost, and ease of fabrication. This makes it an attractive option for various industries.
If you want to know more kinds of ss and tubes, please visit our website.
