BW160/10 Horizontal Three Cylinder Reciprocating Single Acting Piston Pump

BW series mud pump is widely used in mining, drilling, coal, railway, highway, water conservancy and hydropower, bridges, high-rise buildings, foundation reinforcement work.

Advanced product design, reasonable structure, high pressure, flow,multi-file variable, energy-saving, light volume, efficiency, plant life, sage operation, easy maintenance.

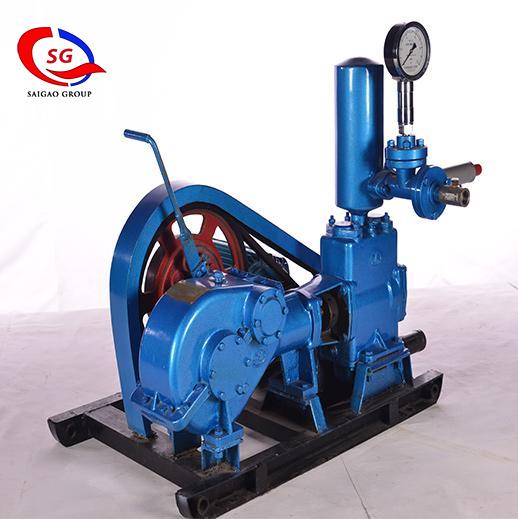

The BW-160/10 grouting pump consists of pump head, pump body, clutch, protective cover, belt and power drive, frame, air chamber and pressure gauge device, water filter and other components. The power generated by the electric motor is transmitted to the pump body through the belt and the clutch, and becomes a linear reciprocating motion of the piston through the rotary motion of the crankshaft connecting rod, thereby controlling the opening and closing of the steel ball in the pump head to perform the suction and discharge work.

The pump head is the main component of the grouting pump. It consists of three single-acting hydraulic cylinders connected in parallel with a common suction and discharge chamber. The components on both sides of the suction and discharge chambers can be replaced as needed.

The three cylinder reciprocating pump body is the main component of the power end of the grouting pump. The main function is to realize the shifting and power transmission of the mud pump, the gear shifting mechanism, the crankshaft linkage mechanism, the piston, the crosshead, etc., which can convert the rotary motion of the crankshaft into the straight line of the piston. Reciprocating motion.

The clutch is a device for engaging or separating the power of the grouting pump, or when the power is not stopped and the mud pump needs to be operated at shifting or no-loading, the clutch disengagement can be realized. When the mud pump is overloaded, the friction plate can be used to protect the pump from overload. The engagement or disengagement of the clutch is controlled by the clutch handle, the handle is disengaged from the clutch, and the handle is engaged downward.

Features of BW160/10 Horizontal Three Cylinder Reciprocating Single Acting Piston Pump:

BW-160/10 mud pump can be used for geological core drilling, chemical liquid transportation, mine drainage and soft foundation grouting;

With four different flow rates and pressures, the range of variation is large, and the scope of application is wide;

Compact structure, lightweight, small size and beautiful appearance, which can be driven by hydraulic motor, motor and diesel engine;

Standardization of parts and components, a high degree of generalization, convenient maintenance and operation;

Consumable parts have a long service life and high reliability.

Saigao Group specializing in design, research and development, processing and manufacturing, sales and export of machinery equipment, with leading products comprising various kind of mud pumps, down-hole motors, any kinds of screen , cementing tools as well as any kinds of wellhead equipment.
