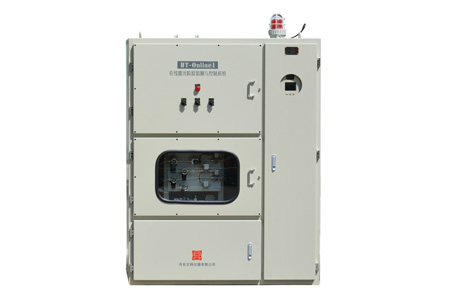

BT-Online1
Online Particle Size Analyzer
BT-Online1 Online Particle Size Analyzer is an on-line particle size monitoring system for real-time particle size monitoring and control in powder manufacturing industries. Driven by Standard Operation Procedure (SOP), it automatically samples, measures, recovers and processes data directly from the powder delivery pipeline, providing 24-hour particle size detection and control for a variety of dry powder production lines.
Measurement: Particle size
Particle size range: 0.1 to 1000µm
Dispersion type: Dry
Technology: Laser diffraction
Features and Benefits
Measuring range: 0.1 - 1000 µm
Repeatability: ≤3% (GBRM D50)
Accuracy: ≤3% (GBRM D50)
SOP: Standard Operation Procedure
Detectors: 68 pieces
Test speed: ≤1 min
High-performance semiconductor laser with long lifespan
Automatic Alignment
Automatic Centering
Performance
1. Real-time Control System
As well as being able to continuously monitor particle size, the system also has a function for real-time feedback and control. The system will collect real-time size data and perform calculations against the particle size control limits. It automatically generates the feedback signal to the control center. This closed loop feedback control system will achieve better quality improvement, higher efficiency, reduce wastage and save energy.
2. Automatic Centering Guarantees perfect conditions of the optical system
By moving the laser detector center point to the focus point of the lens before each test, the automatic centering function guarantees perfect conditions of the optical system, therefore providing accurate and repeatable testing results.
This function maintains operating parameters at consistent conditions, producing consistent and reproducible measurement across the board for all instruments, old and new.
4. Reliable Sampling System
Sample dispersion is achieved by accelerating the powder through a venturi. The "backflush" and tapered pipe design prevents blockage of the sampling tube, and keeps the residual powder clean, ensuring the accuracy and continuity of real-time testing.
5. Versatile Functionality of the System
The system has power interruption protection and over-pressured protection functions. Under these abnormal operating conditions, it will initiate an automatic shutdown
sequence to protect the system from harm. The electrical and mechanical system of the BT-online1 has robust interference protections; it is ready for the haphazard nature of a production environment and an electromagnetic interference prone environment.
6. Contamination Prevention Optics System
Using the controlled principle of aerodynamics, we devised the double air-cushion lens protection system. The contamination prevention technology will form an invisible double air shield between the sample stream and the lens, eliminating the optics from contamination from sampling, as well as a dust-prone environment. With this technology, the ultimate goal of a long duration of sustainable operation, providing real-time, continuous particle size monitoring and control can be realized. Accuracy and continuous monitoring of the production data can be achieved.
Specification
BT-Online 1 |
|
Particle size distribution |
Dry powder |
Theory |
Laser diffraction |
Analysis theory |
Mie and Fraunhofer |
Typical interval measurement time |
≥1 min |
Measurement range |
0.1 - 1000µm |
Number of size classes |
88 customized grades |
Accuracy |
≤3% (GBRM D50) |
Repeatability |
≤3% (GBRM D50) |
Resolution ratio |
Single peak, double peak, multi-peak |
Red light |
Max. 3mW, Semiconductor optical fiber laser, 635nm |
Lens arrangement |
Single lens |
Lens design |
F-Theta Lenses |
Effective focal length |
223mm |
Arrangement |
Log-spaced array |
Quantity |
68 pieces |
Light path adjustment |
Intelligent automatic alignment |
Dispersion type |
Dry |
Air flowrate |
400-6000L/min |
Pressure |
0.5-0.8MPa |
Air filter |
0.3µm, 0.01µm, water, oil |
21 CFR Part 11 |
Enable |
SOP Designer |
Enable |
Report |
More than 14 formats report |
Auto test |
Enable |
Data export |
EXCEL, PDF, WORD, JPG and etc. |
Laser class |
Class I laser product |
Supply voltage |
220VAC |
Dimension |
800mm x 280mm x 280mm (L x W x H) |
Weight |
21kg |
Computer interface |
At least one USB2.0 port required |
Operation system |
Windows XP, Windows 7,8 or 10 |
Hardware specification |
Intel Core I5, 4GB RAM, 250GB HD |
Bettersize has become a significant player in the particle sizing business since 1995. We provide
Automated Imaging, Powder Characterization, particle measuring services, online particle size measurement, online particle size analysis, particle size monitor, particle size analysis of nanoparticles and so on. Want to know about laser particle sizing? Please contact us.
