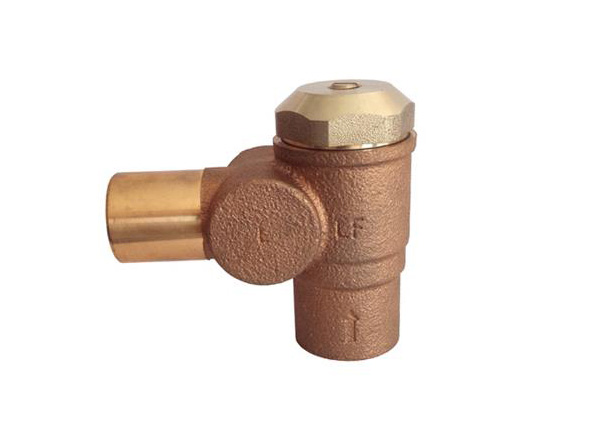

Bronze Pressure Reducing Valve

Prix : $0.1-$200

Th water pressure reducing valve is one of Carbo's best-sellers. As a professional bronze valve manufacturer, we produce valves whose body of the pressure regulator is made of bronze, with an internal thread and an external thread connection. This pressure reducing valve in hydraulic system will resist a 40 bar inlet pressure, reducing the inlet pressure to between 0.5 and 15 bar at the output. Because multiple pressure levels exist, the set pressure must be determined by you. The set pressure can also be adjusted by the water pressure reducing valve suppliers. The adjusting pressure reducing valve is used to safeguard home water supply systems, commercial and industrial installations from high water supply pressure. The pressure reduce valve is employed for liquid, gas, and compressed air applications, including drinking and process water supply, snowmaking equipment, and so on. Carbo also provides great quality gate valve for sale for different needs of our customers.

Bronze Pressure Reducing Valve Details:

The pressure reducing valve is a kind of bronze valve that reduces the inlet pressure to a certain required outlet pressure through adjustment, and relies on the energy of the medium itself to automatically keep the outlet pressure stable.

Bronze Pressure Reducing Valve Specifications

CB-2004 Pressure Reducing Valve

Material

Pressure

Operating temperature

P/N

Size

A

B

L

C

H

Bronze

400psi

-20℃≤T≤120℃

20041

1/2"

M39*2

39.5

101.5

54.5

109.5

20042

3/4"

M44*2

48.5

121

73

131

20043

1"

M44*2

48.5

121

73

131

CB-2150 Pressure Reducing Valve

Material

Pressure

Operating temperature

P/N

Size

H

B

L

Bronze

400psi

-20℃≤T≤120℃

21501

1/4"

143

47.8

92.2

21502

3/8"

143

47.8

92.2

21503

1/2"

143

47.8

95

CB-2105 Pressure Reducing Valve

Material

Pressure

Operating temperature

P/N

Size

H

B

L

Bronze

400psi

-10℃≤T≤110℃

21051

1/2"

117.6

41

98

21052

3/4"

120.4

43.4

100.5

21053

1"

120.4

54.6

119

CB-2106 Pressure Reducing Valve

Material

Pressure

Operating temperature

P/N

Size

H

B

L

D

N

Bronze

400psi

-10℃≤T≤110℃

12331

1/2"

120.4

45.9

91.8

12

9

12332

3/4"

120.4

46.8

93.6

17

13.5

12333

1"

120.4

50.3

100.6

21.8

18.2

Bronze Pressure Regulating Valve FAQs

What are the two types of pressure reducing valves?

According to the medium, there are many pressure reducing valve types that can be divided into steam pressure reducing valves, water pressure reducing valves, and gas pressure reducing valves. According to the structure, it can be divided into piston type, diaphragm type, direct-acting type, proportional type, etc. And according to the material, it can be divided into brass water pressure reducing valve and bronze pressure reducing valve.

What is the purpose of bronze pressure reducing valve?

Under certain conditions, the bronze pressure reduction valve can be utilized to prevent against water hammer. The water hammer occurrences are so fast that relieving stress necessitates using precise, rapid response valves explicitly created for the system. To achieve the goal of decompression, the flow velocity and kinetic energy of the fluid are adjusted by modifying the throttle area, resulting in variable pressure losses. Sometimes the backflow preventer device is also needed.

Do bronze pressure regulator valve wear out?

On one hand, the bronze check valve may have a long lifespan. The pressure decreasing valve, on the other hand, will not last indefinitely. Bronze pressure regulating valve is made of rubber pieces and springs that will wear out or become clogged with particles in the water over time. Bronze pressure regulator usually fails gradually over time. It may take some time for you to discover a problem, especially if your usage patterns aren't particularly demanding.

The Bronze Ball Valve Maintaining Tips

The bronze boiler drain ball valve is suitable for marine heating and air conditioning systems, central heating, water supply and water treatment, industrial and chemical, agricultural systems. The medium can be compressed air, oil and hydrocarbons. Installed in the middle and end of the pipeline, it can be opened frequently, effectively reducing fluid disturbance and head loss. Not suitable for steam system and flow regulation.

Before installing the bronze ball valve, apply silicone lubricant to all inner portions of the pressure reducing control valve, concentrating the application around the ball inside and the walls around the bulb. Silicone brass ball valve grease is safe for drinking water and is frequently used to lube O-rings inside pumps. After lubricating the ball valve and allowing the lubricant to dry, use PVC primer and adhesive to link the valve to the PVC permanently.

We also have kinds of press ball valve for sale, if you have needs, please visit our website.
