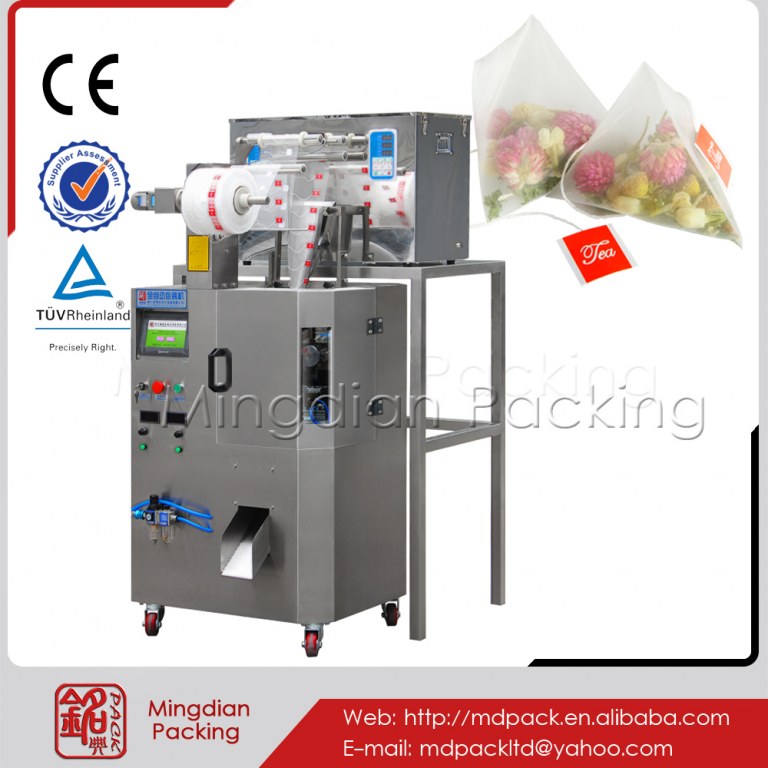

Broken tea triangle tea bag packing machine
China pyramid tea bag packing machine
Quantity: 1 set/sets Price: 8000-18000US$
mixed herb tea bag packing machine
Application:
This machine is used for pyramid tea packing for loose leaf tea and natural herb tea, such as green tea, black tea, dark tea, yellow tea, white tea,health tea or other small size material.
Features:
Low power consumption &Optimum functionalition & Robust Construction &Two Load Cells For Tea Blending
Technical Advantage:
1.Can switch from making pyramid bags to flat bags at the push of a button !
2. Packing Speed: 2000-3000bags/hours !
3. Nylon film with thread and tag can be used in this machine.
4. The choice of volume measurement, and electronic scales measuring for different packing content.
Electronic scales measuring is used for single type material,mutil-type material,irregular material or other material which can't be weighing by volume cup.
5. The whole working cycle logic and quality control are achieved by a Siemens PLC.
6. Operating flexibility through optional adjustment of technical parameters
7.Main motor overload as safety device, automatic adjustment device of film tension
9. Having the alarming for bad operation and stop running automatically
Technical Data:
|
Item |
MD-160-02 |
|
Packing Speed |
40-60Bags/Min(Exact will be determined by packing material) |
|
Filling Precision |
≤±2% (determined by packing material ) |
|
Bag Size |
60-80W*40-80Lmm |
|
Packing Film |
120mm,140mm,160mm |
|
Sealing Type |
Triangular Bags & Rectangular Bags |
|
Filling Range |
2-10ml |
|
Film Thickness |
0.04-0.06mm |
|
Film Material |
Nylon, Polyester net non-woven fabrics, or other ultrasonic sealing materials,ETC. |
|
Total Power |
2.2Kw |
|
Voltage |
Single 220V 50HZ |
|
Air Compressor |
Less than 1 cube |
|
Air Comsumption |
0.6Mpa 0.4m3/min |
|
Rolled Outer Diameter |
≤400mm |
|
Diamension |
870*1100*1700mm |
|
Diamension of Wooden Case |
1180*950*1710mm |
Our Machine Production Process

Sample
Nylon Pyramid Tea Bag


Nylon Flat Tea Bag
Sichuan Mingdian Automatic Euipment Co.,Ltd.
Contact : Justin Deng
Email: mdpackltd at yahoo.com
Skype: deng.justin72
