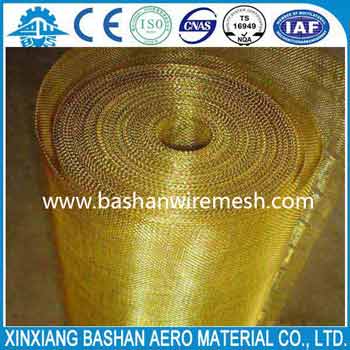

Brass Wire Mesh from China steel mesh manufacturers

Quantité : 10m2   Prix : USD 8.3/Square Meter

Product Description

China steel mesh manufacturers Brass Wire Mesh:

China steel mesh manufacturers Brass Wire Mesh
Material Copper, brass, tin bronze, phosphor bronze
General purpose 1,Copying newsprint, printing paper with 60 to 70 mesh copper mesh
2,Typing paper with 90 to 100 mesh copper network
Features

1,good corrosion resistance and wear resistance.

2,Phosphor bronze net, with superior tensile, bending force, wear resistance and 3,stretching force.

4,Brass mesh has appropriate tensile and extensibility, mesh habit per inch in the number of meridians for the mesh.

5,The smaller the mesh, the larger the mesh, the better the water filtration performance.

Detailed Images

The specifications of wire mesh:

Mesh NO. (mm)Aperture size (mm)Wire Dia Screening area (%) Mesh/inch (Kg/m²)
5# 4 1 64 5.08 2.52
6# 3.35 0.8 65 6.12 2.15
3.35 0.63 71 6.38 1.39
3.15 0.8 64 6.43 2.26
3.15 0.58 72 6.85 1.26
7# 2.8 0.71 51 7.24 2
2.8 0.56 69 7.56 1.3
2.5 0.62 64 8.12 1.71
2.5 0.5 69 8.47 1.16
8# 2.36 0.56 65 8.7 1.5
2.36 0.45 71 9.04 1
10# 2 0.5 64 10.2 1.69
2 0.45 59 10.6 1.18
1.9 0.6 58 10.2 2.01
1.9 0.5 63 10.6 1.46
1.8 0.45 64 11.3 1.26
12# 1.7 0.45 63 11.8 1.31
1.7 0.4 66 12.1 1.06
1.6 0.45 61 12.4 1.38
1.6 0.4 64 12.7 1.12
1.5 0.4 62 13.4 1.17
14# 1.4 0.4 60 14.1 1.24
1.4 0.355 64 14.5 1
1.32 0.4 59 14.8 1.3
1.25 0.4 57 15.4 1.35
1.25 0.315 54 16.2 0.88
16# 1.18 0.4 56 16.1 1.41
1.18 0.315 52 17 0.92
1.12 0.355 58 17.2 1.19
1.12 0.28 54 16.1 0.69
1.06 0.355 56 16 1.11
1.06 0.28 53 19 0.81
18# 1 0.355 54 18.8 1.3
1 0.25 54 20.3 0.69
0.95 0.355 53 19.5 1.35
0.9 0.355 51 20.2 1.4
20# 0.85 0.315 53 21.8 1.19
0.85 0.224 53 23.7 0.65
0.8 0.315 51 22.8 1.24
0.8 0.2 64 25.4 0.56
0.75 0.315 50 23.8 1.29
0.75 0.28 53 24.7 1.06
25# 0.71 0.28 51 25.7 1.11
0.71 0.2 61 27.9 0.61
0.67 0.28 50 26.7 1.15
0.63 0.25 51 28.9 0.99
0.63 0.2 58 30.8 0.68
30# 0.6 0.25 50 29.9 1.02
0.6 0.18 59 32.6 0.58
0.56 0.224 51 32.4 0.89
0.56 0.18 57 34.3 0.61
0.53 0.224 49 33.7 0.93
0.53 0.18 56 35.8 0.64
35# 0.5 0.224 48 35.1 0.98
0.5 0.16 57 38.5 0.54
0.475 0.16 53 38.9 0.55
0.45 0.18 51 40.3 0.72
0.45 0.14 58 43.1 0.46
40# 0.425 0.16 53 43.4 0.61
0.425 0.14 57 45 0.49
0.4 0.16 51 45.4 0.64
0.4 0.14 56 47 0.51
0.375 0.16 49 47.5 0.69
0.375 0.125 56 50.8 0.44
45# 0.355 0.14 51 51.3 0.55
0.355 0.125 55 52.9 0.45
0.315 0.14 49 55.8 0.6
0.315 0.125 51 57.7 0.49
50# 0.3 0.14 46 57.7 0.62
0.3 0.112 53 61.6 0.42
60# 0.25 0.125 44 67.7 0.58
0.25 0.1 51 72.6 0.4
0.236 0.125 43 70.4 0.61
0.224 0.125 41 72.8 0.63
0.224 0.09 51 80.9 0.36
70# 0.212 0.125 40 75.4 0.65
0.212 0.09 49 84.1 0.37
0.2 0.125 39 78.2 0.68
0.2 0.08 51 90.7 0.32
0.19 0.125 36 80.6 0.69
80# 0.18 0.125 35 83.3 0.74
0.18 0.071 51 101 0.28
0.17 0.112 36 90.1 0.62
0.17 0.063 53 109 0.24
0.16 0.112 35 93.4 0.64
0.16 0.063 51 114 0.25
100# 0.15 0.1 38 102 0.56
0.15 0.063 50 119 0.26
0.14 0.09 37 110 0.49
0.14 0.063 48 125 0.27
0.132 0.09 35 114 0.51
120# 0.125 0.09 34 118 0.53
0.118 0.05 36 128 0.18
0.112 0.08 34 132 0.46
0.112 0.063 41 145 0.32
140# 0.106 0.071 36 144 0.4
0.106 0.05 40 163 0.22
0.1 0.071 34 149 0.41
0.1 0.05 44 169 0.23
0.095 0.063 36 161 0.35
170# 0.09 0.063 35 166 0.36
0.09 0.05 40 181 0.25
0.085 0.056 36 180 0.31
0.08 0.056 36 187 0.32
0.08 0.04 44 212 0.19
200# 0.075 0.05 33 194 0.33
0.075 0.045 39 212 0.24
0.071 0.056 31 200 0.34
0.067 0.05 33 217 0.3
230# 0.063 0.045 34 235 0.26
0.063 0.04 37 247 0.22
0.06 0.045 33 242 0.27
0.056 0.04 34 265 0.23
270# 0.053 0.04 33 273 0.24
0.053 0.032 39 300 0.17
0.05 0.036 34 295 0.21
0.05 0.03 39 317 0.16
0.048 0.032 36 318 0.18
325# 0.045 0.036 31 314 0.22
0.045 0.028 38 348 0.11
0.04 0.03 32 363 0.18
400# 0.038 0.025 36 403 0.14
500# 0.025 0.025 31 508 0.14
0.028 0.022
600# 0.02 0.02 635 0.13

Note: Screen material: H68, H80, QSn6.5-0.4, SUS304, SUS316, SUS316L, SUS304HP
According to user requirements to provide screen to add series size.

China steel mesh manufacturers Brass Wire Mesh

Our Company:

Xinxiang Bashan Aero Material Co., Ltd.http://www.bashanwiremesh.com

In more than 62 years experience of metal wire cold drawing, metal wire mesh weaving and deep processing products,

Bashan company acquired 24 metal wire & mesh patents and took chief part of 19 standards, such as

GB/T4240, GB/T5330, GB/T6003, GJB107, HB1862, etc. (GB/T, national standard; GJB national

military defense standard; HB, aviation standard.)

Our Certifications:

1)Passed ISO9001: 2008 quality certificate
2)Passed ISO/TS16949: 2009 certificate
3)Passed GJB9001A-2001 military quality certificate.
4)Drafted GJB119.1A-119.4A-2001, GJB107-5110-2002, GB/T5330-2003,HB1862-93

Packing & Delivery:

SUS304 SUS316 Series Stainless Steel Wire Mesh

Our most professional packaging Transport of large trucks to the seaport
