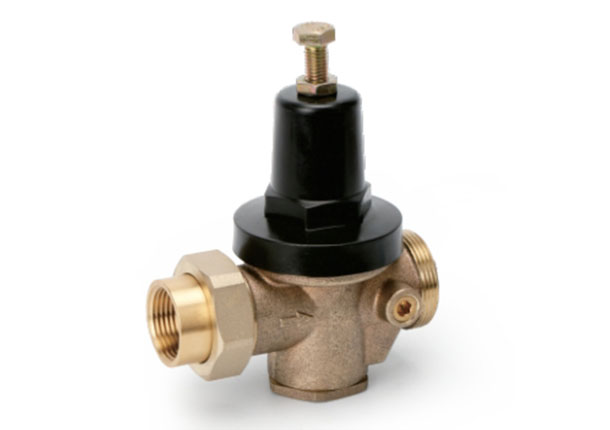

Brass Pressure Reducing Valve
The brass water pressure reducing valve is used to change the throttling area and change the fluid's flow rate and kinetic energy to prevent further pressure losses, achieving the goal of pressure reduction. The brass water pressure regulator with gauge is an automatic OEM brass ball valve that relies on the energy control of the medium itself and the adjustment of the regulating system to balance the fluctuation of the pressure behind the valve with the spring force so that the pressure behind the valve remains constant within a specific error range. Carbo also provides high-quality 1 2 in brass fpt x fpt pressure reducing valve and 3 4 in brass fpt water pressure reducing valve for different needs of our customers.
Brass Pressure Reducing Valve Details:
The adjusting pressure reducing valve produced by water pressure reducing valve manufacturers is usually positioned upright on a horizontal pipeline for ease of operation and maintenance.
Brass Pressure Reducer Specifications
Pressure |
Medium |
Temperature |
Product Information |
|||||
1.6MPa |
water, steam, noncorrosive liquid |
1. -20℃≤t≤80℃ |
1/2" |
3/4" |
1" |
1-1/4" |
1-1/2" |
2" |
Pressure |
Medium |
The highest temperature |
Maximum inlet pressure |
Product Information |
|||||||
1.6MPa |
water |
80℃ |
1.6MPa |
1/2" |
3/4" |
1" |
1-1/4" |
1-1/2" |
2" |
3" |
4" |
Material |
Pressure |
Operating temperature |
P/N |
SIZE |
H |
B |
L |
Bronze |
400psi |
-10℃≤T≤110℃ |
21051 |
1/2" |
117.6 |
41 |
98 |
21052 |
3/4" |
120.4 |
43.4 |
100.5 |
|||
21053 |
1" |
120.4 |
54.6 |
119 |
Material |
Pressure |
Operating temperature |
P/N |
SIZE |
H |
B |
L |
D |
N |
Bronze |
400psi |
-10℃≤T≤110℃ |
12331 |
1/2" |
120.4 |
45.9 |
91.8 |
12 |
9 |
12332 |
3/4" |
120.4 |
46.8 |
93.6 |
17 |
13.5 |
|||
12333 |
1" |
120.4 |
50.3 |
100.6 |
21.8 |
18.2 |
Material |
Pressure |
Operating temperature |
P/N |
SIZE |
DH |
H |
B |
L |
Bronze |
400psi |
-10℃≤T≤110℃ |
22031 |
1/2" |
16.1 |
120.4 |
61.5 |
121 |
22032 |
3/4" |
22.2 |
120.4 |
63 |
124.5 |
|||
22033 |
1" |
28.5 |
120.4 |
65.5 |
129 |
Material |
Pressure |
Operating temperature |
P/N |
SIZE |
L |
H |
Bronze |
400psi |
-10℃≤T≤110℃ |
22131 |
3/8" |
101.6 |
165.5 |
22132 |
1/2" |
105 |
165.5 |
|||
22133 |
3/4" |
109 |
165.5 |
|||
22134 |
1" |
112 |
165.5 |
Material |
Pressure |
Operating temperature |
P/N |
SIZE |
H |
B |
C |
G |
L |
F |
Bronze |
400psi |
-20℃≤T≤180℃ |
22131 |
1/2" |
130.3 |
35.2 |
43 |
41.2 |
134.5 |
23.39 |
22132 |
3/4" |
130.3 |
35.2 |
43 |
41.2 |
134.5 |
17.78 |
Brass Water Pressure Reducing Valve Benefits
The internal thread is connected to the brass pressure reducing valve, which has a compact size. The brass inline water pressure regulator with gauge is easy to install and other features, and with a built-in filter, which can facilitate the overall installation operation, avoid clogging by debris and make it safer and more reliable.
The unvented pressure reducing valve produced by our factory is a direct-acting adjustable pressure reducing valve. Using diaphragm type hydraulic operation can be installed horizontally or vertically in water supply, fire fighting system, or other clean water systems. The outlet pressure of the brass ball valves for water can be controlled to a relatively fixed value within a particular flow range. Both the dynamic and static pressure is reduced, and the operation is stable, with no noise, no vibration, water hammer reduction, and pipe network protection.
The proportional pressure reducing valve is suitable for installation at any angle. Lightweight, small size, convenient installation, and maintenance.
If you are looking for a reliable brass valve factory, please choose us, and we will be your best partner.
