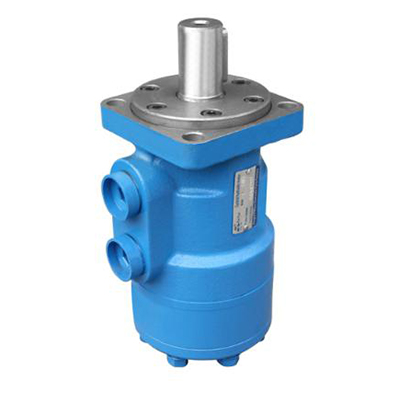

BM1 Small Hydraulic Motor
What is BM1 Small Hydraulic Motor?
The BM1 is a small, spool valve type gerotor motor. The characteristics of BM1 small hydraulic wheel motor are as follows:
1. Compact shaft and insert-type stator and rotor design, small size, high power and light weight.
2. Reliable shaft seal design, withstand back pressure, can be used in series and parallel.
3. The forward and reverse directions are convenient and the rotation speed is stable.
4. The special design of the linkage shaft has a long service life.
5. Optimum efficiency and economic performance for medium loads.
Product Description
BM1 Hydraulic motors are mainly used in injection molding machinery, ships, hoists, construction machinery, construction machinery, coal mining machinery, mining machinery, metallurgical machinery, marine machinery, petrochemical, port machinery, etc.
|
Quick Details |
|
|
|
|
|
Type |
Hydraulic Motor |
|
Series |
BM1 hydraulic motor |
|
Place of Origin |
China (Mainland) |
|
Brand Name |
Gulex |
|
Displacement(ml/r) |
80-400 |
|
Material |
Ductile Iron |
|
max torque(N*m) |
81~521N*m |
|
Surface treatment |
Painting |
|
pressure(MPa) |
9~16.5 MPa |
|
Max cont. Flow |
58L/min |
|
Speed(RPM) |
145~975r/min |
|
Oil tempreture |
-35℃~80℃ |
|
BM1 motor Technical parameters |
|||||||||||
|
排量（ml/r）Displacement |
50 |
63 |
80 |
100 |
125 |
160 |
200 |
250 |
315 |
400 |
|
|
（LPM）Flow |
(cont.) |
45 |
45 |
58 |
58 |
58 |
58 |
58 |
58 |
58 |
58 |
|
(int.) |
50 |
50 |
69 |
69 |
69 |
69 |
69 |
69 |
69 |
69 |
|
|
(RPM)Speed |
(cont.) |
879 |
720 |
685 |
560 |
456 |
358 |
285 |
236 |
179 |
145 |
|
(int.) |
975 |
755 |
820 |
671 |
548 |
426 |
341 |
282 |
210 |
173 |
|
|
(Mpa)Pressure |
(cont.) |
12.5 |
12.5 |
12.5 |
12.5 |
12.5 |
12.5 |
11 |
10 |
9 |
9 |
|
(int.) |
16.5 |
16.5 |
14 |
14 |
14 |
12.5 |
12.5 |
12.5 |
12.5 |
11 |
|
|
(N*m)Torque |
(cont.) |
81 |
101 |
124 |
155 |
194 |
227 |
282 |
302 |
365 |
456 |
|
(int.) |
108 |
134 |
141 |
176 |
221 |
260 |
318 |
383 |
406 |
521 |
|
JC forging is a professional forging parts manufacturer, we provide hydraulic cylinder motor, small hydraulic wheel motor, custom metal forgings, small hydraulic motors for sale, hydraulic motors for sale and etc.
