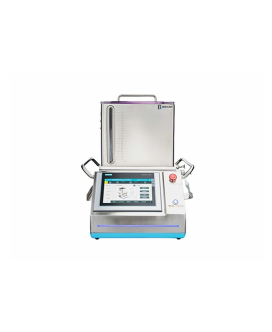

BioHub Lab Scale Mixer

BioHub Lab Scale Mixer is equipped with a unique paddle to meet the mixing of small volume of material and liquid.

Please be advised that this product is only available for sale and after-sales support in certain regions. For further details, kindly consult with your local sales representative. Thank you for your understanding.

Features of BioHub Laboratory Mixing

Volume range: 560mL-22L

The whole lab mixer machine adopts 304 stainless steel polishing design, Ra0.8μm, no damage to the soft bag body

The unique paddle design of lab agitator stirrer makes the material liquid even in a small volume

Small-volume design, this laboratory mixer stirrer can be placed on the desktop to easily achieve mixing of material and liquid.

Modular design, pH, cond, temperature, weighing, peristaltic pump, printer, etc. can be selected according to needs

Details About BioHub Lab Mixing Equipment

The BioHub® Series Single-use Desktop Mixing System works through a magnetic coupling motor to drive the single-use stirring paddles in the mixing bag to rotate, and is equipped with physical shaft seals. This lab stirrer mixer is safe, reliable, stable and efficient. Working together with a stainless steel bin, it can meet liquid-liquid mixing and solid-liquid mixing needs, and suitable for various small-volume mixing applications, such as medium preparation, buffer preparation, intermediate mixing, semi-finished product mixing, and final pharmaceutical product mixing.

The laboratory mixing equipment consists of a stainless steel bin, a control system, a magnetic mixing motor, and a single-use mixer bag. The modular design allows for flexible combinations of different functions on demand, such as mixing, weighing, feedback-controlled temperature monitoring, pH, and conductivity, while supporting high levels of customization to the complex needs of customers. The electric lab mixer also provides three-level permissions and data export to meet the data integrity needs of pharmaceutical customers.

Specifications of BioHub Lab Mixing Equipment

Item

MX10

MX20

System dimensions L × W

465 × 454

558 × 529

(mm)

System height H (mm

520

606

System weight (kg)

40

53

Wheels

Desktop without caster

Material (bin and bracket)

SS 304L

Jacket

Standard

Maximum working pressure in the jacket

6 bar

Jacket inlet and outlet

Chuck TC25 interface / quick fitting

Inner jacket volume m3 (estimated)

0.8

1.5

Heat exchange area X m2 (estimated)

0.264 m2

0.395 m2

Weighing unit

LSD-I6 10 KG

LSD-I6 20 KG

Temperature unit

Standard

Storage temperature

0–40 ° C, non-condensing environment

Operating temperature

4–60 ° C, non-condensing environment

Power

60 W

Rotation speed

0–400 rpm

Note: The stated rotation speed is obtained based on water test conditions. The maximum ro- tation speed needs to be determined by referencing the actual volume and viscosity of the feed liquid in the process.

Wire length

3 M

IP rating

IP55

Electrical compliance

CCC, PSE, CSA, EN, UL, and IEC compliant

Voltage

220 V, 50 Hz, 10 A

Software design

Three-level permissions, batch report export, and more

Now the price of lab mixer for sale is reasonable, if you have needs, please contact us.

As a bioprocess equipment manufacturer, we can offer sorts of related products for sale, if you have needs, please contact us.
