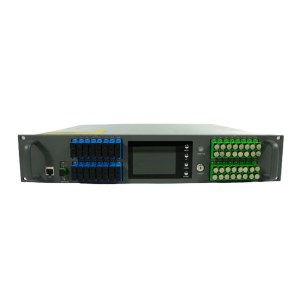

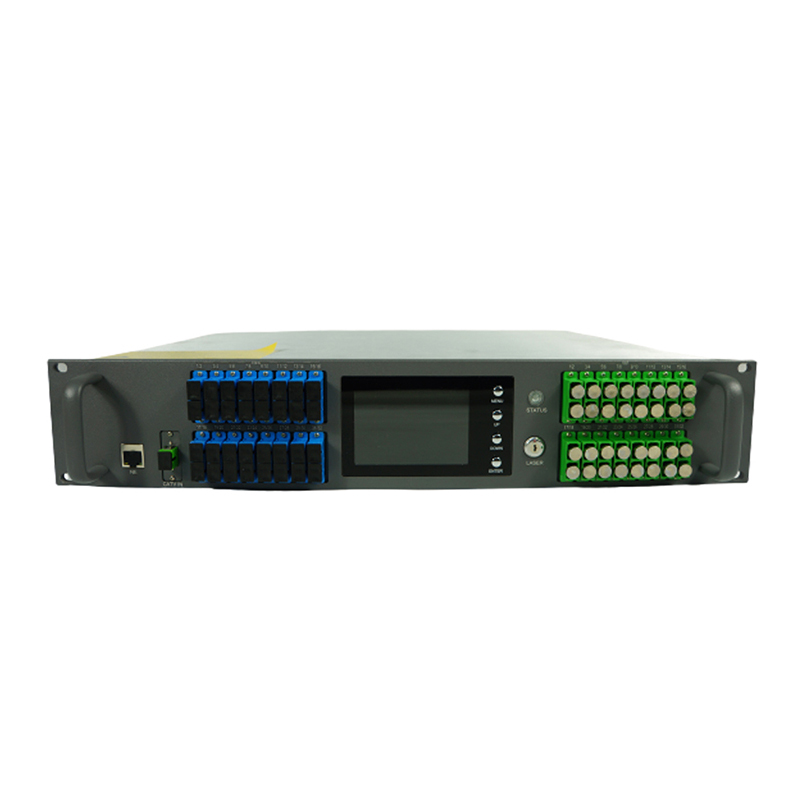

B Type 32 Port EDFA amplifer Fiber Optic Amplifiers (EDFA)

Items

Unit

Parameters

Remarks

Output Power

dBm

33～41

16～128 Outputs

Output Power

mW

2000～13000

16～128 Outputs

Input Power

dBm

-3～10

Wavelength

nm

1540～1563

Output Power Stability

dB

<±0.2</span>

Bias Oscillation Sensitivity

dB

<0.2</span>

Bias Oscillation Dispersion

PS

<0.5</span>

Optical Return Loss

dB

≥45

Fiber Connector

FC/APC, SC/APC

LC/APC

Noise Ratio

dB

<5.0(0dBm optical input)</span>

0dbm,@1550nm

Connector

RJ45

SNMP

Communication interface

RS232、RS485

Power Loss

W

50～100

Single

Working Voltage

V

220VAC(90～265)

-48Vdc

Working Temp

℃

-5～55

ATP case

Storage Temp

℃

-20～85

Size

mm

483(W)×280(D)×88(H)

2RU

EDFA device-1 unit;

Package contents

Keys for lock,-1 unit;

power cable-1/2 set AC/DC;

Laser Module Test Data-1pcs;

Package dimensions(W*H*D)

67*60*30cm

Package material

Standard carton for sea shipping or air express

Weight

13.3kgs
