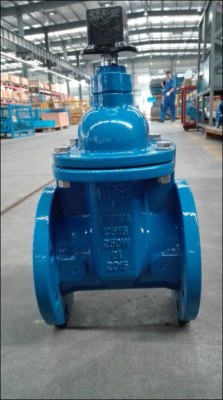

AWWA C515 resilient seated gate valve
Quantité : 1000 Prix : $45-$800
AWWA C515 resilient seated gate valve(NRS & OSY),size from 2"-12",pressure 200/250PSI
Design according to ASME B16.34
Face to face ASME B16.10
End to end ASME B16.10
Bill of material:
| Item | Description | Material | Item | Description | Material |
| 1 | Body & handwheel | Ductile Iron ASTM A 536 | 5 | Stem nut | Brass ASTM B 584 |
| 2 | Covers | Ductile Iron ASTM A 536 | 6 | Bolt & nut | Galvanize carbon steel grade 8.8 |
| 3 | Wedge | Ductile Iron ASTM A 536+EPDM | 7 | Seal & O ring | EPDM |
| 4 | Stem | S.S. ASTM A276 | 8 | Coating | Fusion bonded epoxy |
The AWWA C515 resilient seated gate valve, which is completely designed,manufactured and tested according to specified regulations in AWWA C515. It is widely and globally used in the portable water lines,waterworks connection,fire pretection and irrigation etc.
