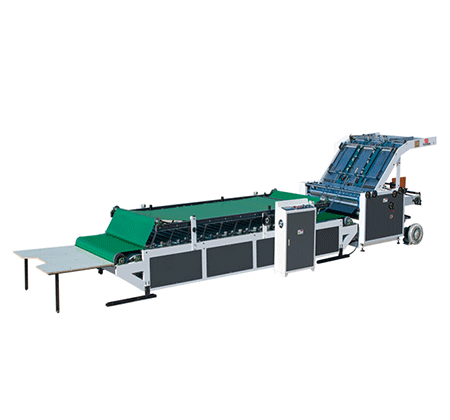

Automatic Flute Lamination Machine
Features of Automatic Flute Lamination Machine
High Precision
Using German advanced front lay registration technology accurate and stable and the corrugated paper never advance while top paper can be adjusted within 0-25mm for advancing.
High Efficiency
Simple and easy feeding way enables easy and free operation for top paper and corrugated board which enhances production efficiency and reduces labour intensity.
Low Fault
Scientific and reasonable mechanical structure cooperating with imported high-quality electric automatic control system ensures the machine runs at low fault. It affects a permanent cure for the user's troubles back at home.
Specification of Automatic Flute Laminating Machine
|
FM-1100 |
|
|
Model |
FM-1100 |
|
Max. paper size (mm) |
1100x1100 |
|
Min. paper size (mm) |
360x360 |
|
Laminin precision (mm) |
2—5mm adjustable (front gauge precision±1.5mm) |
|
Speed (m/min) |
0-65 |
|
Total Power (kW) |
5.3 |
|
Weight (T) |
3 |
|
Overall dimension (mm) |
8500x1600x1700 |
|
FM-1300 |
|
|
Model |
FM-1300 |
|
Max. paper size (mm) |
1300x1100 |
|
Min.paper size (mm) |
360x360 |
|
Lamindin precision (mm) |
2—5mm adjustable (front gauge precision±1.5mm) |
|
Speed (m/min) |
0-65 |
|
Total Power (kw) |
5.3 |
|
Weight (T) |
3.3 |
|
Overall dimension (mm) |
8500x1800x1700 |
|
BMY-1450 |
|
|
Model |
FM-1450 |
|
Max. paper size (mm) |
1450x1200 |
|
Min. paper size (mm) |
360x360 |
|
Laminin precision (mm) |
2—5mm adjustable (front gauge precision±1.5mm) |
|
Speed (m/min) |
0-65 |
|
Total Power (kW) |
6 |
|
Weight (T) |
4 |
|
Overall dimension (mm) |
9500x2000x2000 |
Now the box lamination machine price is reasonable, if you have needs, please contact us.
If you are looking for a reliable packing machine factory, please contact us, and we will be your best partner.
