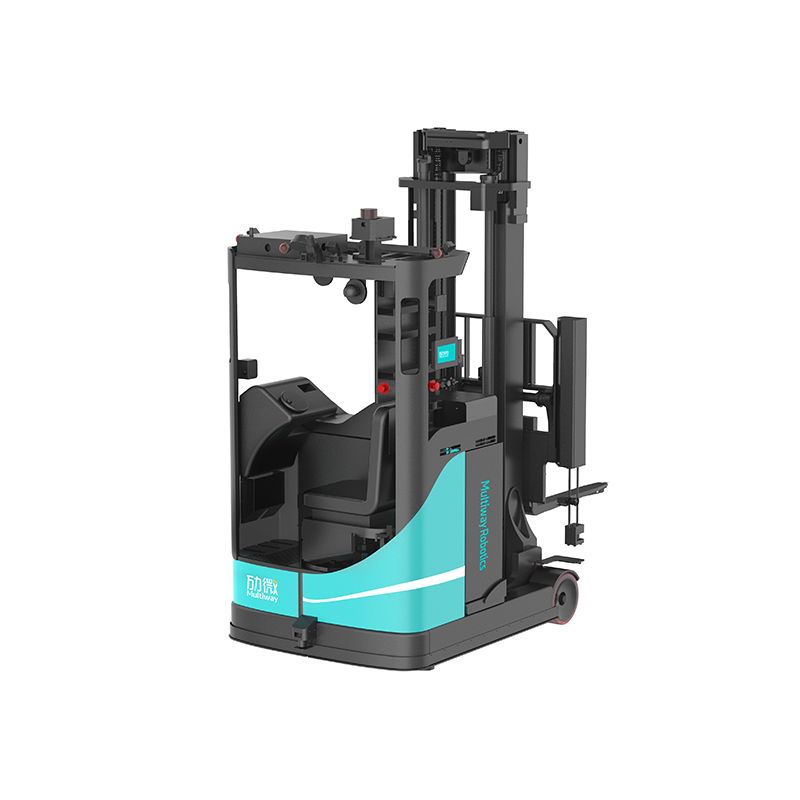

Automated Reach Truck
Prix : RMB 10w - 200w
With the unmanned forklift/AMR as the hardware platform, the Multiway Robotics provides customers with total intelligent manufacturing and picking robots warehouse solutions through machine vision and comprehensive upper-level system empowerment. Hardware products include various unmanned forklifts and AMR; software systems include WMS, WCS, on-site management systems, and a variety of visual solutions.
The equilibrium heavy automated forklift truck and stacker are characterized by one, the flexibility is strong, high load, and the highest lift is 10M, which greatly saves operational space, and improves agv manufacturing space utilization.
The Specification Of MW-R14/16/20 Automated Reach Truck
●Standard ○Option
|
Standard Models |
Reach Truck AGV MW-R16 |
|
|
Navigation |
Laser+reflector navigation |
● |
|
LiDAR SLAM navigation |
○ |
|
|
Hybrid navigation(LiDAR/Laser reflector+QR code/Magnetic nail/ceiling) |
○ |
|
|
Communication |
Wireless Wi-Fi |
● |
|
Optical communication |
○ |
|
|
5G |
○ |
|
|
Specifications |
Payload（kg） |
1600 |
|
Turning Radius（mm） |
1700 |
|
|
Lost load height （mm） |
7000 |
|
|
Max lifting height（mm） |
11500 |
|
|
Max height payload（kg） |
|
|
|
Min fork height（mm） |
50 |
|
|
Dimensions l/e/s（mm） |
1150x100x45 |
|
|
Outer fork width（mm） |
316—710 |
|
|
Aisle width【Pallet dimensions 1m(along the fork)x1.2m】（mm） |
3200 |
|
|
Pallet posture recognition width【Pallet 1m(along the fork)x1.2m】（mm） |
3750 |
|
|
Weight（kg） |
3000 |
|
|
Dimensions LxWxH（mm） |
2510x1450x2300 |
|
|
Motion capability |
Motion |
Reach, back, turning |
|
Speed(Unloaded/Max loaded)（m/s） |
2.6 |
|
|
Accuracy（Bearing wheel center）（mm） |
±5 |
|
|
Endangle accuracy（°） |
±1 |
|
|
Ditch crossing capability（mm） |
≤30 |
|
|
Obstacle crossing capability（mm） |
≤10 |
|
|
Climbing capability（mm） |
≤3°（5%） |
|
|
Safety&protection |
Manual/Auto |
● |
|
Offset protection, Abnormal positioning protection |
● |
|
|
Components malfuction, communication fault protection |
● |
|
|
Bottom front LiDAR anti-collision（1/2pcs） |
●（2pcs） |
|
|
3D obstacles avoidance（Front/back 1/2pcs） |
●（Front 1pc） |
|
|
Fork front anti-collision（Light sensor） |
● |
|
|
Bumper strip（Truck head） |
○ |
|
|
Emergency button（At least 2pcs） |
● |
|
|
Sound（Speaker）alarm、Light alarm（3-color light 2pcs) |
● |
|
|
Width light（Front, left, right 3pcs） |
● |
|
|
HMI（7 inches） |
● |
|
|
Monitoring camera |
○ |
|
|
Fork function |
Cargo detection |
● |
|
Cargo posture detection |
● |
|
|
Anti-pressure detection(Light sensors) |
○ |
|
|
Cargo offset detection(Ultrasonic) |
● |
|
|
Space detection(LiDAR point cloud) |
● |
|
|
Auto fork distance adjust |
○ |
|
|
Lateral offset positioning |
● |
|
|
Inclination detection |
● |
|
|
Battery capability |
Recharging mode |
Manual/Auto |
|
Manual recharging(Plug direct) |
● |
|
|
Battery replacing（Standard） |
Hoisting |
|
|
Lateral replacing(less capability) |
— |
|
|
Battery type(Standard) |
LiFePO4 |
|
|
Voltage |
48V |
|
|
Standard Capability【Hoisting】 |
560Ah |
|
|
Standard Capability【Lateral】（Ah） |
— |
|
|
Operation time（h） |
4-5h |
|
|
Lifetime |
3000 times, 70% left |
|
|
Recharging station（Standard） |
48V200A |
|
|
Visual function |
Pallet posture recognition（3D camera） |
● |
|
Fork feeding side detection（3D camera） |
○ |
|
|
Weight detection（Weighing module） |
○ |
|
|
Cargo falling detection（3D camera×2pcs） |
○ |
|
|
Auto inventory（2D+3D cameras） |
○ |
|
|
Bar code/RFID recognition（Reader/RFID sensor） |
○ |
|
The Advantages Of MW-R14/16/20 Automated Reach Truck
Environment adaption: Laser navigation, no need to set reflector, QR code or others that refit scenarios.
Intelligent running: Map building, path planning, auto recharging, self-operating that meets various scenarios. Machine vision and comprehensive system enable unmanned forklift, improving flexibility.
The Features Of MW-R14/16/20 Automated Reach Truck
High accuracy, high efficiency: Primary positioning ±5mm, secondary positioning±2mm.
Max speed 3m/s, max payload 2000kg, max lifting height 11.5m. 7×24h full time running.
Intelligent, safe, easy to operate: Comprehensive self-detection capability.
Safe sensors + dual control system protection, 360°anti-collision, Light&Sound alarm protects.
Sustainable iteration, remote upgrading, friendly HMI.
As one the leading automated guided vehicle companies, we supply types of automated guided vehicles, if you want to know autonomous forklift cost, please contact us.
Personne à contacter : Robotics mwr, 0755 29985090
