AT211 Water Hammer Tester
AT211 WATER HAMMER TESTER

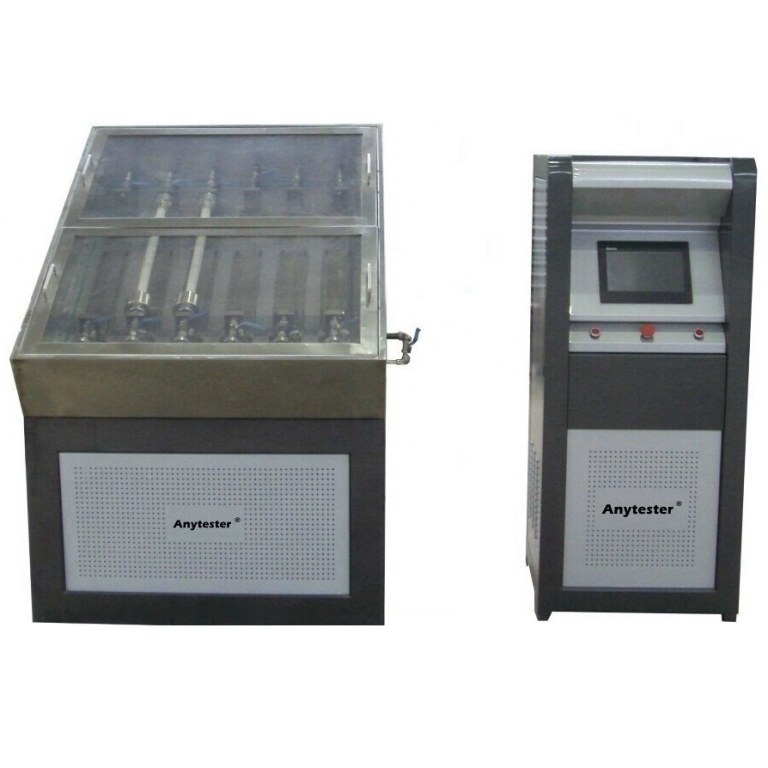

Main machine with tank
Application:
AT211 Water Hammer Tester has been designed to determine the behavior of and its connection when subjected to cyclic pressure shock. It can satisfy your testing requirements of plastic , such as PP-R, PP-H, PE, PEX, Composite pipe and fittings which shall not fail when subjected to 10000 cycles under alternating continuously pressure.
Standards: ISO10508, 15875; ASTM F1281, F1282, F1335; GB/T18991, 18992, 18997, 18998, 18991, 19473.2
Note: For more standards, please contact us
Features:
1) The main machine consists of pressure control unit, magnetic valve, sensor, pressure station, etc.
2) The number of working position can reach to 6 and max. pipe diameter reach toΦ63mm.
3) Large color touch screen control (Taiwan), easy to operate
4) Imported (Demark) pressure control electric valve, high accuracy and stable.
5) Imported (USA) water pressure station, excellent performance, long service life, low noise, no need to use air source
6) Adopt high precision sensor, the control accuracy can reach ±0.05MPa of set value
Technical Specification:
|
Model |
AT211 |
|
|
Pressure range |
0.05~3MPa or customized |
|
|
Max. pipe diameter |
Φ63mm |
|
|
Pressure resolution |
0.05MPa |
|
|
Pressure cycle time |
≤0.5s |
|
|
Pressure alternate time |
≤1s |
|
|
Cycling frequency |
≥60 times/mins |
|
|
Cycling error |
±2 times/mins |
|
|
Cycling times |
≥10000, settable |
|
|
Working station |
6 |
|
|
Max. water volume |
≥420L |
|
|
Power supply |
380V and 220V, 50Hz, 6Kw |
|
|
Dimension |
Main control unit |
600*550*1300mm |
|
Test chamber |
1450*900*1230mm |
|
Standard Configuration:
|
No. |
Item |
Quantity |
|
1 |
Main control unit |
1set |
|
2 |
Test chamber |
1 set |
|
3 |
Pressure pump |
1 set |
|
4 |
End closures (Φ20mm, Φ25，Φ32, 2 sets each size; Φ16, Φ40mm, Φ50mm, Φ63mm, 1 sets each size) |
10 sets |
|
5 |
Magnetic valve |
1 set |
|
6 |
Pressure sensor |
1 set |
|
7 |
Connect wire |
1 set |
|
8 |
Quality certificate |
1 copy |
|
9 |
Packing list |
1 copy |
|
10 |
User manual |
1 copy |
Optional Configuration:
|
No. |
Item |
|
1 |
End closures (Φ16, Φ20, Φ25, Φ32, Φ40, Φ50, Φ63 optional) |
