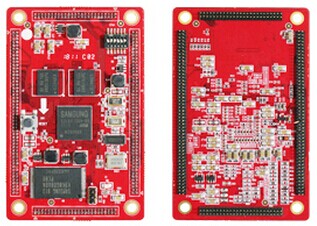

Arm 11 6410 core board/motherboard/mainboard

Quantité : 1000   Prix : negotiable

Samsung ARM11 S3C6410X core module

Main Features:

Samsung ARM11 S5PV310 S3C6410X ,667 MHz high performance processor

Onboard DDR 256MByte memory /1GB Nand flash

Support wide range power input 5V-12V

Support 2D/3D Graphics Acceleration, MPEG-4/H.263/H.264 encoding and decoding up to 1080p@30fps

Support full HD 1080p video decode and HD 1080 video encode hardware engine

Support 10M/100M Ethernet

Support USB2.0, USB OTG2.0, RS232 UART, SD CARE, GPIO, Camera

Support Android4.0 OS, Linux OS, WindowsCE6.0/7.0 OS

Optional thermal solution

Product Specification:

Module size: 53*83mm

CPU: Samsung ARM11 S3C6410X

Memory: 2GB DDR3/1 GBNand flash

PMIC: MAXIM MAX8698C chip

Graphics: 1 HDMI1.3, 1 VGA, 1 LCD

Ethernet: : 1 10M/100Mbps

Connector No. J1, J2, J3, J4

Full pins: 496

RTC: yes

I/O: USB HOST, USB OTG, SD/SDIO/HS-MMC interface, RS232 UART, TV OUT, TV

IN, Audio, keypad, GPIO, SPDIF, SPI, I2C,I2S

Power Supply Voltage: 5V~12V

Environment: Operational Temperature: 0~60C/-20~85C

Operating System: Android4.0, Linux3.2.0,WindowsCE6.0

Coreboard power: choose the high performance/price ratio of the DC TOREX machinecompany/DC power.

Resetcircuit: adopt manual and electric circuit on the reduction.

Theclock circuit: choose active and passive crystal combined oscillating circuit.

Interface circuit: the high precision socket (1.27 MM spacing) and floor linked.
