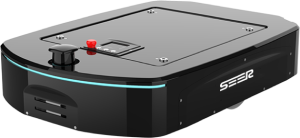

AMB Series Unmanned Chassis

Prix : 1000-6000USD

AMB Series Unmanned Chassis AMB (Auto Mobile Base) series unmanned chassis, a universal chassis designed for the mobile robots, provides some features such as map editing and localization navigation. It provides abundant extent interfaces such as I/O and CAN to mount various upper modules together with powerful client software and dispatching systems to help users quickly complete manufacture and application of mobile robots. There are four mounting holes on the top of the AMB series unmanned chassis, which supports arbitrary expansion with jacking, rollers, manipulators, latent traction, display, etc. to achieve multiple applications of one chassis. AMB together with SEER Enterprise Enhanced Digitalization can realize the unified dispatching and deployment of hundreds of AMB products at the same time, which greatly improves the intelligent level of internal logistics and transportation in the factory.

Descriptions

Descriptions of AMB Series Unmanned Chassis

Rich features available at any time

Comprehensive and excellent standard features and rich and practical advanced features help clients easily achieve intelligent logistics.

Multi-specification platforms available for expansion

It offers a wide range of expansion platforms from 150 kg to 500 kg to meet the load and scenario requirements of different industries. It can also be used with manipulators, rollers, jacking, latent traction, pan/tilt, display screen, etc. to achieve multiple applications with one chassis.

±5 mm, efficient and accurate

Laser SLAM algorithm is used to achieve high-precision localization, with the laser non-reflective repeated locating accuracy within ±5 mm, enabling seamless docking between mobile robots and between mobile robots and humans, and efficient flow of cargoes among various points. Note: Actual values depend on environmental conditions

Stable navigation for safety and reliability

Network stability When there are multiple APs at the user site, the mobile robot can perform fast and stable roaming switching among multiple APs with optional industrial-grade Wifi client module that supports roaming to ensure the stability of the scheduling system connection.

Navigation stability Multiple navigation approaches ensure stable operation of the mobile robot.

3D obstacle avoidance A 3D vision sensor is added to identify and detect some three-dimensional obstacles (such as too low or too high obstacles, potholes on the ground, etc.) and choose to stop or bypass according to the configuration.

Easy deployment and visible management

SEER Enterprised Enhanced Digitalization, SEED easily enable mobile robot operation, dispatching and information management, and seamlessly connect with the plant's MES system to truly achieve intelligent logistics.

Specifications

Specifications of AMB Series Unmanned Chassis

AMB-150 | AMB-150-D

Basic parameters

Navigation method

Laser SLAM

Drive mode

Two-wheel differential

Shell color

Pearl white/Pearl black/Customized Color

L*W*H

800*560*200mm

Rotation diameter

840mm

Weight (with battery)

66kg

Load capacity

150kg

Chassis ground clearance

25mm

Laser scanning height

228mm

Network

Ethernet / Wi-Fi 802.11 a/b/g/n/ac

Temperature and humidity range

TEMP: 0-50 / RH: 10-90%, no compression, no condensation

IP rating[1]

IP20

Performance parameters

Passability (slope/step/gap)[2]

< 5%/5mm/10mm

MIN. passable width

700mm

Navigation position accuracy[3]

±5mm

Navigation angle accuracy[3]

±0.5°

Navigation speed

≤ 1.4m/s

Map area (single frame)

≤ 400000m²

Battery parameters

Battery specifications

48V/35Ah (Ternary lithium)

Comprehensive battery life

12h

Charging time (10-80%)

≤ 2h

Charging method

Manual/Automatic/Quick change

Battery cycles

> 500

Extended interfaces

Power DO

Seven-way (total load capacity 24V/2A)

DI

Ten-way (NPN)

E-stop interface

Two-way output

Wired network

Three-way RJ45 gigabit ethernet

Configurations

Number of lidar

1 or 2P+F R2000-HD

HMI display

E-stop button

Buzzer

Speaker

Atmosphere light

Bumper strip

×

Features

Basic features[4]

Wi-Fi roaming

Automatic charging[5]

Shelf recognition[6]

Laser reflector navigation

3D obstacle avoidance[7]

Certifications

EMC/ESD

UN38.3

RoHS

REACH

AMB-300 | AMB-300-D

Basic parameters

Navigation method

Laser SLAM

Drive mode

Two-wheel differential

Shell color

Pearl white/Pearl black/Customized Color

L*W*H

1000*700*200mm

Rotation diameter

1040mm

Weight (with battery)

144kg

Load capacity

300kg

Chassis ground clearance

25mm

Laser scanning height

228mm

Network

Ethernet / Wi-Fi 802.11 a/b/g/n/ac

Temperature and humidity range

TEMP: 0-50 / RH: 10-90%, no compression, no condensation

IP rating[1]

IP20

Performance parameters

Passability (slope/step/gap)[2]

< 5%/5mm/30mm

MIN. passable width

840mm

Navigation position accuracy[3]

±5mm

Navigation angle accuracy[3]

±0.5°

Navigation speed

≤ 1.4m/s

Map area (single frame)

≤ 400000m²

Battery parameters

Battery specifications

48V/52Ah (Ternary lithium)

Comprehensive battery life

12h

Charging time (10-80%)

≤ 2.5h

Charging method

Manual/Automatic/Quick change

Battery cycles

> 500

Extended interfaces

Power DO

Seven-way (total load capacity 24V/2A)

DI

Ten-way (NPN)

E-stop interface

Two-way output

Wired network

Three-way RJ45 gigabit ethernet

Configurations

Number of lidar

1 or 2P+F R2000-HD

HMI display

E-stop button

Buzzer

Speaker

Atmosphere light

Bumper strip

×

Features

Basic features[4]

Wi-Fi roaming

Automatic charging[5]

Shelf recognition[6]

Laser reflector navigation

3D obstacle avoidance[7]

Certifications

EMC/ESD

UN38.3

RoHS

REACH

AMB-500 | AMB-500-D

Basic parameters

Navigation method

Laser SLAM

Drive mode

Two-wheel differential

Shell color

Pearl white/Pearl black/Customized Color

L*W*H

1000*700*200mm

Rotation diameter

1040mm

Weight (with battery)

130kg

Load capacity

500kg

Chassis ground clearance

20mm

Laser scanning height

228mm

Network

Ethernet / Wi-Fi 802.11 a/b/g/n/ac

Temperature and humidity range

<span style="font-family: Ca
