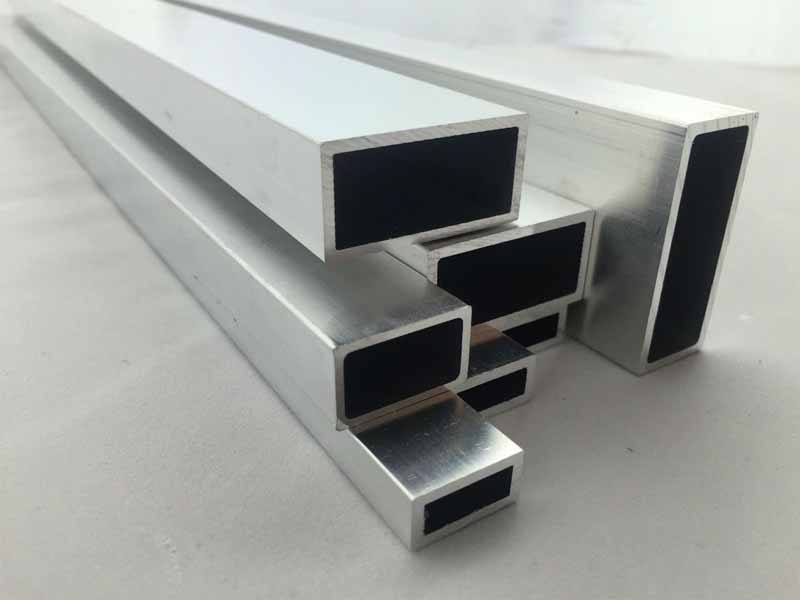

Aluminum Rectangular Tube
As an aluminum profile company, Otalum supplies a comprehensive range of over 1000 different standard aluminium profiles in a wide spectrum of specifications and dimensions.
Extruded aluminum rectangular tubing is frequently used in places where lightweight and corrosion resistance is important. Thus, similar to the square aluminium profile,aluminium rectangular profile is also widely found in framework, support columns, gates and fencing, handrails and protective barriers.
In Otalum, we offer a wide range of rectangular aluminium profiles with a variety of alloys, sizes and finishes. They can be cut to size if the existing products cannot meet your requirements.
Precise cutting to length and processing services are available with the fastest lead time.We peovide rectangular aluminium extrusion.
Features of Aluminum Rectangular Tube
Alloy |
Standard |
Surface Treatment |
Further Process |
Certificate |
6005 T5/T6, 6060 T5/T6, 6061 T4/T6, 6063 T5/T6, 6463 T5/T6, 6082 T5/T6, etc. |
GB 5237-2008, JISH, AAMA, GB, BS, En |
Mill finish, Powder Coating, Anodizing, Wooden grain, Electrophoresis, PVDF Painting, Sanding blasting, Polishing, etc. |
Drilling, Bending, Welding, Precise cutting, Punching, Fabrication of finished products, etc. |
CE, DNV, TUV, ISO9001 |
Specifications of Aluminum Rectangular Tub
B=length, mm
H=height, mm
T=thickness, mm
Weight(kg/m)
Item |
B |
H |
T |
Weight(kg/m) |
SQ12X7X0.8 |
12 |
7 |
0.8 |
0.076 |
ZY-CXG02 |
12 |
7 |
1.1 |
0.1 |
ZYW0056 |
12 |
10 |
1.5 |
0.154 |
SQ14X9X0.8 |
14 |
9 |
0.8 |
0.092 |
SQ15X5.6X0.8 |
15 |
5.6 |
0.8 |
0.082 |
SQ15X10X0.9 |
15 |
10 |
0.9 |
0.114 |
ZY-157-008 |
15.5 |
10 |
1.5 |
0.184 |
ZY-157-002 |
16 |
10 |
1.5 |
0.186 |
ZY66237 |
18 |
5 |
1 |
0.113 |
ZY66236 |
18 |
7 |
1 |
0.124 |
SQ18X12X1.5 |
18 |
12 |
1.5 |
0.219 |
SQ19X13X1.2 |
19 |
13 |
1.2 |
0.194 |
SQ1916T16 |
19 |
16 |
1.6 |
0.275 |
SQ20X10X0.8 |
20 |
10 |
0.8 |
0.123 |
ARC051 |
20 |
10 |
1 |
0.151 |
