Aluminum Conductor Steel Reinforced (ACSR)

Steel - cored aluminium stranded wire, it could also be described as ACSR Conductor or ACSR Aluminium Conductor or acsr goat conductor steel reinforced etc.. Steel - cored aluminium stranded wire has the same structure as the aluminum conductor alloy reinforced (ACAR) , except that the aluminum wires outside the steel core have been changed to alloy wires . ACSR martin conductor steel reinforced mainly used to transmit electricity in overhead transmission lines. And the aluminium steel reinforced conductor(ACSR) is made of acsr aluminum wire and steel wire. Among them, the steel core mainly plays the role of increasing strength, and the aluminum wire mainly plays the role of conveying electric energy. ACSR Aluminium Conductors mainly has ASTM standards (such as ACSR Raven conductor, ACSR Cardinal conductor etc. ), BS standards (such as ACSR Rabbit conductor , ACSR Fox Conductor etc.), IEC standards ( Such as ACSR 100mm2, ACSR120mm2 etc.), DIN standards( such as ACSR 120/20mm2, ACSR 150/25mm2 etc.), CSA standards( such as ACSR Ostrich conductor, ACSR Hawk conductor etc.) and other production standards. Because of its low comprehensive cost, large transmission capacity, small power loss and other characteristics, acsr aluminum conductor steel reinforced has become the most commonly used material for overhead wire.

Aluminum Conductor Steel Reinforced (ACSR) Features

01.

STANDARD

IEC61089; DIN48204; CSA C49; ASTM B230, B231, B498; BS215, BS EN50182, BS4565

02.

Contruction

Aluminum wires and the steel cores are concentrically stranded and wrapped helically around a central wire.

03.

Application

This type of bare conductor cable is suitable for use in all practical spans on wood poles, transmission towers,and other structures.

04.

Greased

Greased aluminium conductor steel reinforced cable can be supplied.

Aluminium conductor steel reinforced Advantages

01.

Durability

The aluminum conductor steel reinforced is strong, durable and economical, making them an ideal choice for many industries.

02.

Strength

The aluminium conductor steel reinforced is widely used in overhead power transmission and distribution lines due to their high strength to weight ratio.

03.

Resistance

The acsr wire is resistant to corrosion and provide excellent electrical conductivity.

04.

High-quality Material

The professional acsr wire manufacturer provides complete solutions for ACSR wire and cable projects with the highest quality materials.

Why Aluminum Conductor Steel Reinforced Are Used in Transmission and Distribution Systems?

Aluminium conductor steel reinforced (ACSR) cables are used in transmission and distribution systems due to their strength and durability. They are produced by a low-cost acsr cable manufacturer, making them an economical choice for long-distance transmission and distribution networks. The steel core also helps to improve the overall strength and flexibility of the cable, allowing for even weight distribution and easy installation. The aluminium steel reinforced conductor is also corrosion-resistant and require minimal maintenance, making them a reliable option for outdoor power distribution.

Aluminum Conductor Steel Reinforced Common Problems and Their Solutions

Aluminium conductor steel reinforced (ACSR) cables are manufactured by specialist acsr cable manufacturers and are used in various electrical applications. Common problems with aluminium steel reinforced conductor include increased electrical resistance due to corrosion, abrasion and other environmental factors. Solutions to these problems include regular inspection of the cables, improved sealing and insulation, and the use of corrosion-resistant steel. Additionally, using specialized coatings and insulation materials can help reduce electrical resistance and ensure long service life.

What are the components of ACSR?

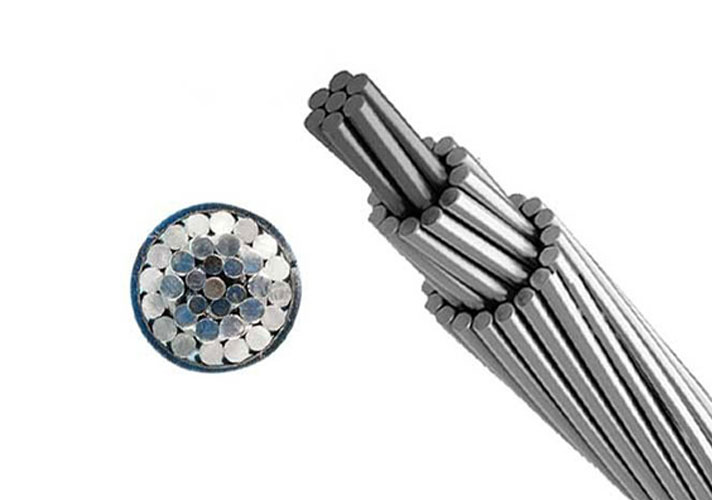

Aluminum Conductor Steel Reinforced ACSR conductor is made of twisted aluminum wire wrapped around a galvanized steel core. The galvanized steel core used for ACSR conductor is zinc-coated steel , at the same time , the steel core is also divided into different types. The thickness of zinc layer and the breaking load of steel core required by different production standards are different. As for the aluminum wires , diffierent size ACSR Conductor , the number of aluminum wires and the diameter of single strand are different .

Aluminium Steel Reinforced Conductor FAQs

Is it possible to utilize aluminum steel reinforced conductor for both indoor and outdoor applications in a commercial building?

Steel core aluminum stranded wire is suitable for overhead transmission lines, not suitable for indoor use.

Does aluminium steel reinforced conductor work for residential and commercial applications?

The power cable in the house should be copper conductor. Therefore, residential should use copper wire, should not use steel core aluminum stranded wire.

13031. selection and laying of fire fighting lines should meet the needs of continuous power supply or signal transmission in case of fire. All fire lines shall be copper conductors or cables. Therefore, the fire load in the building (such as fire fans, fire elevators, fire pumps, emergency lighting, etc.) should be copper wire.) , do not use steel core aluminum stranded wire.

How long does an aluminium steel reinforced conductor last, and how often should it be replaced?

Under normal circumstances, the service life of wire and cable is not less than 70 years. The service life of steel core Al strand wire is affected by the service environment. For example, in the coastal salt spray area, the corrosion of aluminum is greatly affected, and the cable life is greatly shortened.

What is the ultimate temperature for an aluminum steel reinforced conductor?

The maximum temperature of steel core Al strand and steel core Al strand during normal operation shall not exceed 70℃ (+90℃ is used for large span).
