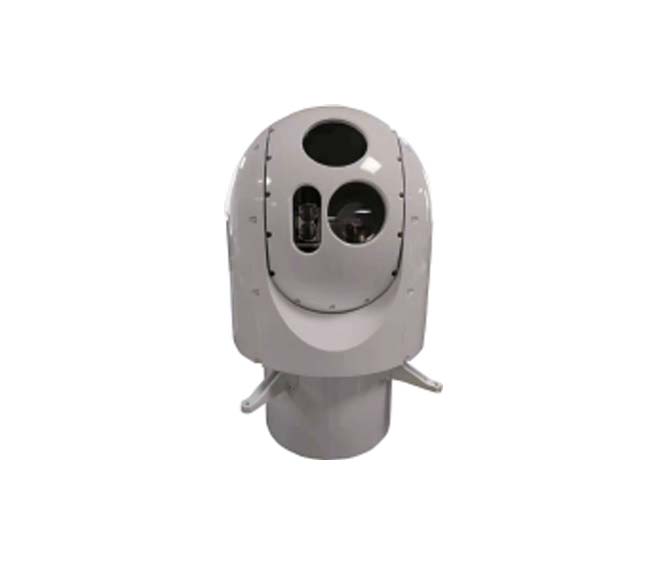

Airborne Surveillance System TAG640-C300T120-L
Quantité : 500set/mon Prix : 2000usd
Military reconnaissance, targeting, search & rescue, anti-smuggling, evidence collection, security, environment inspection, forest fire prevention, navigation assistance and so on. It is designed for equipping on various medium to large manned/unmanned drones and airships.
Specifications of Airborne System TAG640-C300T120-L
|
Visible Camera |
||
|
Detector |
1/1.8 inches |
1/1.8 inches |
|
Lens |
38×(8mm-300mm) optical zoom |
42×(10mm-420mm) optical zoom |
|
Resolution |
1080P（1920X1080） |
1080P（1920X1080） |
|
IR camera |
||
|
Detector |
Uncooled LWIR detector |
cooled MWIR detector |
|
Resolution |
(8um~14um) 640×512 |
(3um~5um) 640×512 |
|
Focal length |
30~120mm continuous zoom |
15~300mm continuous zoom |
|
Laser Sensor (Eye-safe Laser class-Ⅰ) |
||
|
Laser Ranging |
Maximum Distance 3km/5km (optional), Accuracy: ±5m |
|
|
Gyro-stabilized PT |
||
|
Accuracy |
≤0.1mrad（1σ） |
|
|
Azimuth Range |
Nx360° |
|
|
Elevation Range |
-90°~+30° |
|
|
El angular Velocity |
≥80°/s |
|
|
Az angular Velocity |
≥80°/s |
|
|
El angular Acceleration |
≥200°/s² |
|
|
Az angular Acceleration |
≥200°/s² |
|
|
Electrical Interface |
||
|
Video Output |
HD-SDI/Network HD Video (optional) |
|
|
Communication |
RS422/ Network interface |
|
|
Power |
||
|
External Power |
20~30V DC |
|
|
Power Consumption |
≤300W，peak≤600W |
|
|
Environmental |
||
|
Operating Temp |
-20℃～+65℃/-40℃～+65℃ |
|
|
Storage Temp |
-40℃～+85℃ |
|
|
Image Tracking |
||
|
Integration |
Built-in |
|
|
Function |
HD Auto Tracking /Auto Target Recognition（optional） |
|
|
General |
||
|
Weight |
≤35kg |
|
|
Dimension |
Φ350mm×580mm |
|
Features of Airborne System TAG640-C300T120-L
Multi-optical sensors combination （photo, video, IR, laser）
High-accuracy gyro-stabilized platform
Integrate HD Auto Tracking
Now the price of electro optic drone system is reasonable, if you have needs, please contact us.
As one of thermal imaging companies, we will do our best to meet all the needs of customers.
If you want to know more kinds of thermal night vision scope for hunting, please visit our website.
Personne à contacter : EO Everay, 021 56842253
