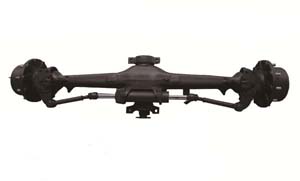

Agricultural Machinery Vehicle Front Steering Driving Axle
Quantité : 30000
| Model | CH1801 | |
| Nominal Load(Kg) | 7500 | |
| Wheel Tread(mm) | 1820 | |
| Kingpin Inclination(°) | 7° | |
| Caster Angle(°) | 0° | |
| Kingpin Camber(°) | 1.5° | |
| Kingpin Distance(mm) | 1560 | |
| Tie-in(mm) -2~2 | 0 | |
| Max.Turning Angle(°) | inner 50°/outer39.32° | |
| Central Reduction Device Ratio | 3 | |
| Wheels Reduction Device Ratio | 6.923 | |
| Input Maximum Allowable Twisting (Nm) | 760 | |
| Brake Spec. | Multi-disk Wet Brake | |
| Axle Weight(Kg) | 470 | |
| Matching Model | 1604/1804 Tractor Series | |
| CH1801 Performance Features | ||
| 1.Small curve radius, light weight, high rigidity, nice trafficability. | ||
| 2.Joint and composite materials bearing, steering force reduced., safe and reliable. | ||
| 3.Wheel reduction gear enlarges output torque. | ||
| 4.Matching large wheeled tractor . | ||
