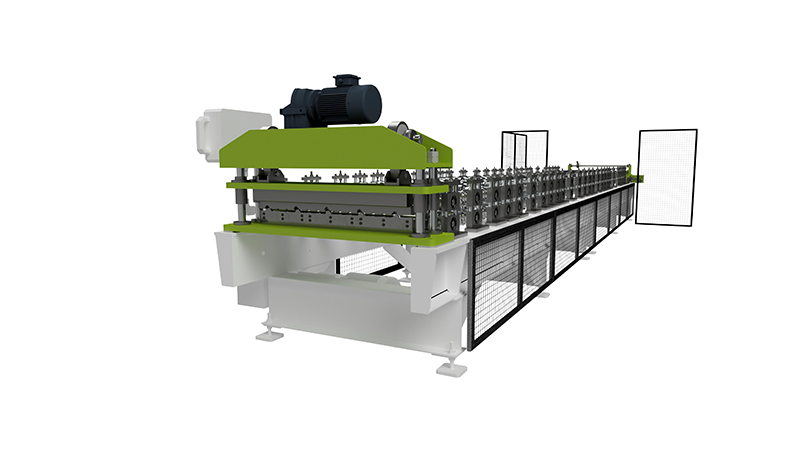

AG PANEL ROLL FORMER
This ag panel roll forming machine series is used to make high-quality AG panels. As a professional roof and wall panel roll forming machine manufacturer, Hangzhou Roll Forming Technology Co., Ltd. provides high-quality used ag panel roll former for sale for sale at reasonable prices. Please feel free to contact us for more information.
Features and Advantages of AG Panel Roll Former
AG panel roll forming equipment, specially designed for forming roofing corrugated sheet, siding panel, floor decking, under mass-production.
Production speed: 20/30/40/50/60 m/min optional.
Working with a non-stop flying cut and full automatically stacking system, Max speed of the line can reach 60 m/min.
Cassette-type platform change rolling machine base for multi-profile purposes is available for choice.
Certified with Multi-Patents; CE Certified, EUROPEAN quality standard
Most of the hot & popular profiles models, we have a variety of ready ag panel roll forming machines in stock for prompt delivery.
Suitable Raw Material for AG Panel Roll Former
Material type: |
Color coated Steel, Galvanized Steel, Aluminum sheet, stainless steel |
Thickness: |
0.3-0.7(mm) |
Yield Strength: |
230-300/350/550-675(MPa) optional |
Width: |
1038,1055,1092 (mm) |
Production Line Components and Parameters of AG Panel Roll Former
1. Decoiler |
5t/8t/10t//15t Motor/hydraulic motor/passive (optional) |
2. Filming covering device |
optional |
3. Front shear |
optional |
4. Lubricating device |
no need |
5. Roll forming system |
20/30/40/50/60 m/min (optional) |
6. Safety cover |
optional |
7. Post cutting |
Motor/hydraulic (optional) |
8. Output System |
Manual supporter/ Automatic Stacker (optional) |
Stackmaster |
(Output direction) Lateral/Longitudinal (optional) |
9. Hydraulic system |
Power supply for decoiler /post-cutting system |
10. Electric control system |
MITSUBISH/ SIEMENSE/AMS (optional or as requested ) |
AG Panel Roll Former Layout
Working Flow of AG Panel Roll Former
The working flow of our AG panel roll forming machines is as follows: Coil Charging Car (optional) - Decoiler (passive/auto) - Front Shear(optional) - Feeding and Guiding Table - Filming Covering (optional) - Roll Forming System - Post-Cutting to length (Hydraulic/Motor) - Output Manual Supporter/Stackmaster(optional)
Application of AG Panel Roofing
The Advantage Panel is a durable, weather-resistant metal roofing option for both residential and agricultural projects. These sturdy panels can provide excellent protection against harsh weather conditions and will increase the lifespan of your roof. Plus, AG-Panels are not only cost-effective & provide high-performance standards but they also lower the need for maintenance on your roof. Advantage panels are perfect for retro-fitting over existing composition shingles. These sheets of lower-profile metal roofing save time, labor, and disposal costs, which means a lower total project cost. The design with bold ribs, making it an exceptionally attractive and high-performance roofing and cladding.
AG Roofing Profile Drawings
Finished AG Panel Metal Roof by AG Panel Roll Former
Specification of AG Panel Roll Former
Machine Condition |
Fully New, A Grade quality |
Panel Shape |
As profile drawing and customer's requirements |
Operator needed |
1-2 persons |
Power Supply |
220V/380V/415V/460V, 50/60Hz, 3P (as requests) |
Equipment Weight |
About 15t |
Dimension |
(L*W*H) about 25*3*2m |
LOADING SIZE |
Normally need 1x 40' (+ 1x 20GP) container. |
Equipment Color |
Normally Blue/White, or as requests; |
Place of Origin |
Zhejiang, China (Mainland) |
Packing |
Standard and careful export packing |
As a roll forming factory, we will do our best to meet all customers' needs.
