AG Drone Motor Series
Quantité : 1000 pcs Prix : USD80-USD230
Established in 2002, Shenzhen TitanFlying Technology Co., Ltd (TTF) is located in Shenzhen University Town, known as the Silicon Valley of China. TTF has more than 20 years' experience on mechanical processing.
Low Noise, Stable & Reliable
Dustproof, Waterproof & Cooling
Extensive Compatibility
Anti- corrosion Coil
24v Brushless Motor Series
With standardization of UAV motor industry segment, the requirements of user are growing rapidly. TTF, is now releasing P series motors for agricultural application with powerful thrust and high performance after tremendous tests. P series 24 volt brushless motors are capable of working in a demanding environment with reliability and long service life.
More Thrust
Weight decrease is achieved by optimizing stator structure while maintaining its mechanical strength. Manual winding helps increase slot fullness for more thrust.
Low Noise, Stable & Reliable
24N28P/36N42P configuration reduces the strongest drone motors price in operation for motor wearing diminution, service life extension and noise debasement. P series motors run more smoothly than motors with general configuration at maximum throttle.
Impact Resistant
Optimized machining precision and motor structure with motor core part protection effectively avoids cases as to the failure in motor utilization after crash and impact.
Dustproof, Waterproof & Cooling
Closed exterior and lattice structure take account of both dustproof, waterproof and cooling effects which handles usage in various environment.
Anti- corrosion Coil
Special coating gets the coil free of corrosion from pesticides.
Extensive Compatibility
There are M3 and M4 mounting holes on the motor base for different frames.
P series quadcopter drone motors are not confined in the plant protection field. It can also be employed on VTOL planes.
|
P series motor |
P6215-175KV |
P7115-135KV |
P8320-120KV |
|
CF Prop & Max thrust |
22*75: 9.46kg 21*70: 9.15kg |
26*80: 10.85kg 26*85: 10.93kg |
30*80: 16.62kg 30*95: 17.14kg |
|
ESC |
80A |
80A |
100A |
|
Volts |
12S |
12S |
12S |
|
AUW |
Quadcopter: 16kg Hex-copter: 25kg Oct-copter: 33kg |
Quadcopter: 21kg Hex-copter: 30kg Oct-copter: 38kg |
Quadcopter: 33kg Hex-copter: 48kg Oct-copter: 62kg |

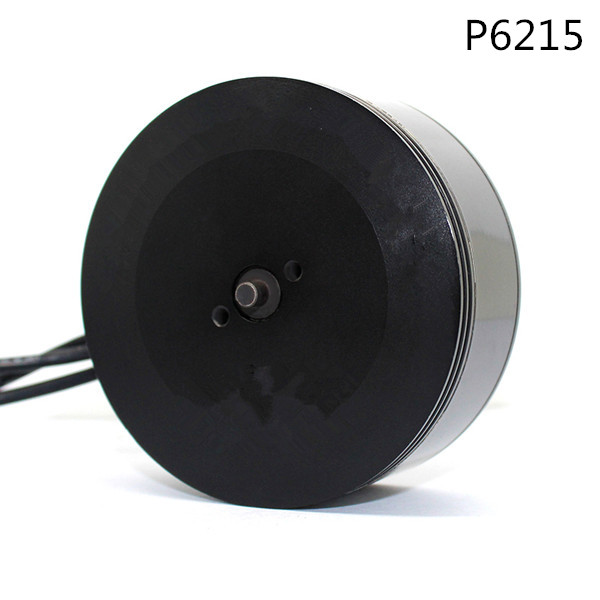

Agriculture drone motor P6215
|
Model |
Volts(V) |
Prop |
Amps(A) |
Thrust(gf) |
Watts(W) |
Efficiency(G/W) |
Temperature |
|
P6215-175KV |
45V/12S |
21*70 |
7.2 |
2860 |
320 |
8.95 |
64℃ |
|
13.2 |
4400 |
586 |
7.51 |
||||
|
21.2 |
6280 |
941 |
6.67 |
||||
|
37.6 |
8880 |
1669 |
5.32 |
||||
|
37.8 |
9050 |
1678 |
5.39 |
||||
|
22*75 |
7.8 |
3170 |
346 |
9.15 |
71℃ |
||
|
14.2 |
4710 |
630 |
7.47 |
||||
|
22.6 |
6570 |
1003 |
6.55 |
||||
|
40.7 |
9310 |
1807 |
5.15 |
||||
|
40.5 |
9460 |
1798 |
5.26 |
Agriculture drone motor P7115
|
Model |
Volts(V) |
Prop |
Amps(A) |
Thrust(gf) |
Watts(W) |
Efficiency(G/W) |
Temperature |
|
P7115-135KV |
45V/12S |
26*80 |
6.6 |
2950 |
293 |
10.07 |
64℃ |
|
14.5 |
5190 |
644 |
8.06 |
||||
|
26.8 |
7940 |
1190 |
6.67 |
||||
|
41.3 |
10520 |
1834 |
5.74 |
||||
|
42.1 |
10850 |
1869 |
5.80 |
||||
|
26*85 |
6.7 |
3140 |
297 |
10.56 |
75℃ |
||
|
14.8 |
5380 |
657 |
8.19 |
||||
|
26.8 |
8200 |
1190 |
6.89 |
||||
|
41.1 |
10520 |
1825 |
5.76 |
||||
|
41.9 |
10930 |
1860 |
5.88 |
Agriculture drone motor P8320
|
Model |
Volts(V) |
Prop |
Amps(A) |
Thrust(gf) |
Watts(W) |
Efficiency(G/W) |
Temperature |
|
P8320-120KV |
45V/12S |
30*95 |
12.5 |
5460 |
555 |
9.84 |
76℃ |
|
20.1 |
7510 |
892 |
8.42 |
||||
|
32.1 |
10280 |
1425 |
7.21 |
||||
|
45.4 |
12950 |
2016 |
6.42 |
||||
|
66.5 |
17140 |
2953 |
5.81 |
||||
|
30*80 |
12.7 |
5270 |
564 |
9.35 |
60.5℃ |
||
|
19.5 |
7110 |
866 |
8.21 |
||||
|
33.2 |
10280 |
1474 |
6.97 |
||||
|
46.1 |
12740 |
2047 |
6.22 |
||||
|
67.2 |
16620 |
2984 |
5.57 |
