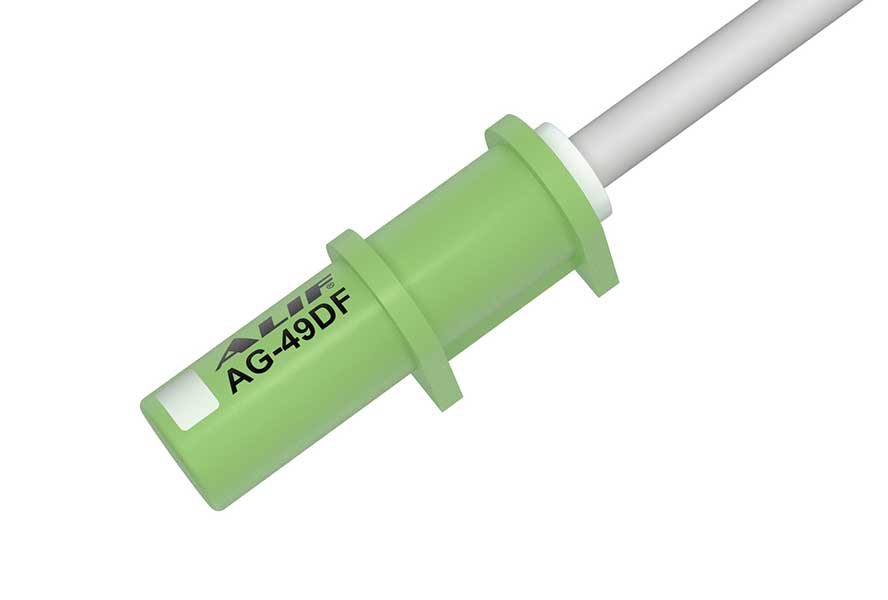

AG-49 Magnetic Cylinder Sensor
AG-49 series magnetic sensor
AG-49 series is the star product of ALIF sensor, which has been deeply loved by customers since its launch. The matching clamp can be used for standard cylinders such as tie rod, meter type, round, etc. The patented design makes it more suitable for the cylinder surface, and has the characteristics of convenient debugging and not loosening after installation; high versatility also greatly reduces the pressure of inventory .
Specification of AG-49 Magnetic Hydraulic Cylinder Linear Position Sensor
|
Model |
AG-49DF |
AG-49N |
AG-49P |
|
Switching Logic |
Normally Open |
Solid State Output, Normally Open |
|
|
Output Type |
2 Wire Solid State |
NPN Current Sinking |
PNP Current Sinking |
|
Voltage Range |
10～30V DC |
5～30V DC |
|
|
Sensor Current |
1～50 mA |
0～200 mA |
|
|
Switch Rating |
1.5 W Max. |
6 W Max. |
|
|
Consumption |
/ |
3 mA Max.@24V |
|
|
Voltage Drop |
2.65V Max.@50mA DC |
0.5V Max.@200mA DC |
|
|
Leakage Current |
90 μA Max.@28V |
0.01 mA Max. |
|
|
Indicator |
Red LED |
Red LED |
Green LED |
|
Cable |
Φ3.3, 2C, Black Oil-Resistant PVC |
Φ3.3, 3C, Black Oil-Resistant PVC |
|
|
Sensitivity |
60～800 Gauss |
60～800 Gauss |
|
|
Sensor Frequency |
900Hz |
900Hz |
|
|
Temperature |
-10～70℃ |
-10～70℃ |
|
|
Shock |
50G |
50G |
|
|
Vibration |
9G |
9G |
|
|
Ingress Protection |
IP68 (BJ-R200810105A-03) |
IP68 (BJ-R200810105A-03) |
|
|
Protection Circuit |
Surge Suppression |
Power Reverse Polarity; Surge Suppression |
|
|
CE Certificate NO. |
E8A 17 04 53334 007 |
E8A 17 04 53334 008 |
|
|
CNEx Certificate NO. |
CNEx21.2238X |
CNEx21.2239X |
|
|
RoHS2.0 NO. |
RoHS 2011/65/EU & (EU) 2015/863 |
||
|
Reach NO. |
(EC) N 1907/2006 (REACH) |
||
If you want to know more kinds of pneumatic cylinder sensors, please visit our website.
