ADW300

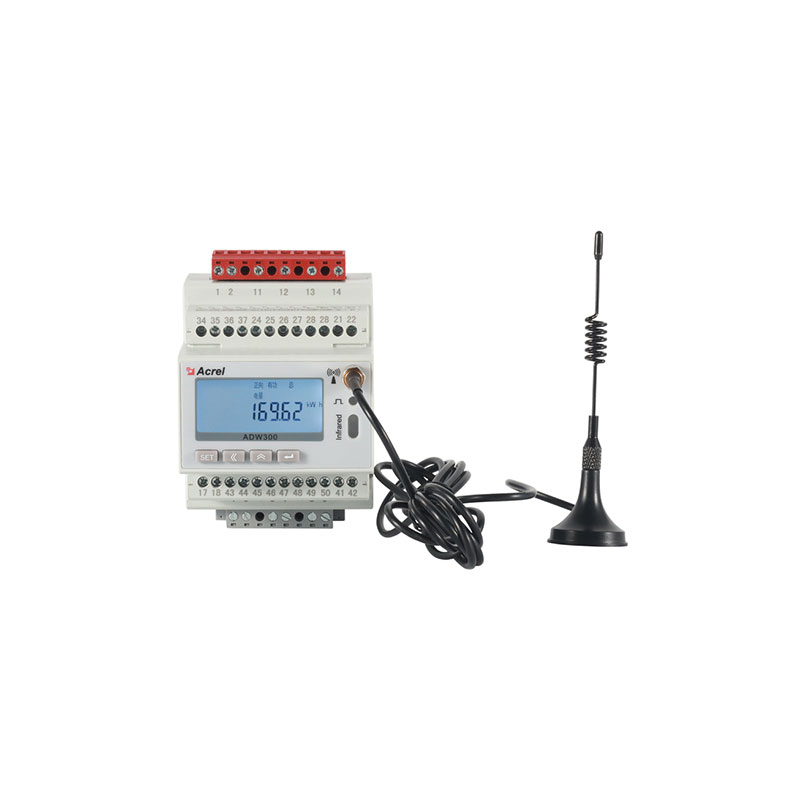

Acrel adw300 wireless smart energy meter is of one the most excellent wireless energy monitor for smart meters to meet different needs. Acrel ADW300 three phase power meter wireless, which featured as wifi smart meter is equiped with RS485/Lora/GPRS/4G/Wifi.
Technical Parameter ADW300
|
Input voltage |
3×220/380V 3×380/660V，3×100V, 3×380V，3×660V |
|
Input current |
3×1(6)A |
|
Frequency |
50Hz |
|
Accuracy |
class 0.5s |
|
Basic function |
measure U、I、P、Q、SP、F、Hz |
|
power demand and real-time current |
|
|
2~31st voltage and current harmonic |
|
|
Optional function |
/C: RS485(Modbus-RTU) |
|
/K: 4DI/2DO |
|
|
/T: four-way temperature measurement |
|
|
/L : 1 channel residual current |
|
|
/LR: LoRa wireless communication |
|
|
/4G: 4G communication |
|
|
/WF: WIFI communication |
|
|
333mV access |
|
|
Rogowski coil (200mV) access |
|
|
Power supply |
AC85-265V, AC380V, DC24V |
|
Dimension |
93*72*88mm |
|
Weight |
0.3kg |
If you want to buy wireless energy meter, please contact us.
