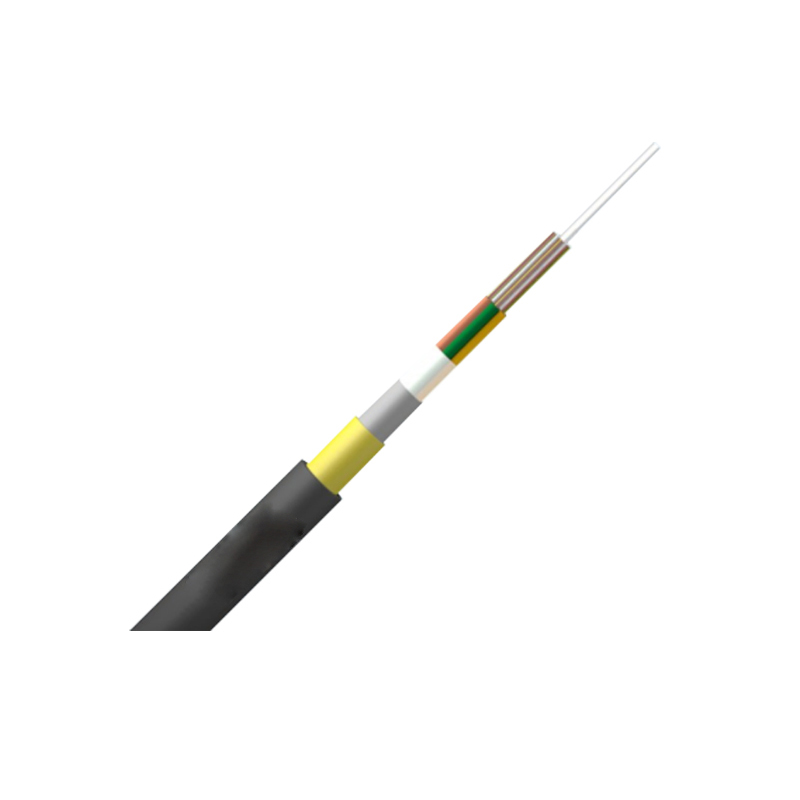

ADSS Fiber Optic Cable
Fiber Optic ADSS Cable is known as all dielectric self-supporting optical cable. Self-supporting ensures that the adss fiber optic cable has sufficient mechanical strength. The adss fiber cable applies all dielectric material to withstand the impact of strong electricity in a high voltage and strong current environment.
As one of the professional fiber optic accessories suppliers, TUOLIMA can customize the self supporting fiber optic cable adss according to your requirements. If you need any technical support, we will also recommend the most suitable and cost-effective customized adss kabel for you according to the use environment, laying method and terminal customer requirements of the optical cable. Our adss wire and cable can be applied in many areas, for example use the adss aerial fiber optic cable in aerial industry.
Specification of ADSS Fiber Optic Cable
|
Mechanical characteristic and test method |
||
|
Tensile strength |
conform to IEEEC standard P 1222---1995 |
|
|
Crush |
conform to IEC 794-1-E3 |
|
|
Impact |
conform to IEC 794-1-E4 |
|
|
Repeated bending |
conform to IEC 794-1-E6 |
|
|
Torsion |
conform to IEC 794-1-E7 |
|
|
Flexing |
conform to IEC 794-1-E8 |
|
|
Cable bend |
conform to IEC 794-1-E11 |
|
|
Water |
conform to IEC 794-1-F5B |
|
|
Color coding |
conform to EIA/TIA 598 |
|
|
Temperature requirement |
operation: Installation |
- 40 C~ +60 C - 10 C ~ +60 C |
|
storage/transportation |
- 40 C ~ +60 C |
|
|
Temperature cycling test |
conform to IEC 794-1-F1 |
|
|
Bending Radius |
unloaded |
15 times of outer diameter |
|
loaded |
25 times of outer diameter |
|
Characteristics of ADSS Fiber Optic Cable
|
Fiber Material |
G652D |
|
Mode field diameter (1310nm): |
9.2um±0.4um |
|
Mode field diameter (1550nm): |
10.4um±0.8um |
|
Cladding diameter: |
125um±1.0um |
|
Cut off wavelength of cabled fiber (ℷcc): |
≤1260nm |
|
Attenuation at 1310nm: |
≤0.36dB/km |
|
Attenuation at 1550nm: |
≤0.22dB/km |
|
Bending loss at 1550nm (100 turns, 30mm radius): |
≤0.05dB |
|
Dispersion in the range 1288 to 1339nm: |
≤3.5ps/(nm•km) |
|
Dispersion at 1550nm: |
≤18ps/(nm•km) |
|
Dispersion slope at zero dispersion wavelength: |
≤0.092ps/(nm2•km) |
Details of ADSS Fiber Optic Cable
|
SN |
Item |
Unit |
Value |
|
1 |
No. of fibers |
count |
12~288 |
|
2 |
Number of fibers per tube(max) |
count |
4 |
|
3 |
Number of elements |
count |
6 |
|
4 |
Cable diameter |
mm |
12.1 |
|
5 |
Cable weight |
kg/km |
121 |
|
6 |
Max allowed operating tension |
N |
5000 |
|
7 |
Short term crush |
N/100mm |
2200 |
|
8 |
Max span with 1.0% installation sag |
m |
100 |
Advantages of ADSS Cable
- Uninterruptible power supply
- Adopt PE/AT sheath, excellent resistance to erosion
- Small cable diameter and lightweight help reduce the impact of ice, wind, and load on towers
- Large span, maximum span≥ 1000 meters
- Great tensile strength and high/low-temperature resistance
- Service life is expected over 30 years
Packing and Comments of ADSS Fiber Optic Cable
- Packing material: Non-returnable wooden drum.
Both ends of the outdoor optical cable are securely fastened to the drum and sealed with a shrinkable cap to prevent ingress of moisture.
- Cable printing: The sequential number of the cable length shall be marked on the outer sheath of the cable at an interval of 1meter ± 1%.
The following information shall be marked on the outer sheath of the cable at an interval of about 1 meter.
Cable type and number of optical fiber
Manufacturer name
Month and Year of Manufacture
Cable length
- Drum marking: Each side of every wooden drum shall be permanently marked in a minimum of 2.5~3 cm high lettering with the following:
Manufacture name and logo
Cable length
Fiber optic cable types and number of fibers
Rollway
Gross and net weight
TUOLIMA is a professional fiber optic products supplier, we provide indoor fiber optic cable, outdoor fiber optic cable and etc. Want to know more? Please contact us.
