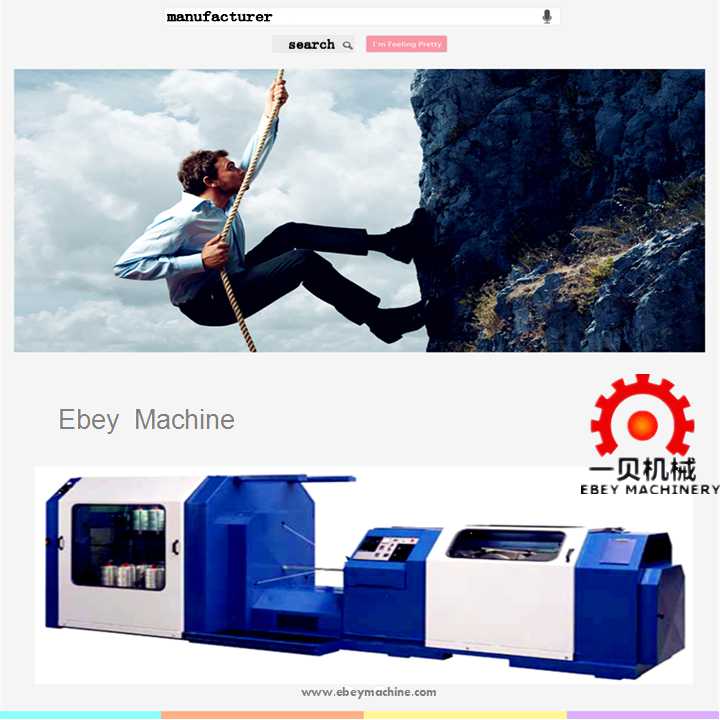

ACS-M55 Rope making machine

Quantité : 20 per mon   Prix : USD10000~50000/set

Performance and Characteristics:

1.Natural or man-made fibre all can be used in this machine for making rope.

2.It can produce coils length from 440-4890m.

3.It can produce or process the three-strand and four-strand ropes.

4.The machine can do twisting into multi-strand and rope making in one time.

5.High production speed , extremely high output.

Main features:

Notice: Our Pay-off shaft can be adjusted into different type in order to suitable for different size and number Pay-off bobbins.

1. Hydraulic tension system

2.Increasing take-up capacity

3.Double-twist per rotary, two for one twisting

4.Constant tension for rewinding system

5.Lightweight rotating arm part

6.Frequency drive

7.PLC and touch-screen control

8.Low noise level

9.It's high-efficient and energy economical.

10.The structure and processing are designed terse ,friendly and can be used flexibly and conveniently with steady and safe in motion.

11.It's CNC control system which can adjust the strand making and rope twisting without stop machine, easy operation.

12.Pre-twist factor and rope twist can be adjusted and synchronized by three-motors under electrical control system.

Key features:

PLC COMBINED SYNCHRONIZATIONG CONTROL SYSTEM FOR TWIST

Graphic The system has friendly Graphic interface, safe and reliable communication,easy to operate.

Digital twist can be randomly set.

PLC computer system, function is more stable, adjustment any parameters not need stop machine.

Segmented design with three independently driven:Strand;twisting;draw can be independently controlled.

Adopt synchronous belt to convey, correct transmission ratio and le noise.

The design of cycle simulation program adopts integrated module method.

Structure design of appropriative traction power,Electronic brake system applied, easy to operate and maintain.

Design of Adjustable winder

Winder setting automation for Product Length

Fault and operational status display of Graphic, sound and light alarm.

Technical features:

Rope range

4-16mm

Flyer speed

0-max.900 rpm, depending on pre-twist factor

Rope Lay

S and z

Twists per minute

2 x rope flyer speed

Lay Length

12-66mm/82-15 twists per meter;

Pre-twist factor

0.43-2.55 x rope twist

Take-up, coiling head:

Ø 480 mm, adjustable traverse max. 345 mm, barrel Ø135 mm

Take-up, max. weight

Polypropylene  40 kg

Pay-off packages:

M55/3

M55/4

3 x 10, max. Ø250 x 300 mm traverse

4 x 10, max. Ø250 x 300 mm traverse

Localisation : No.8,Zhenjiang Road,Industry area,Longwan district,Wenzhou city, 345401 Aojiang,
Personne à contacter : Shawn Xiao, 0086 18858833378
