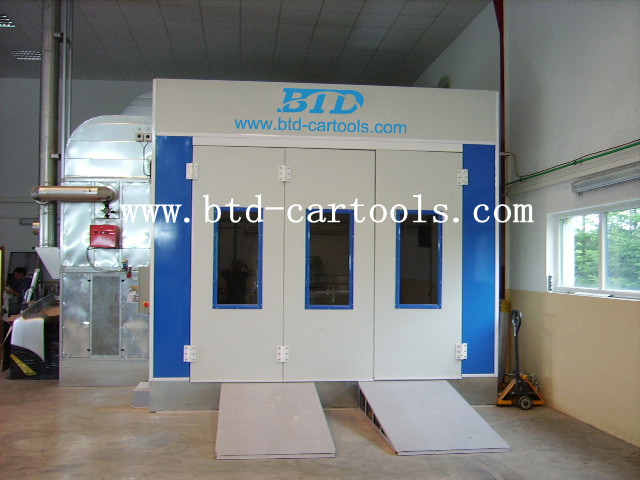

Spray booth BTD7400

Quantité : 1   Prix : 1,00 €

Outside Size: (mm) 7010 x 5570 x 3810 mm (L x W x H) Inside Size(mm) 6900 x 4000 x 2800 mm (L x W x H)
Foundation and Floor Foundation Full metal foundation, two rows flat steel grids and three rows metal non-slip diamond plates, the grids are suppressive type of steel grating instead of traditional twisted steel for the cross bar steel grating. The biggest features for it are beautiful, durable and better force bearing.
Surface area of foundation 10M²(area of grids)
Metal basement 350mm height, the ventilation effect is better than traditional spray booth
Drive-in Ramps 2Units, each size: 2000X1030mm, diamond plate construction
Wall and door Wallboard and Roof Panel Adopt high quality double construction fireproof insulation EPS panel, thickness: 50mm
3-Folded Entrance Door With Safety Glass Window 1 set, size: 3200x2700 mm(B x H),size is bigger than traditional spray booth

-Operator's Door WithSafety Glass Window Big opening:800x2000mm (B x H),hand-made, tempering glass observation window


Light System Ceiling Lighting 8Units, each4×36W, Total 1152W, grade of lighting box's dustproof and waterproof reach IP54 grade.
Side Lighting 8Units, each2×36W, Total 576W, grade of lighting box's dustproof and waterproof reach IP54 grade.
Brightness ≥1000 LUX
Filtration System Pre-filters Grade G2 plate type fiber glass filter
Ceiling Filters EU5 grade high efficient filter
Bottom filter & exhaust filter Fibreglass paint-stop filter
Ventilation System Inlet fan (Direct drive motor) Adopt big impeller turbo fan 7.5KW ,380V,50HZ,CE
Outlet fan (Direct drive motor) Adopt big impeller turbo fan 5.5KW ,380V,50HZ,CE
Painting and baking exchange system Solenoid valve+ pressure adjustment control cylinder driven damper exchange
Total fan Capacity 25,000m³/h
Air Flow Speed in cabin 0. 23m/s in empty booth , 0.25-0.35m/s in loaded booth
Heating System Heating Exchanger Adopt high efficient heat-resistant stainless steel as cycling heat exchanger
Heating Exchange Capacity 160KW(180,000Kcal/H)
Burner Model Adopt Italy RIELLO diesel burner G20(180,000kcal/H)
Heating time 4-6minutes (from20 to 60ºС) under baking status, max baking temperature is 80°C
Control Board Control system Standard Y/Δ step-down start control system
Function Painting, warm painting, baking, lighting, emergency stop switch, failure indication, over-temperature alarm indication

Localisation : Mazha,Liusha,Puning,Guangdong,China, 515300 Liusha,
Personne à contacter : Irene Chen, 866638363111
