Pro / B2B

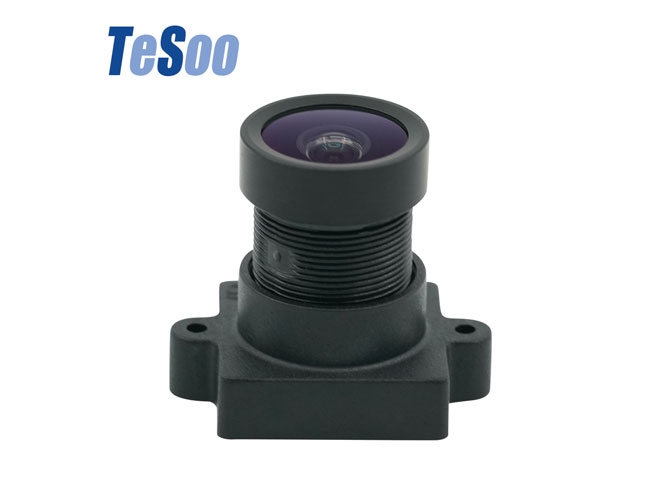

M12 Camera Lens
|
PART No. |
TS-2721O-A00 |
|
TTL |
21.15mm |
|
EFL |
2.90mm |
|
F/NO |
2.2 |
|
MBFL |
5.30mm |
|
SENSOR SIZE |
1/3'' |
1/2.7'' |
FOV |
FOV |
|
(D) |
132° |
148° |
(H) |
116° |
122° |
(V) |
60° |
64° |
TV-DISTORTION |
<-22% |
<-30% |
MAX IMAGE CIRCLE |
φ6.90mm |
|
Mount |
M12*0.5 |
|
CONSTRUCTION |
2G3P+Plastic |
|
DIAMENSIONS |
φ14*15.85 |
|
Operating temp. |
-20 ~ +75℃ |
|
Storage temp. |
-25 ~ +80℃ |
PART No. |
TS-2723N-B00 |
|
TTL |
22.2mm |
|
EFL |
3.20mm |
|
F/NO |
1.6 |
|
MBFL |
5.35mm |
|
SENSOR SIZE |
1/3'' |
1/2.7'' |
FOV |
FOV |
|
(D) |
120° |
134° |
(H) |
103° |
112° |
(V) |
55° |
59° |
TV-DISTORTION |
<-16% |
<-19% |
MAX IMAGE CIRCLE |
φ7.0mm |
|
Mount |
M12*0.5 |
|
CONSTRUCTION |
4E+Plastic |
|
DIAMENSIONS |
φ14*16.85 |
|
Operating temp. |
-20 ~ +75℃ |
|
Storage temp. |
-25 ~ +80℃ |
PART No. |
TS-2316Q-A00 |
|
TTL |
15.89mm |
|
EFL |
2.95mm |
|
F/NO |
2.0 |
|
MBFL |
2.88mm |
|
SENSOR SIZE |
1/2.5'' |
1/2.3'' |
FOV |
FOV |
|
(D) |
143° |
168° |
(H) |
125° |
126° |
(V) |
69° |
92° |
TV-DISTORTION |
<-33% |
<-40% |
MAX IMAGE CIRCLE |
φ8.20mm |
|
Mount |
M12*0.5 |
|
CONSTRUCTION |
4G3P+Metal |
|
DIAMENSIONS |
φ14*13.01 |
|
Operating temp. |
-20 ~ +75℃ |
|
Storage temp. |
-25 ~ +80℃ |
PART No. |
TS-2323O-A17 |
|
TTL |
23mm |
|
EFL |
3.20mm |
|
F/NO |
1.8 |
|
MBFL |
5.91mm |
|
SENSOR SIZE |
1/2.5'' |
1/2.3'' |
FOV |
FOV |
|
(D) |
136° |
152° |
(H) |
116° |
117° |
(V) |
65° |
86° |
TV-DISTORTION |
<-25% |
<-35% |
MAX IMAGE CIRCLE |
φ8.20mm |
|
Mount |
M12*0.5 |
|
CONSTRUCTION |
All Glass +Metal |
|
DIAMENSIONS |
φ17*17.09 |
|
Operating temp. |
-40 ~ +85℃ |
|
Storage temp. |
-40 ~ +90℃ |
PART No. |
TS-2316M-A00 |
|
TTL |
15.91mm |
|
EFL |
3.65mm |
|
F/NO |
2.0 |
|
MBFL |
3.68mm |
|
SENSOR SIZE |
1/2.5'' |
1/2.3'' |
FOV |
FOV |
|
(D) |
132° |
148° |
(H) |
110° |
112° |
(V) |
58° |
76° |
TV-DISTORTION |
<-28% |
<-35% |
MAX IMAGE CIRCLE |
φ8.20mm |
|
Mount |
M12*0.5 |
|
CONSTRUCTION |
All Glass +Metal |
|
DIAMENSIONS |
φ14*12.23 |
|
Operating temp. |
-40 ~ +85℃ |
|
Storage temp. |
-40 ~ +90℃ |
PART No. |
TS-1823N-A00 |
|
TTL |
23mm |
|
EFL |
4.0mm |
|
F/NO |
2.8 |
|
MBFL |
5.93mm |
|
SENSOR SIZE |
1/2.3'' |
1/1.8'' |
FOV |
FOV |
|
(D) |
118° |
135° |
(H) |
93° |
110° |
(V) |
69° |
73° |
TV-DISTORTION |
<-20% |
<-25% |
MAX IMAGE CIRCLE |
φ10.2mm |
|
Mount |
M12*0.5 |
|
CONSTRUCTION |
All Glass +Metal |
|
DIAMENSIONS |
φ14*17.07 |
|
Operating temp. |
-40 ~ +85℃ |
|
Storage temp. |
-40 ~ +90℃ |
PART No. |
TS-1825I-A20 |
|
TTL |
25.3mm |
|
EFL |
4.20mm |
|
F/NO |
2.8 |
|
MBFL |
2.21mm |
|
SENSOR SIZE |
1/2.3'' |
1/1.8'' |
FOV |
FOV |
|
(D) |
78° |
93° |
(H) |
68° |
81° |
(V) |
55° |
65° |
TV-DISTORTION |
<-0.3% |
<-0.5% |
MAX IMAGE CIRCLE |
φ9.60mm |
|
Mount |
M12*0.5 |
|
CONSTRUCTION |
All Glass +Metal |
|
DIAMENSIONS |
φ20*23.09 |
|
Operating temp. |
-20 ~ +80℃ |
|
Storage temp. |
-40 ~ +90℃ |
PART No. |
TS-2322H-A00 |
|
TTL |
22mm |
|
EFL |
4.28mm |
|
F/NO |
2.2 |
|
MBFL |
2.55mm |
|
SENSOR SIZE |
1/2.5'' |
1/2.3'' |
FOV |
FOV |
|
(D) |
78° |
82° |
(H) |
66° |
69° |
(V) |
36° |
55° |
TV-DISTORTION |
<-1% |
<-1.5% |
MAX IMAGE CIRCLE |
φ8.30mm |
|
Mount |
M12*0.5 |
|
CONSTRUCTION |
4G2P+Metal |
|
DIAMENSIONS |
φ14*19.45 |
|
